AEQ Audio Over IP
Routing System
136
A7.2. Configuration of CISCO switches for AEQ AoIP systems.
AEQ can provide properly configured CISCO SG200 switches on demand. If the switch from a
third party, you must set it up according to the following procedure.
Although PoE+ switches of the 300 and 350 series are suggested, the configuration procedure
for those series is similar to the following one for the 200 series.
Configuration procedure for the Cisco SG200 family of switches for use with DANTE technology
1. Change the IP address of the computer used to configure the switch, so it falls in the
192.168.1.xxx range.

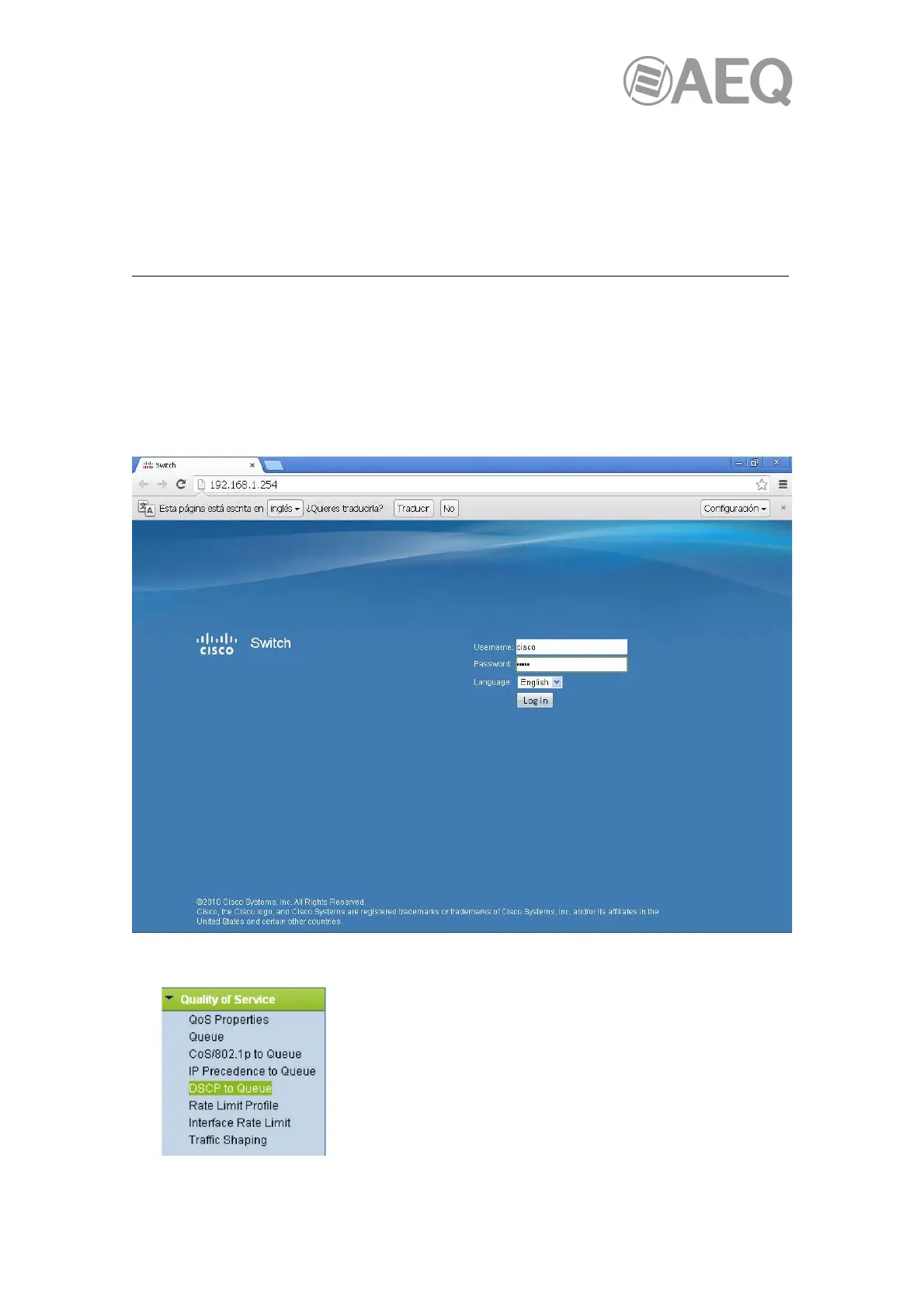

2. Using an Internet browser, type the address 192.168.1.254 in the URL bar and then type:
User: cisco
Password: cisco
You will be asked to change the password the first time you access the switch configuration.
3. Go to section Quality of Service DSCP to Queue:
