AEQ XPEAK
IP Intercom System
45
The fields that appear are:
- MAC address of the terminal.
- SSID: Public name of the Wi-Fi network the terminal is connected to.
- IP address of the terminal.
- Str/rate: Power level of the received signal and maximum speed of communication with
access point.
- BSSID: MAC address of the access point the terminal is connected to.
- Freq: Frequency of the Wi-Fi channel in which we are working.
- Cypher: Security algorithm being used.
- Bcast: Network broadcast address. This data is important in EasyNET modes if BS3000
and BP3000 units are used (this data is necessary to configure them).
- Conn: Internet and VPN connection indication: when the device does not have an
Internet connection "---" appears, when it has an Internet connection "Internet" appears
and when it's connected to VPN "VPN" appears.

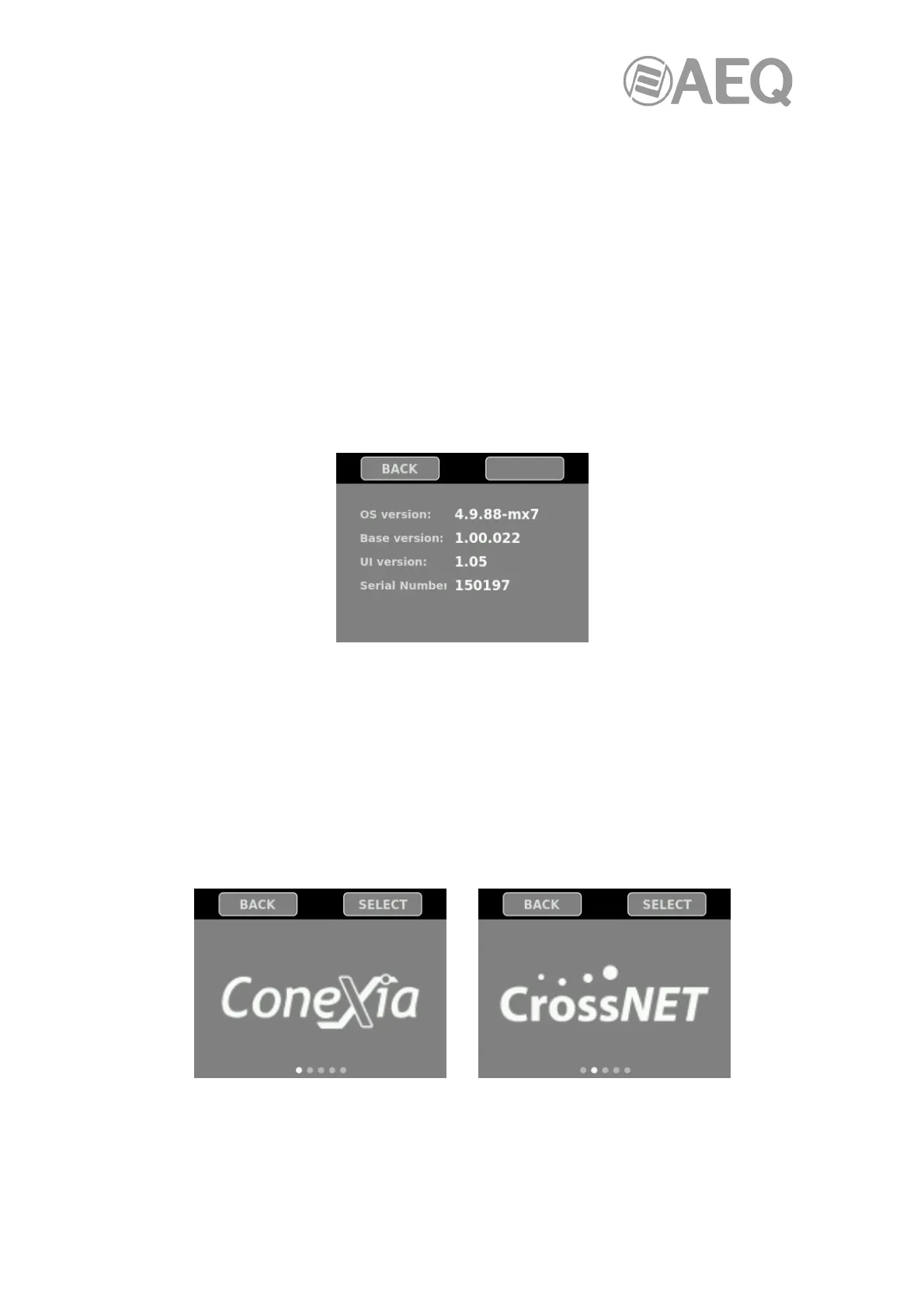

• Version: Allows us to check the operative system version, the firmware version, the user
interface version and the serial number.
3.3.6. Menu differences in other operating modes.
3.3.6.1. All modes except Xpeak.
Xpeak mode is the only one that supports families characterized by a color, so that in the rest of
operating modes the family indicators don't appear on the display.
3.3.6.2. Conexia and CrossNET modes.
In these modes, operation using a matrix means that specific options are defined in the
CrossMapper software for general system configuration.
When in these operating modes, the first menu shows four specific functions associated to keys
1 to 4:
