AEQ XPEAK
IP Intercom System
8
o EasyNET mode: The new panels and beltpacks turn into EasyNET Party-Line
panels, which are compatible with the current ones and with Xplorer. Audio
quality is Kroma G711.

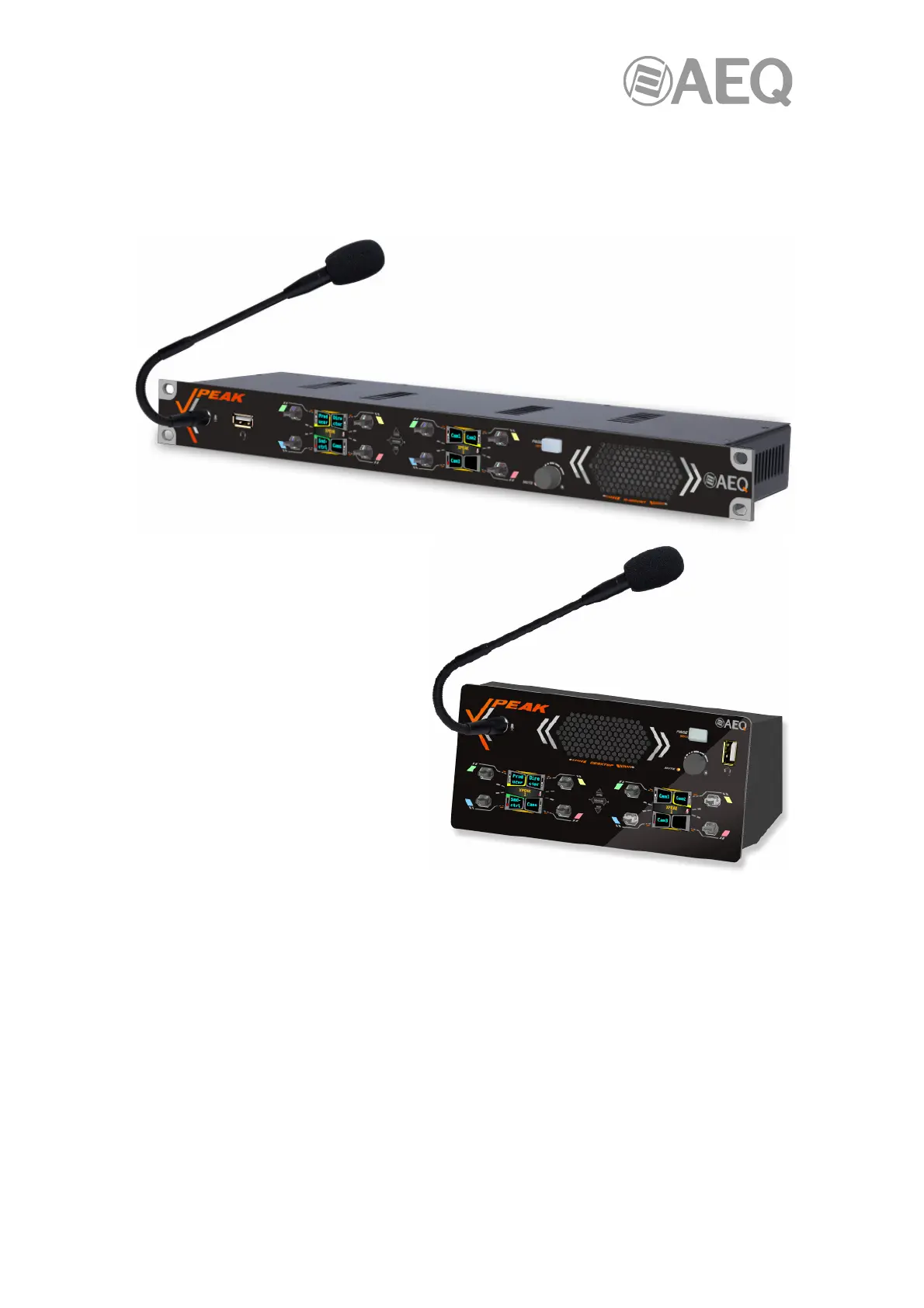

1.2. Xpeak_R and Xpeak_D user panels description.
Ergonomics:
• 8 x 4-way cross-point levers with
associated RGB LED.
• 2 screens for menu and
contextual information
associated with the levers.
• Rotary encoder, menu key and
signaling LEDs.
• Internal power supply.
• Internal 1Gbps Ethernet switch,
with two external RJ45 network
ports to connect panels in "Daisy
Chain" to a single switch port.
• GPIOs: 10-pin mini-Hartmann
connector includes 2 opto-
coupled GPIs and 2 GPOs, one
external circuit power pin, and
ground.
• Bluetooth: The equipment incorporates a Bluetooth connection as an audio interface
with a telephone or headset.
• Front audio:
o Gooseneck electret microphone supplied with the panel.
o Internal speaker that develops 84dB SPL @ 1 m.
• USB Audio:
o Front USB for headset.
o Rear USB Type B: To incorporate PC audio.
• Bluetooth audio: The equipment can be paired with a Bluetooth device, for example a
headset or a smartphone.
It combines audio signals that arrive at the equipment from the different devices.
Dimensions and weight:
• Xpeak_R: Front: 482.6 x 44.5 mm. Depth 103 mm. Weight: 1.87 Kg.
• Xpeak_D: Front: 217 x 105 mm. Depth 101 mm. Weight: 1.46 Kg.
