AEQ XPEAK
IP Intercom System
38

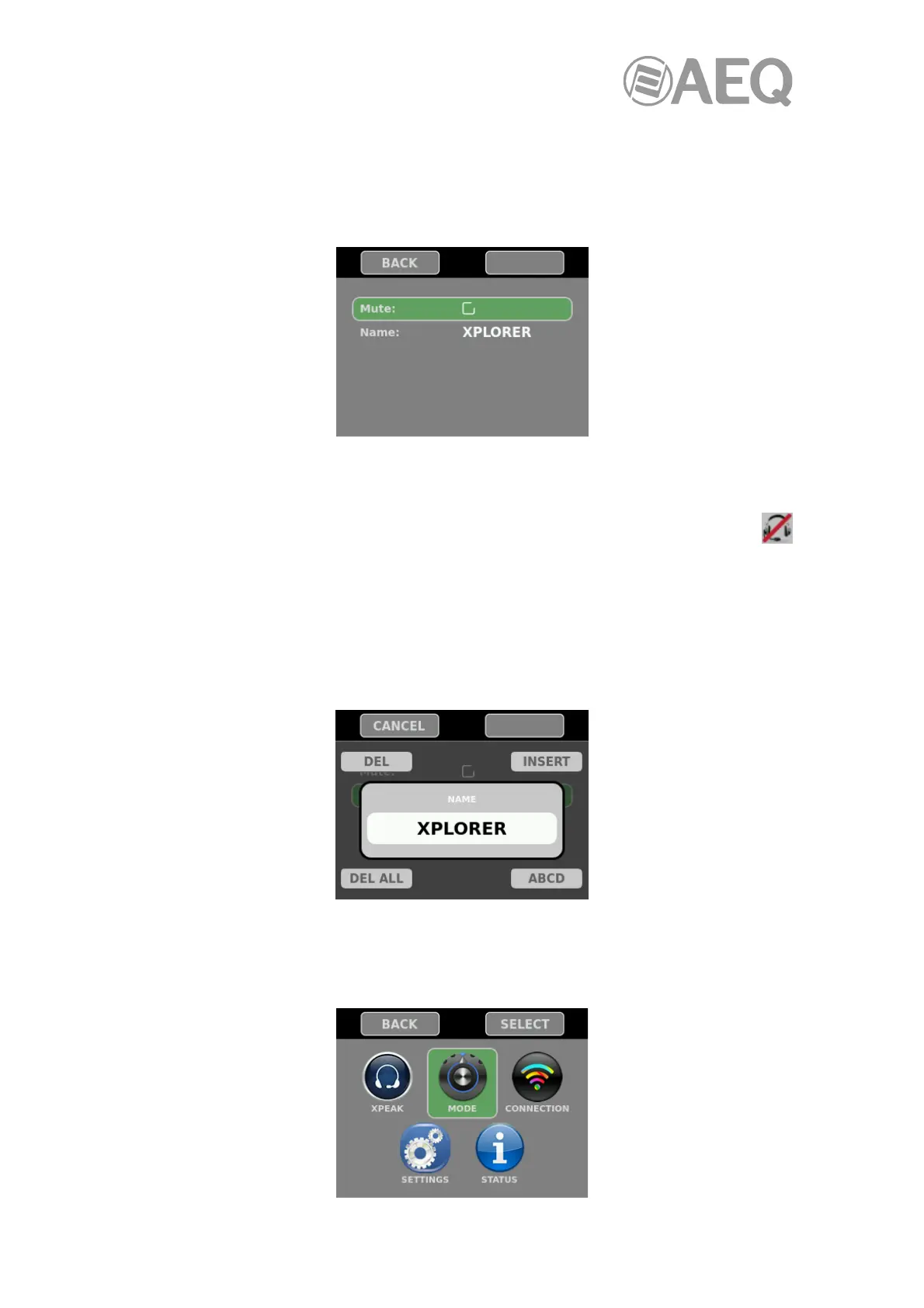

3.3.1. "XPEAK" menu.
This is the most used menu during operation as it shows very important functions for online
operation. When the "XPEAK" option is highlighted in green, by pressing the key labeled as
"SELECT" this first menu is accessed; this menu shows a different name depending on the
selected operating mode.
There are 2 options that are highlighted by turning any of the two encoders. By pressing the
"SELECT" key activate or enters the selected one.
• Mute: This option allows the user to mute or reactivate the microphone. While it is
muted, a micro-headphone icon with a red crossing bar appears, indicating its
inactivity. However headphones still remain active, so the configured conversations
can be heard.
• Name: Allows us to change the device’s name. It supports a maximum of 8 characters.
When accessing this option, the current name’s last character is selected. By turning any of
the two encoders, the character can be substituted by another. The keys 1 to 4 respectively
allow us to delete the last character ("DEL"), add a new character at the end ("INSERT"),
delete all characters ("DEL ALL") and switch between letters, numbers and special
characters ("ABCD"). The upper keys allows us to confirm or discard the changes.
3.3.2. "MODE" menu.
This is a configuration menu that allows us to select between the different beltpack operating
modes.
