o DHCP: Enables or disables automatic IP address configuration. When this menu
entry is highlighted, pressing the "SELECT" key checks or disables this option.

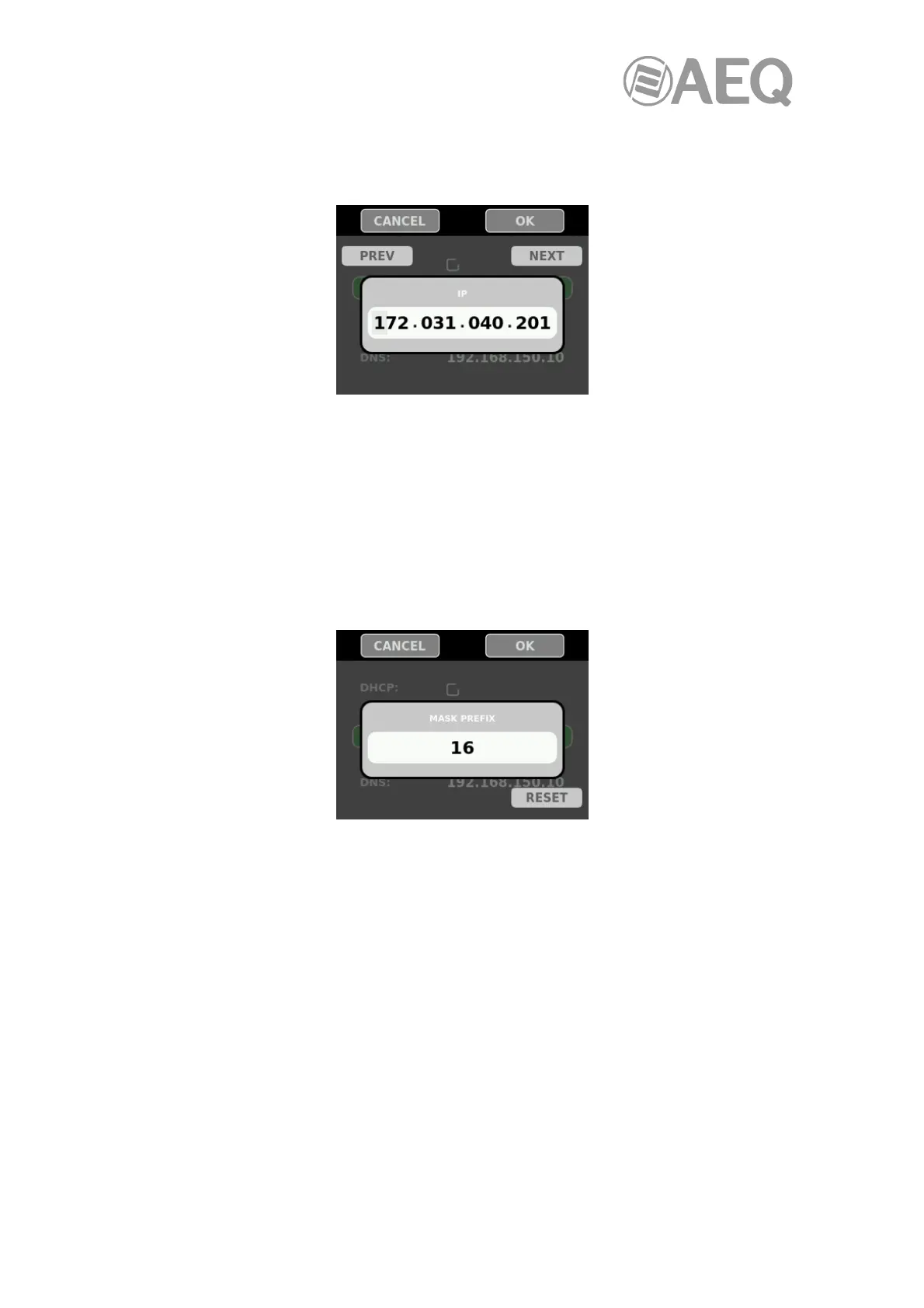

o IP: Allows us to modify the IP address of the beltpack.
When accessing this option, the first digit of the current IP address is selected. By
turning any of the two encoders, the number can be substituted by another.
Numbers from 0 to 9 can be chosen (the figure that can be configured in each octet
is limited between 0 and 255).
By pressing the key 2 ("NEXT") we can move to the next number in order to modify
it the same way. By pressing the key 1 ("PREV") we can move to the previous
number. Once modified, the new IP address must be confirmed by pressing "OK"
(or changes can be discarded by pressing "CANCEL").
o Mask prefix: Configures the mask of the subnet the beltpack is connected to. Its
max. length is 32 bits (up to 255.255.255.255).
By turning any of the two encoders, the number can be modified. By pressing the
key 4 ("RESET") you can return to the initial value.
If you are not used to this format, remember that:
24 bits is equivalent to mask 255.255.255.0
16 bits is equivalent to mask 255.255.0.0
8 bits is equivalent to mask 255.0.0.0
o Gateway: IP address of the gateway to external networks. It is configured just in
the same way as the beltpack’s IP address.
o DNS: IP address of the Domain Name Server to be used. It is configured just in the
same way as the beltpack’s IP address.
3.3.4. "SETTINGS" menu.
This is a configuration menu that allows us to define the operation of the display and the left and
right function keys.
