AEQ XPEAK
IP Intercom System
28

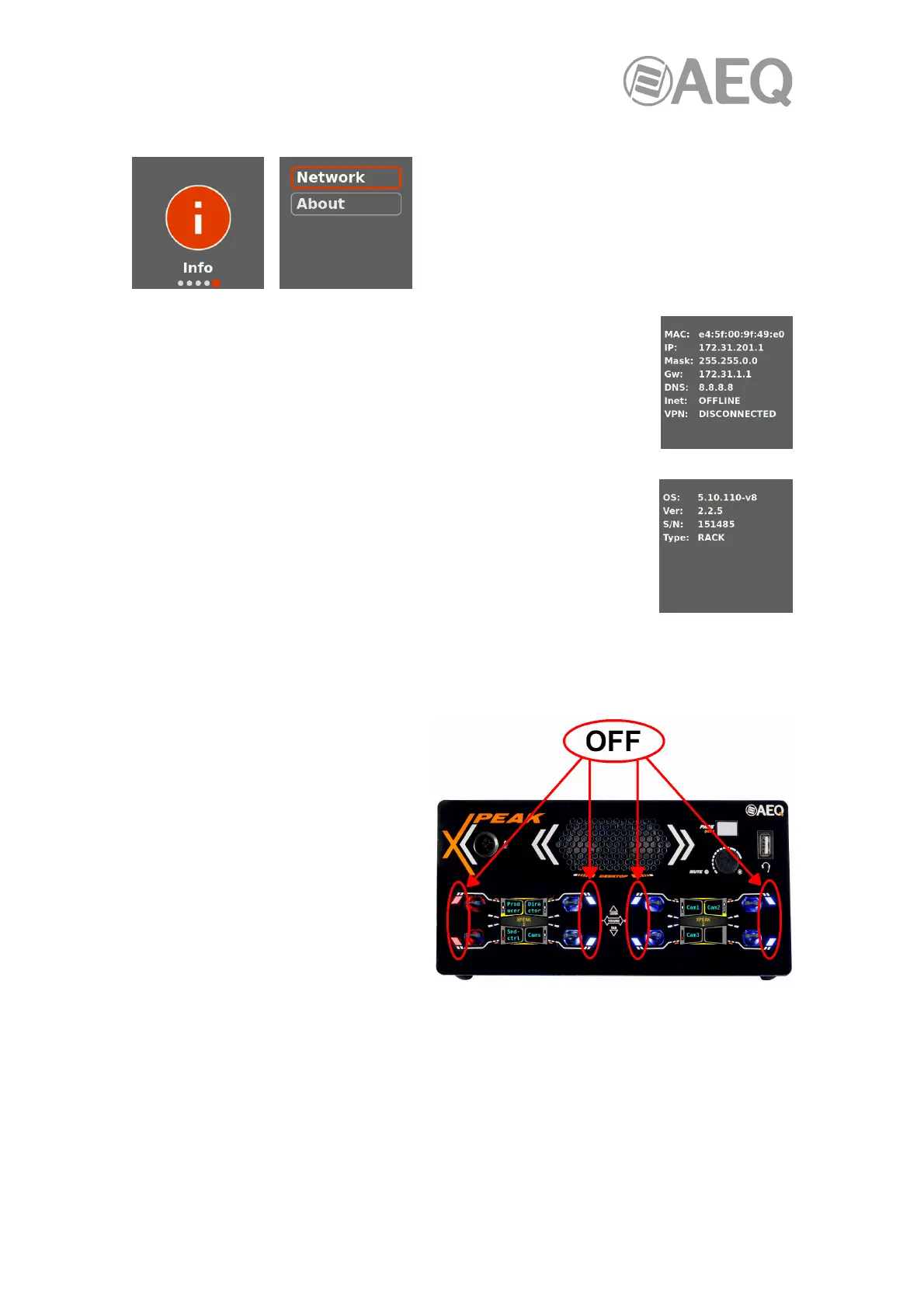

3.1.5. "Info" menu.
By pressing the encoder when the "Info" option is
visible on the screen, you enter this menu that allows
us to check the main configuration parameters of the
panel and that presents the following options:
• Network: Allows us to check the network configuration of the panel.
The fields that appear are: MAC address, IP address, mask, gateway
and DNS. In section 3.1.3 the way to configure all these parameters is
detailed.
In addition, the Inet (indicates if there is an Internet connection) and
VPN (indicates if the unit is connected to the AEQ VPN service) fields
appear.
• About: Allows us to check the operative system version, the firmware
version, the serial number and unit's type (RACK when it's a Xpeak_R
and DESKTOP when it's a Xpeak_D).
3.1.6. Menu differences in other operating modes.
3.1.6.1. All modes except Xpeak.
Xpeak mode is the only one that supports
families characterized by a defined color
of the LED associated to each 2-axis
lever. Thus, these LEDs don’t illuminate
in the rest of operating modes.
3.1.6.2. Conexia and CrossNET modes.
In these modes, operation using a matrix means that specific options are defined in the
CrossMapper software for general system configuration.
