AEQ XPEAK
IP Intercom System
88
5.2.4.7.2. Editing the GPIs of a device.

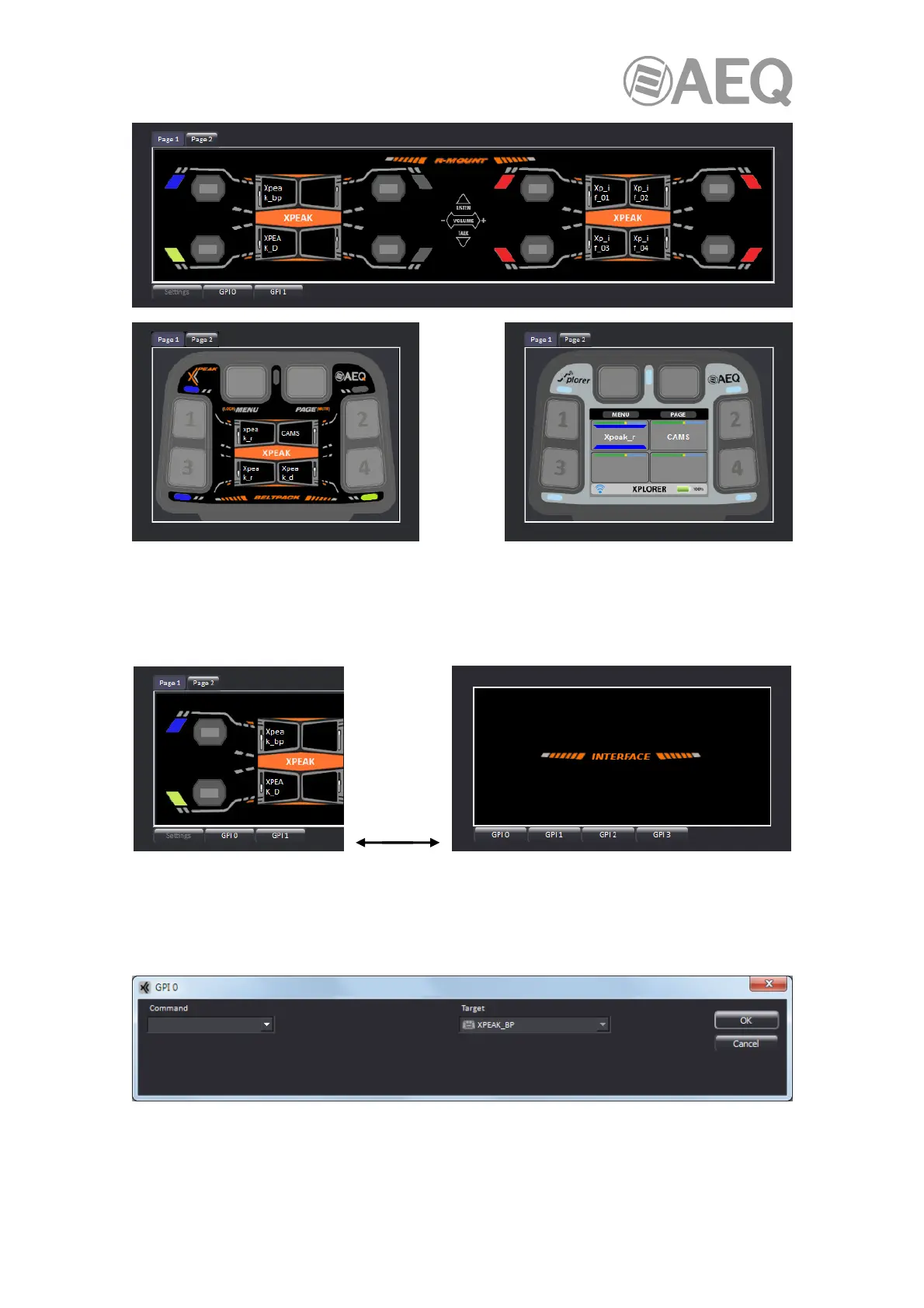

When a device is shown in the lower right quadrant, it's possible to configure its GPIs using the
tabs that appear at the bottom of the device:
Logically, these tabs only appear if the selected device is a Xpeak_R, a Xpeak_D or a
Xpeak_IF, since they are the only devices that have GPIs (2 in the case of the panels and 4 in
the case of the interface).
Pressing one of these tabs displays the window that allows you to configure the GPI:
Select the command to be executed when the corresponding GPI is activated on the device in
the "Command" drop-down menu. The available commands are the same as those detailed for
the buttons and, in the same way, depending on the selected command, different configuration
parameters may appear :
