AEQ XPEAK
IP Intercom System
46

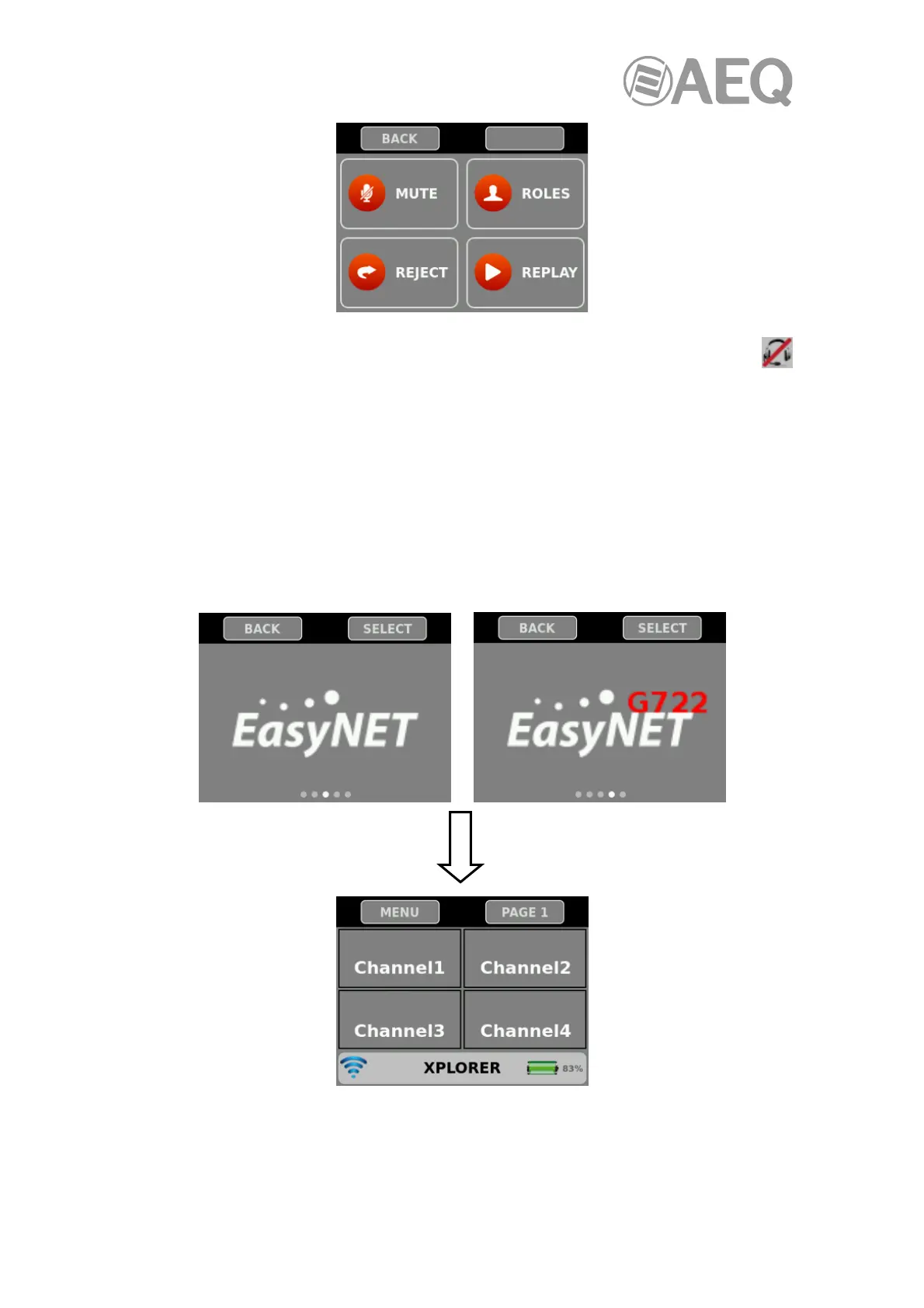

• MUTE: This option allows the user to mute or reactivate the microphone. While it is
muted, a micro-headphone icon with a red crossing bar appears, indicating its
inactivity. However headphones still remain active, so the configured conversations
can be heard.
• ROLES: Shows the list of the user roles that can be assigned to the unit (if they're
configured in the matrix and enabled in the unit) for the operator to select the desired one.
• REJECT: Rejects an incoming call.
• REPLAY: Reproduces the last received message in case it couldn’t be heard properly first
time or maybe the user didn’t pay attention to it.
3.3.6.3. EasyNET and EasyNET G722 modes.
They are 4-channel Party-Line modes, so in operating mode there are only 4 active keys.
