AERMEC VMF-485LINK - Connecting the VMF-485 LINK with FCWI Units; Phase 1: Electrical Connections for FCWI

18
EN
GND GND

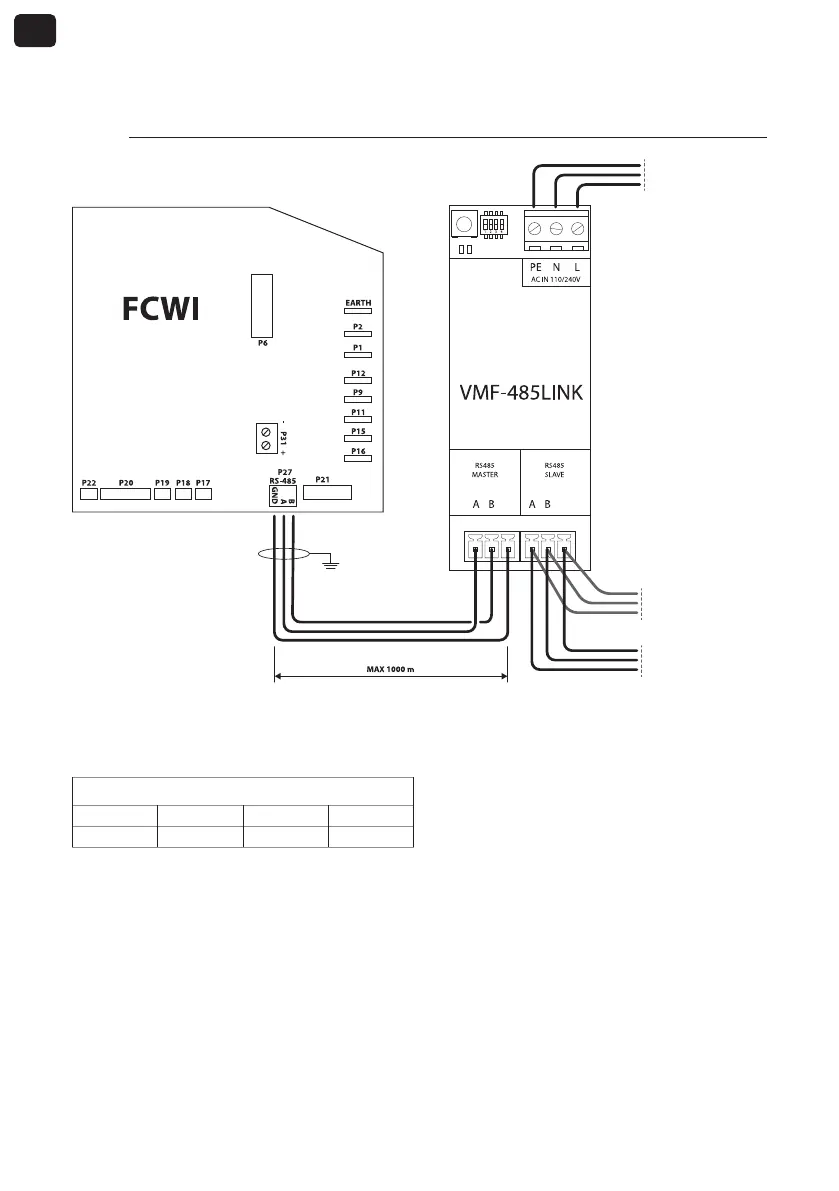

3. CONNECTION WITH FCWI
3.1. PHASE 1 - Electrical connections
Previous node
VMF network
Subsequent node
VMF network
Vin: 230 Vac
50/60 Hz
Imax: 0.15 A
NB: before proceeding further, make sure that the
SW1 dip-switches are correctly configured:
SW1
DIP 1 DIP 2 DIP 3 DIP 4
OFF OFF OFF ---
