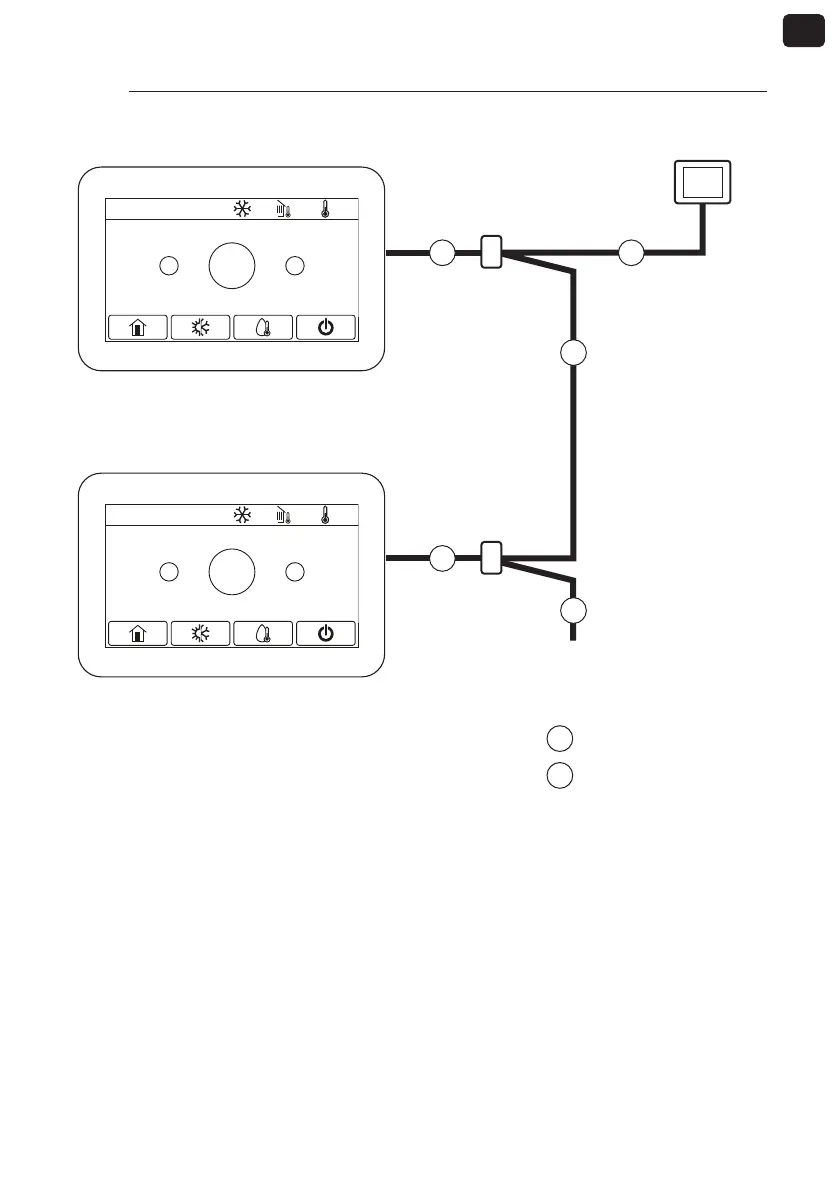

4.4. HMI - BHP/VMF-485LINK overview
HMI control panel
VMF-485LINK (1)
VMF-485LINK (n)
VMF-E6
A B
A
B
B
A IC-2P accessory cable
B 3-pole serial cable + shield
2020-02-20 08:52 0.0°C 0.0°C
+
-
25°C
BHP_W control panel
2020-02-20 08:52 0.0°C 0.0°C
+
-
25°C
