5. To link a specific address with the VMF-RS485LINK expansion, simply change the setpoint of the
FCWI fan coil via its remote control and wait for the correct link signal from the LEDs DL6 and DL5
(the increase in the number of addressed fancoils can be seen in panels VMF-E5 or VMF-E6 ):
WHITE LED
RED LED
Unit
TENS HUNDREDS

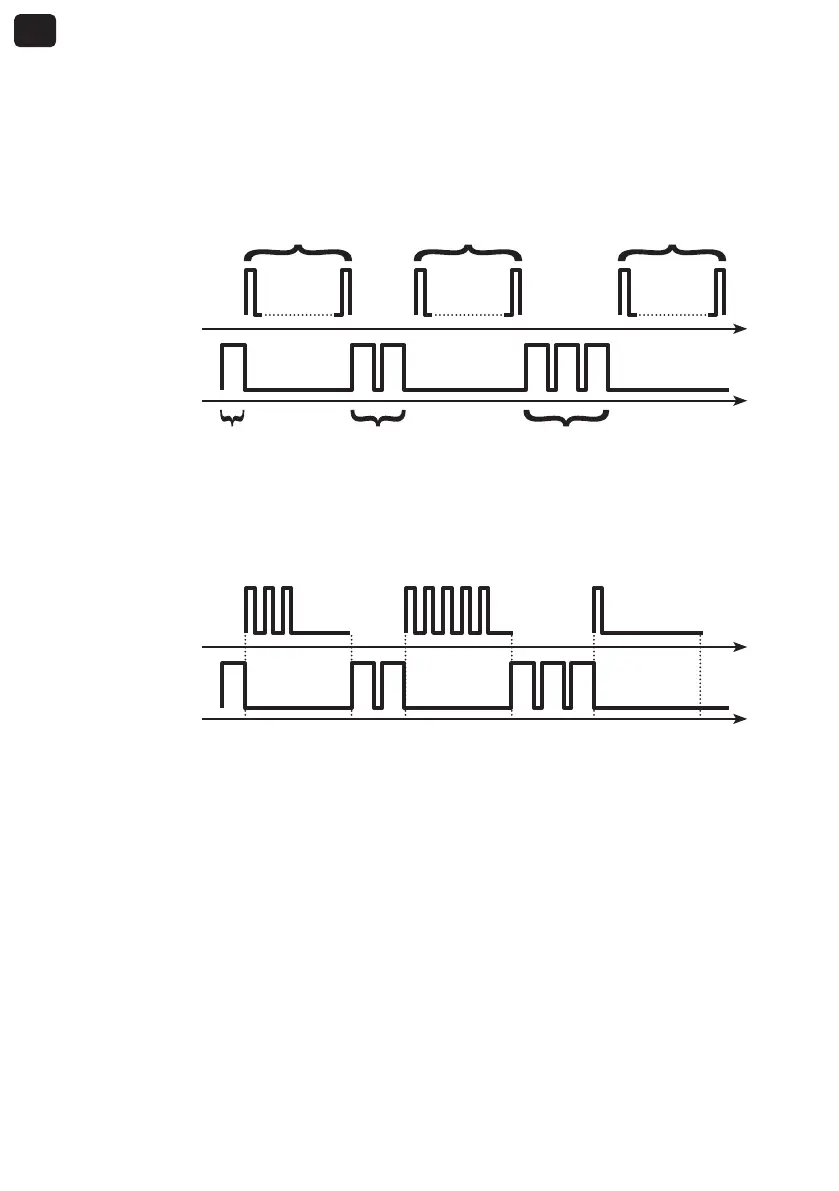

Representation of the MODBUS address associated with the FCWI unit
Time
Unit
Time
TENS
Time
HUNDREDS
WHITE LED
RED LED
Example with MODBUS address = 153
Units = 3 Tens = 5 Hundreds = 1
