BMS UART
ESC
ADD: 001
BAUD RATE: 19200

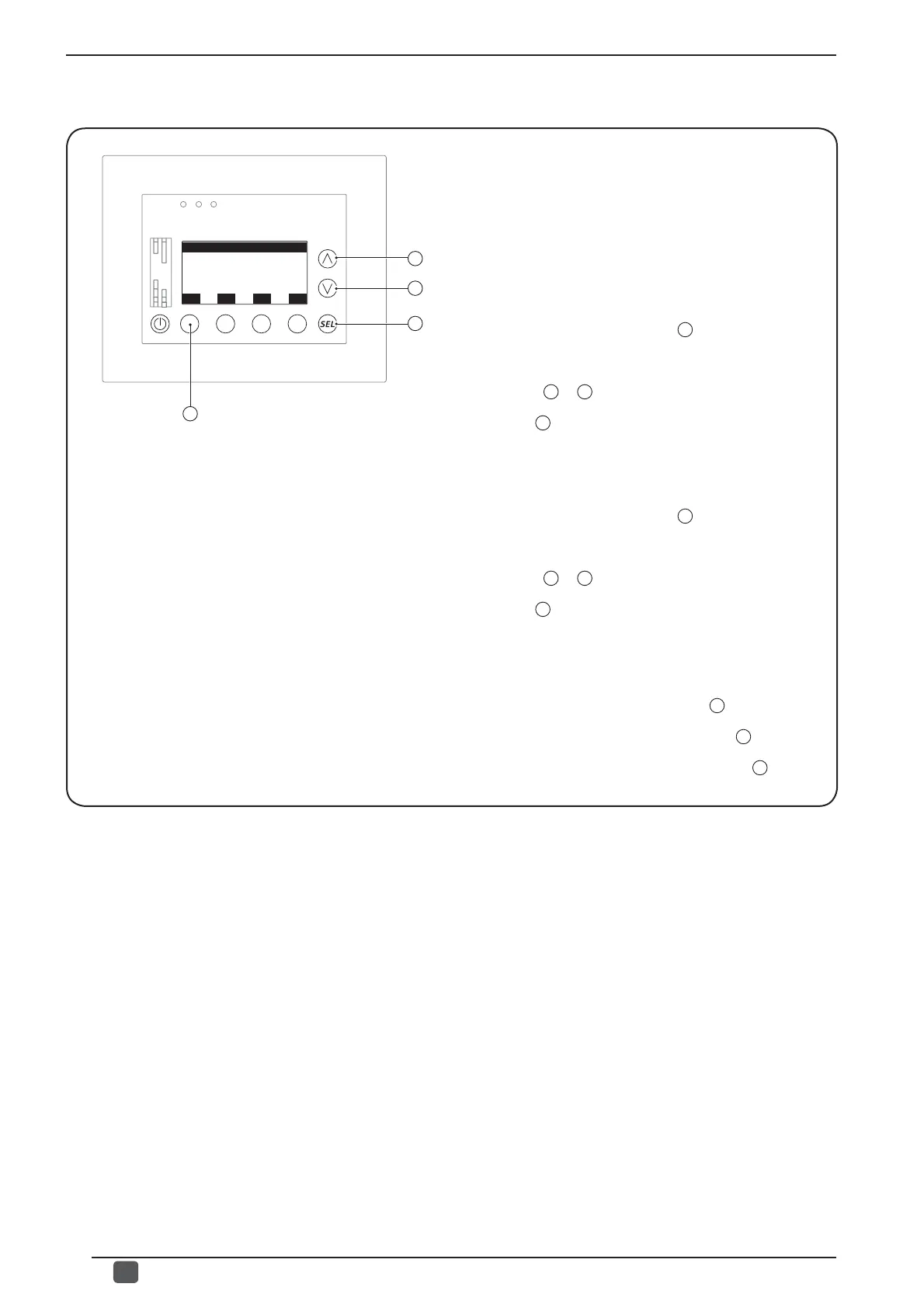

THE VMF system can manage a second serial line RS485
through which the system can be managed by an external su-
pervisor (this serial line only becomes available if the accessory
VMF-485EXP is installed mounted on the VMF-E5 panel board);
from this window, it is possible to:
(1) set the address to assign to the VMF-E5 panel:
(the VMF-E5 panel will be SLAVE with respect to the serial of the
supervision system) This parameter specifi es the address with
which the BMS can trace the VMF-E5 panel; to set this parameter
proceed as follows:
(1) Enter edit mode by pressing the key
C
; after pressing this
button the number of pumps installed on the system is highlight-
ed;
(2) Press the keys
A
or
B
to change the value;
(3) Press the key
C
to confi rm the value entered; once this key is
pressed, the current setting is shown normally, indicating that the
editing process has been completed;
(2) set the baud rate for the serial communication:
To set this parameter, proceed as follows:
(1) Enter edit mode by pressing the key
C
; after pressing this
button the number of pumps installed on the system is highlight-
ed;
(2) Press the keys
A
or
B
to change the value;
(3) Press the key
C
to confi rm the value entered; once this key is
pressed, the current setting is shown normally, indicating that the
editing process has been completed;
After completing the data entry, it will be possible to:
- Go to the next window by pressing the key
B
;
- Go to the previous window by pressing the key
A
;
- Return to the menu selection by pressing the key
D
;
• Set the second serial (only if the accessory VMF-485EXP is present):
