VMF system - Implement zone
D

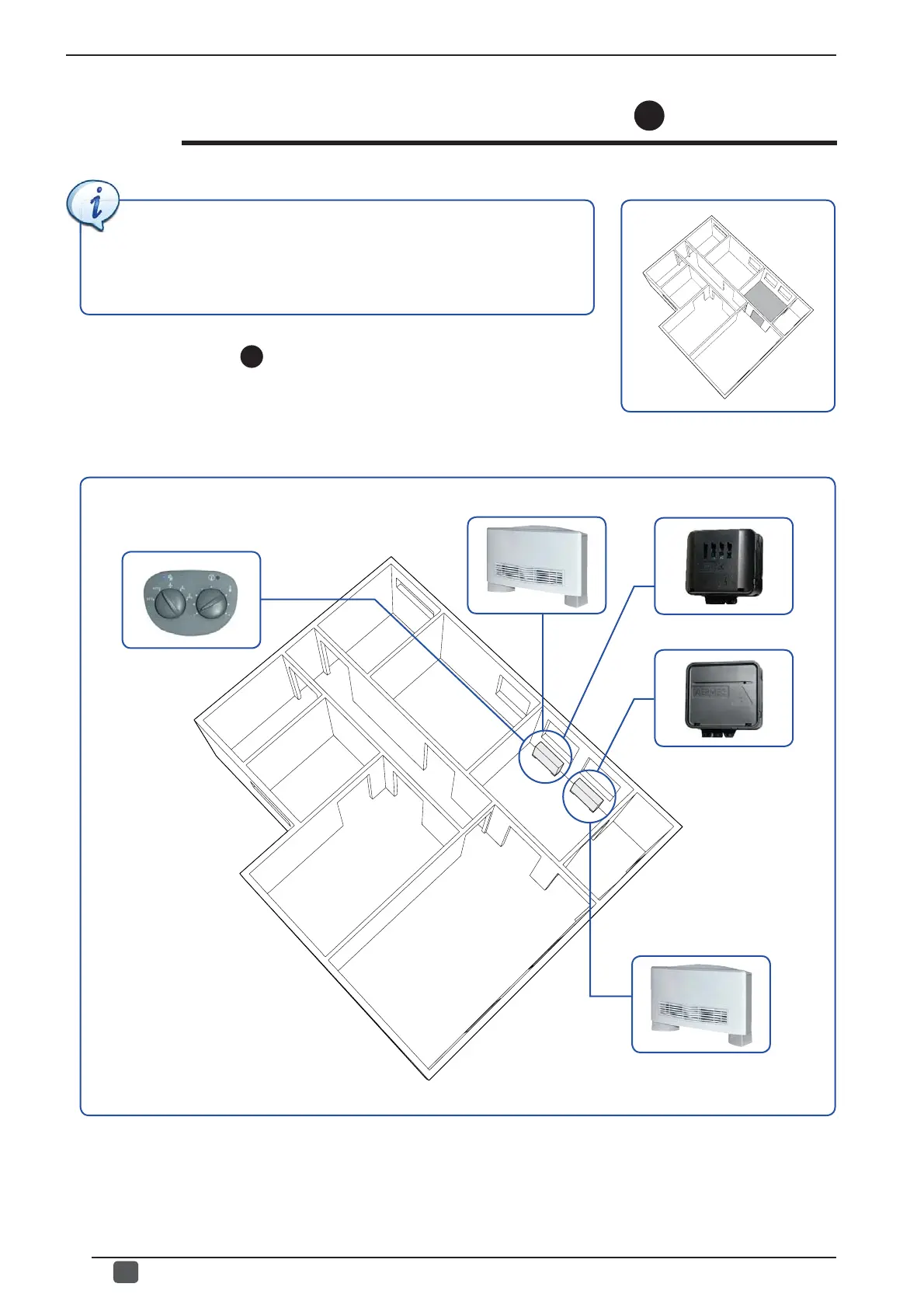

The fi gure to the left indicates which rooms make up zone D; the master unit
installed in this zone is identifi ed on VMF-E5 by the label “Kitchen”.
In this case, the zone is served by two units (one master and one slave); the
type of unit chosen obliges the installer to use the VMF-E1 thermostat for the
master and VMF-E0 for the slave.
Omnia HL (4)
VMF-E0 (5)
VMF-E2H (3)
Material for ZONE
D
An OMNIA HL unit has been selected in this zone to meet requests; the user interface
intended for the zone is VMF-E2H.
The material required to implement this zone is:
VMF-E1 (2)
Omnia HL (1)
To Next Page
