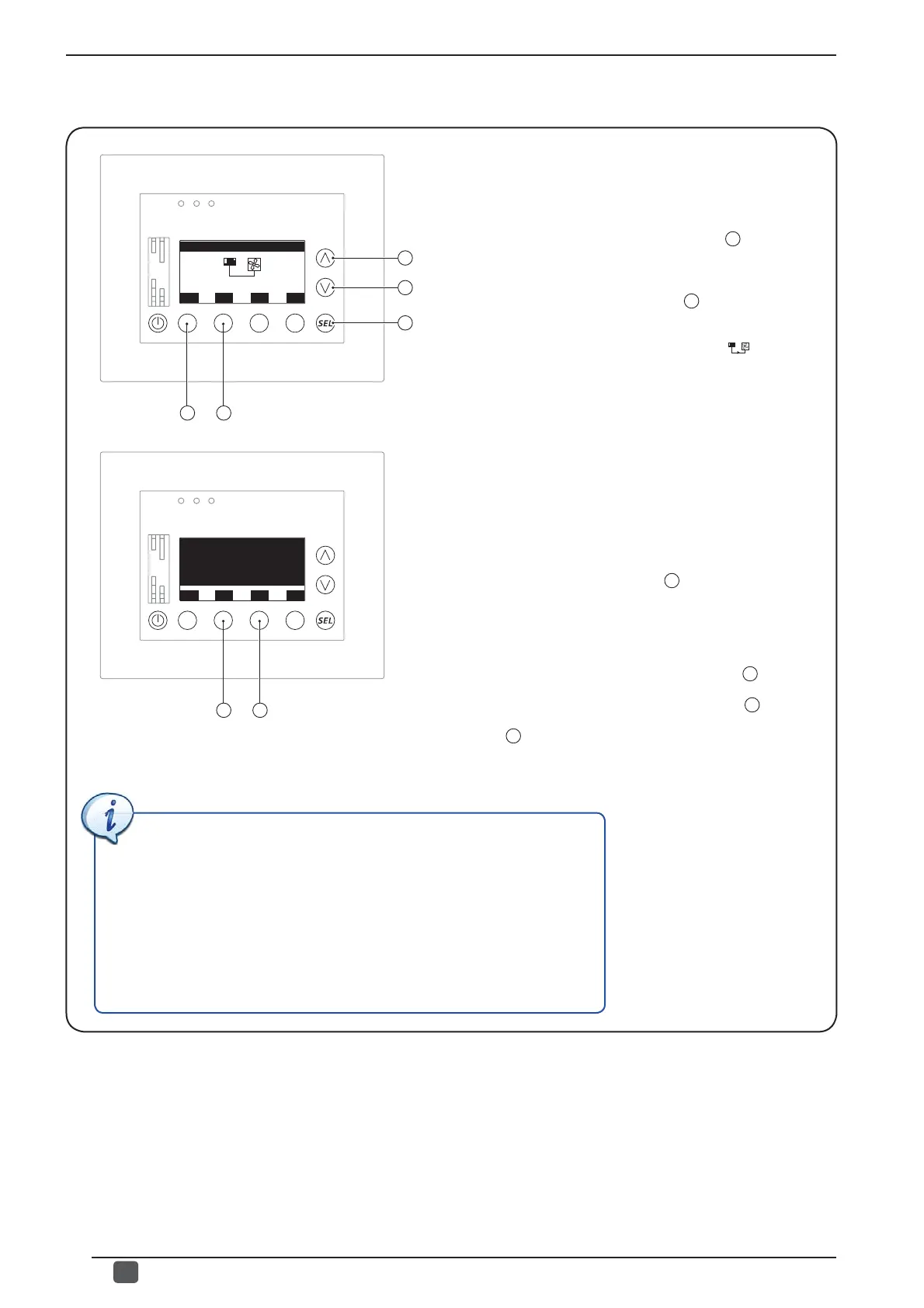

The VMF-E5 control panel implements the self-detection
procedure which allows each thermostat connected to the
MASTER fan coils to automatically be assigned with a univocal
address.
In order to activate this procedure it is necessary to:
(1) Activate the search mode by pressing the
D
key; once
this key has been pressed, the screen will appear on the
display allowing the actual start of the procedure.
(2) To start the master search, press the
F
key.
(3) When the master search procedure has started, the
display will show the animation of the symbol (
) and the
index of the master fan coil to be entered in the network, (this
index starts from 1, and increases automatically after each
fan coil is acknowledged by the system).
(4) Go to the control interface of the fan coil you wish to give
the index 01, and move (in any position or mode) a control
interface selector (either VMF-E2, E2H or E4).
(5) After the system has correctly received the response from
the fan coil which the address was assigned to, the system
passes on to automatically address the next fan coil.
(6) Repeat points (4) and (5) until the address has been
assigned to the last master of the system, or until the
procedure is interrupted (press the
D
key to interrupt the
procedure).
After the addresses have been assigned to the MASTER fan
coils, it will be possible to:
- Pass on to the following window by pressing the
B
key.
- Go back to the previous window by pressing the
A
key.
- Press the
D
key to return to the selection of the menus.
• Procedure for self-addressing MASTER fan coils of the system
In the proposed system example, the indexes assigned to the units are:
• Index 01: FCXI-P of zone A (Modbus Address 06);
• Index 02: Omnia HL of zone B (Modbus Address 07);
• Index 03: Omnia HL of zone C (Modbus Address 08);
• Index 04: Omnia HL of zone D (Modbus Address 09);
• Index 05: Omnia HL of zone E (Modbus Address 10).
A
B
C
E
Connection fancoils
ESC
Fancoil con.:01
ON
D
F
FIND
FAN
COIL?
YES NO
G
