VMF system - Implement zone
E

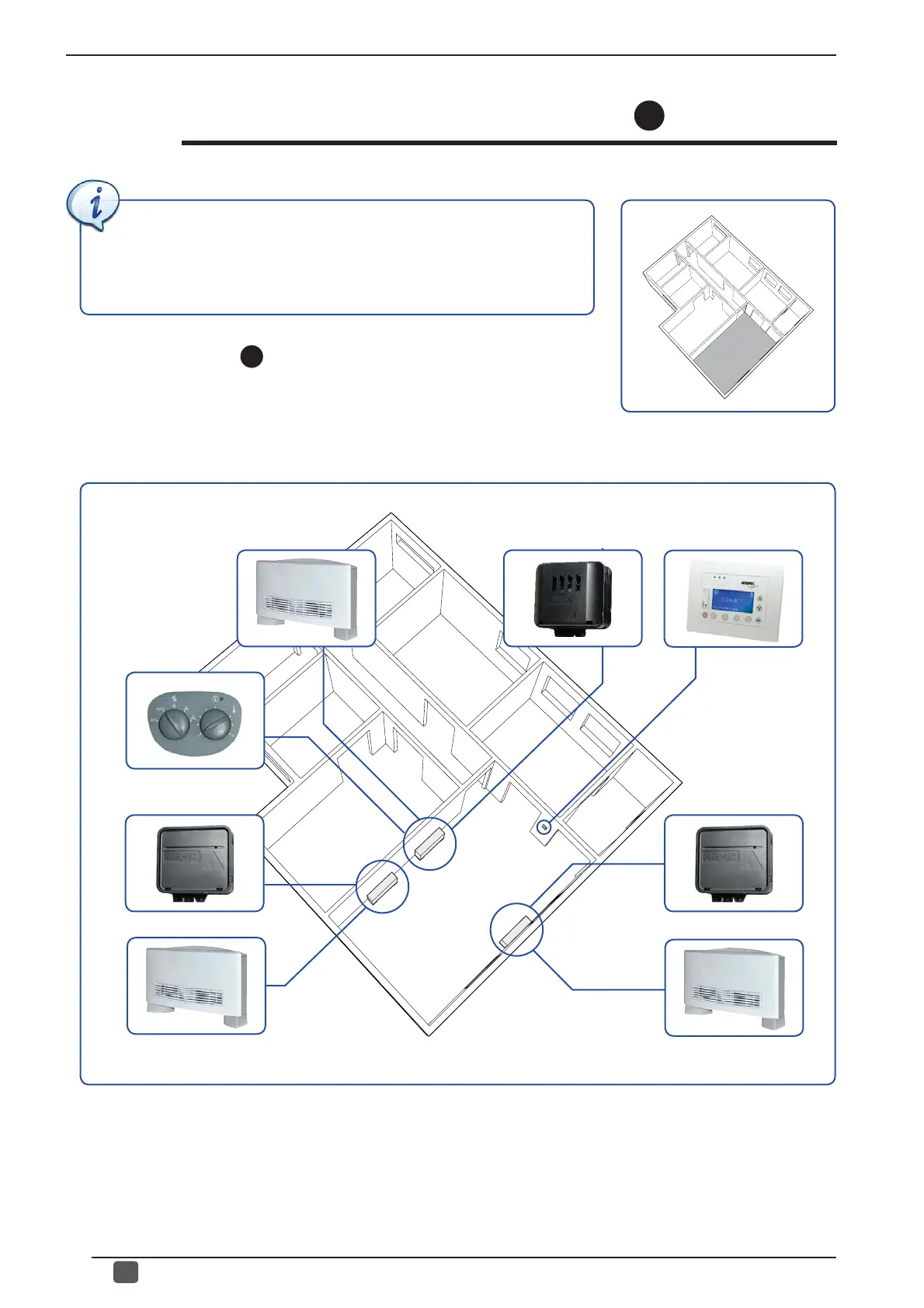

The fi gure to the left indicates which rooms make up zone E; the master unit
installed in this zone is identifi ed on VMF-E5 by the label “Day”.
In this case, the zone is served by three units (one master and two slaves);
the type of unit chosen obliges the installer to use the VMF-E1 thermostat for
the master and two VMF-E0 for the slaves.
Omnia HL (6)
VMF-E0 (7)
Material for ZONE
E
Three OMNIA HL units have been selected in this zone to meet requests; the master
unit will be piloted by installation of a VMF-E2H control interface.
The material required to implement this zone is:
VMF-E5 (8)
VMF-E1 (2)
Omnia HL (4)
Omnia HL (1)
VMF-E0 (5)
VMF-E2H (3)
