VMF System - Implement the technical room

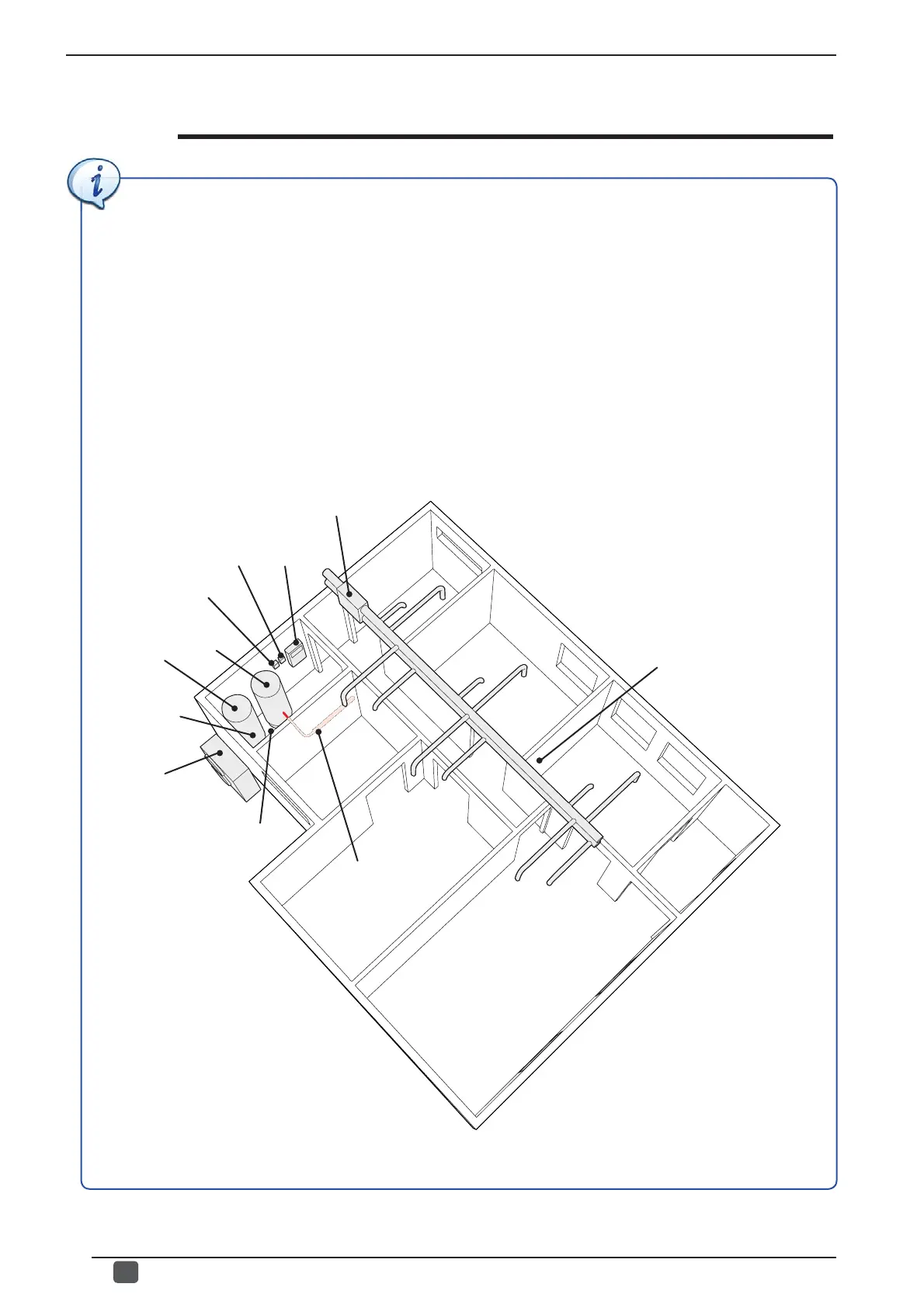

All the components required to manage the hydronic system for heating/air-conditioning and production of
domestic hot water will be installed inside the technical room; in this specifi c case, the elements installed in the
technical room are:
(1) Heat pump ANLI070HX (this component is installed outside);
(2) System storage tank;
(3) DHW storage tank;
(4) Supplementary electric resistance for DHW;
(5) 3-way diverter valve per selection of system or DHW water production;
(6) Domestic hot water production electric control board VMF-ACS3KTM;
(7) VMF-CRP expansion board for recovery unit and VMF-VOC probe management;
(8) VMF-CRP expansion board for management of pumps (a), (b), (c), (d);
(9) Collector with hydraulic pumps (a), (b), (c), (d) to feed the zones;
(10) Heat recovery unit UR;
(11) VMF-VOC probe (this component is installed outside of the technical room, but not belonging to any specifi c
zone, it is grouped in the technical room).
(10)
(11)
(6)
(7)
(8)
(9)
(1)
(2)
(3)
(4)
(5)
