VMF system - Implement zone
A

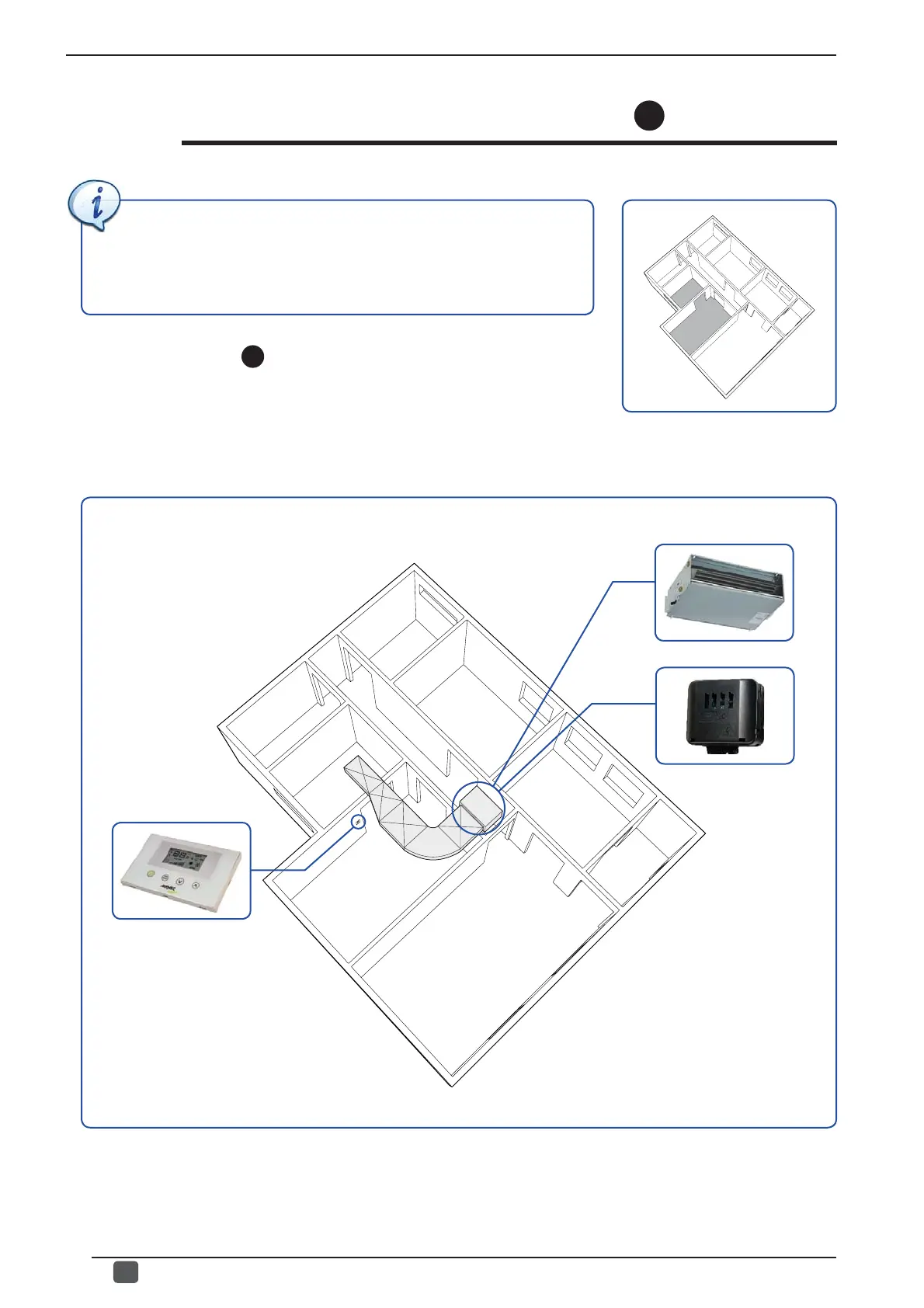

The fi gure to the left indicates which rooms make up zone A; the master unit
installed in this zone is identifi ed on VMF-E5 by the label “NIGHT A”.
In this case, the zone is served by one unit alone, and it is therefore
managed as master. The type of unit chosen obliges the installer to use the
VMF-E18 thermostat as it is an inverter fan coil.
FCXI P (1)
VMF-E18 (2)
VMF-E4 (3)
Material for ZONE
A
An FCXI-P series unit has been selected in this zone to meet requests; by making a
suitable duct, this unit can air condition both rooms making up this zone; the unit will
be managed by installing a wall-mounted VMF-E4 panel.
The material required to implement this zone is:
To Next Page
