AERMEC VMF-E5 User Manual

35
GB
6795773_01
Connection Reference chapters for implementation of the connections
1
VMF-ACS power supply.
2
Connect the supplementary electric resistance.
3
RS485 serial connection.
4
VMF-E5 serial connection.
5
DHW probe connection.
6
Connection V3V (1) or DHW pump.

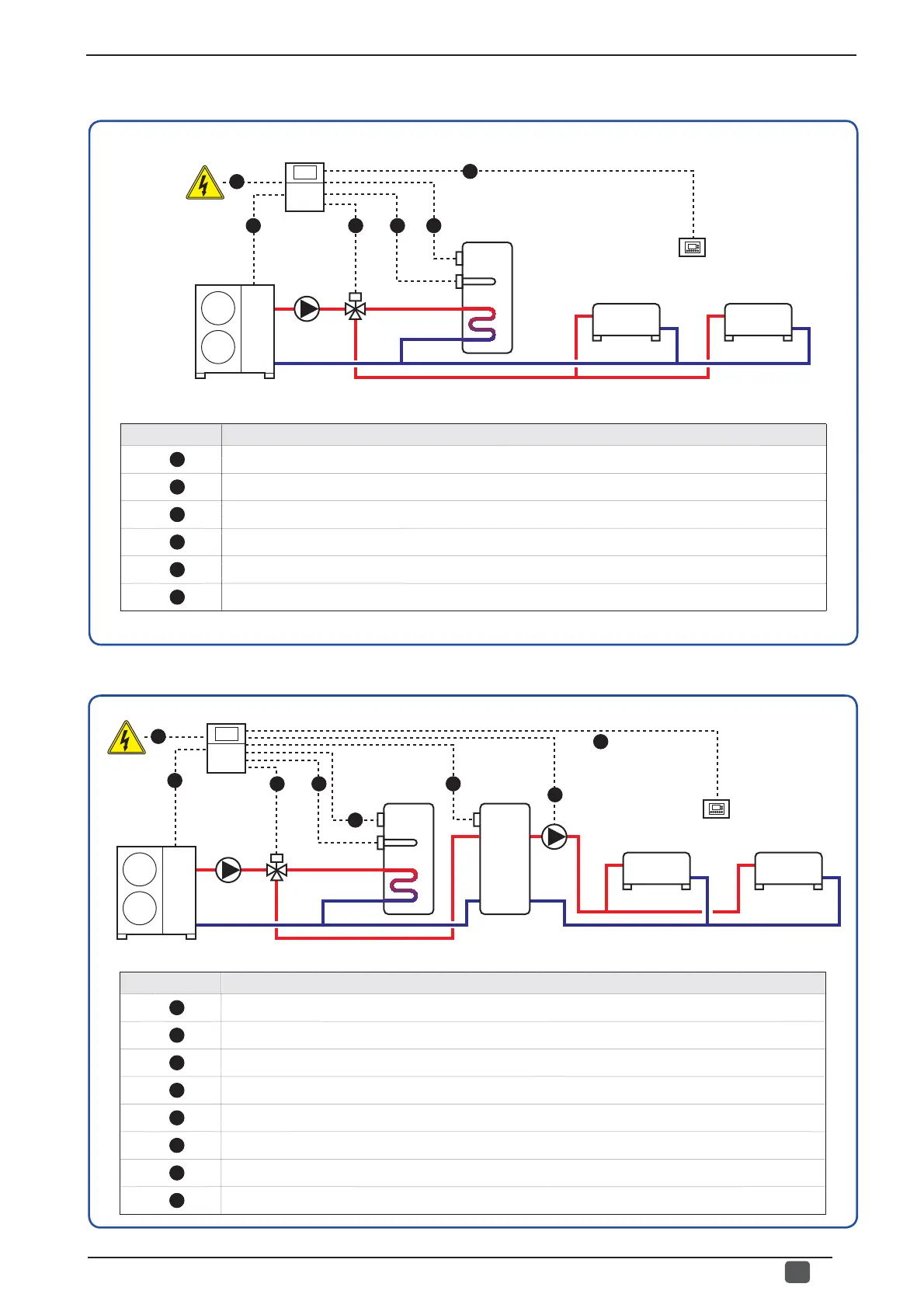

SINGLE VALVE system - System 1 type:
Connection Reference chapters for implementation of the connections
1
VMF-ACS power supply.
2
Connect the supplementary electric resistance.
3
RS485 serial connection.
4
VMF-E5 serial connection.
5
DHW probe connection.
6
Connection V3V (1) or DHW pump.
7
Boiler or V3V (3) or system pump connection.
8
System storage tank probe connection.
SINGLE VALVE system - System 2 type:
Heat Pump
1
4
63 2 5
VMF-ACS
ACS
V3V (1)
VMF-E5
1
4
6
3
2
5
VMF-ACS
Heat Pump
ACS
V3V (1)
VMF-E5
Storage tank
system
8
7
