Connection Reference chapters for implementation of the connections
1
VMF-ACS power supply.
2
Connect the supplementary electric resistance.
3
RS485 serial connection.
4
VMF-E5 serial connection.
5
DHW probe connection.
6
Connection V3V (1) or DHW pump.
7
Boiler or V3V (3) or system pump connection.
8
System storage tank probe connection.

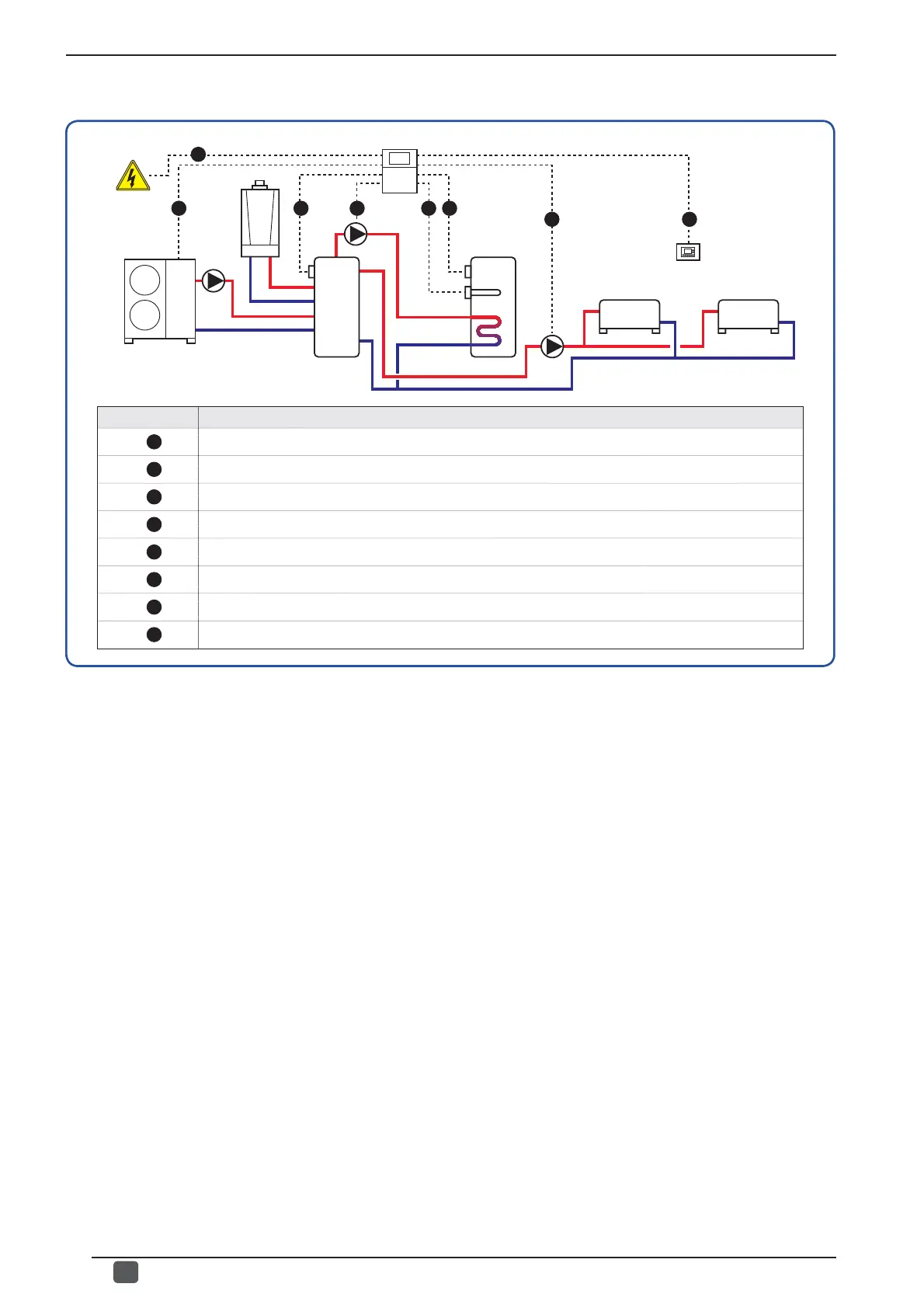

SINGLE VALVE system - System 3 type:
1
2
VMF-ACS
Heat Pump
ACS
Storage tank
system
VMF-E5
3
4
56
7
8
