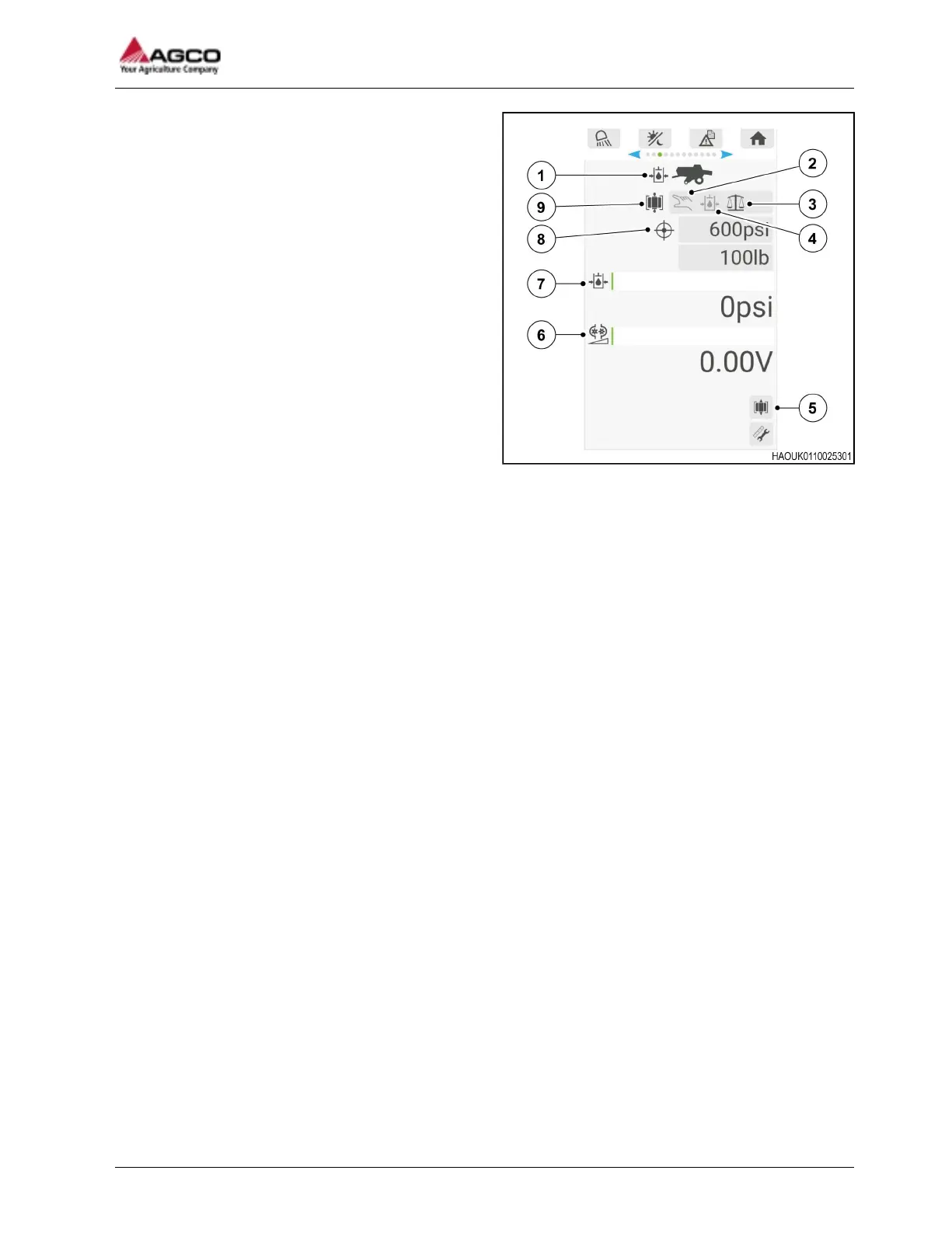

Fig.
20
(1)
Hydraulic
page
menu
(2)
Manual
voltage
mode
(3)
Automatic
weight
mode
(4)
Automatic
pressure
mode
(5)
Bale
chamber
pressure
release
ON/OFF
(6)
V
oltage
value
(7)
Pressure
value
(8)
T
arget
value
setting
(9)
Mode
selection
for
bale
density
4.
Set
the
hydraulic
mode
settings
to
the
correct
values.
5.
Set
the
PTO
to
ON.
6.
Set
the
PTO
speed
to
the
correct
value.
3
Operation
SimplEbale
47
46
48
Table of Contents
79037889A Issue 1_OM_SimplEbale
1
Table of Contents
5
1 Safety
7
1.1 Safety Icons
9
1.2 Safety Instructions
10
1.3 General Safety
11
2 Introduction
13
2.1 Monitor information page
15
2.2 Software
16
2.3 Overview
17
2.3.1 Ag Co-Pilot overview
17
2.3.2 Ag Co-Pilot monitor layout
17
2.4 Controls
19
2.4.1 Operation buttons
19
2.4.2 Change the function of an operation button
19
2.4.3 Navigate the screen and pages
21
2.4.4 Baler Keypad
21
3 Operation
23
3.1 Home page
25
3.1.1 Home page overview
25
3.1.2 Available data for the home page
25
3.1.3 Machine status and indicators
26
3.2 Counter page
28
3.2.1 Counter page overview
28
3.2.2 Reset the counters
29
3.3 Hydraulic page
31
3.3.1 Hydraulic page
31
3.3.2 Release the hydraulic pressure on the bale chamber
32
3.3.3 Calibrate the hydraulic density control
33
3.4 Moisture page
35
3.5 Bale scale page
36
3.5.1 Bale scale page
36
3.5.2 Calibrate the bale scale
37
3.6 Baler settings page
39
3.7 Display settings page
41
3.8 Baler options page
42
3.8.1 Baler options page
42
3.8.2 Set an optional function to ON or OFF
42
3.9 SimplEbale web site
43
3.10 Do this procedure before you make a bale
44
4 Maintenance
49
4.1 Sensor adjustments
51
4.1.1 Adjust the star wheel sensor
51
4.1.2 Adjust the needle carriage sensor
53
4.1.3 Adjust the PTO speed sensor
56
4.2 Bleed the air from the hydraulic density control valve
61
4.3 Update the terminal software
64
5 Troubleshooting
71
5.1 Baler diagnostics page
73
5.2 Scale diagnostics page
74
5.3 Diagnostics
75
5.3.1 Star wheel diagnostics
75
5.3.2 PTO speed diagnostics
76
5.3.3 Scale diagnostics
78
5.3.4 Needle carriage diagnostics
82
5.3.5 Fan diagnostics
83
5.3.6 Lamp diagnostics
85
5.3.7 Automatic lubrication system diagnostics
85
5.3.8 Bale pressure system diagnostics
86
5.3.9 CAN bus diagnostics
89
5.4 Fault codes
91
5.4.1 Fault codes overview
91
5.4.2 Erase a fault code
91
5.4.3 Fault codes
91
6 Specifications
97
6.1 Fuse schematic
99
Index
103
