1 Product Description
This document describes the installation planning of the digitizers type 5151, subtypes
100, 110, 200 and 210.
For the installation planning of the complete system it is additionally required to perform
all steps described in the NX Workstation Installation Planning document.
Refer to the Agfa HealthCare Library:
Computed Radiography  CR Workstation Software

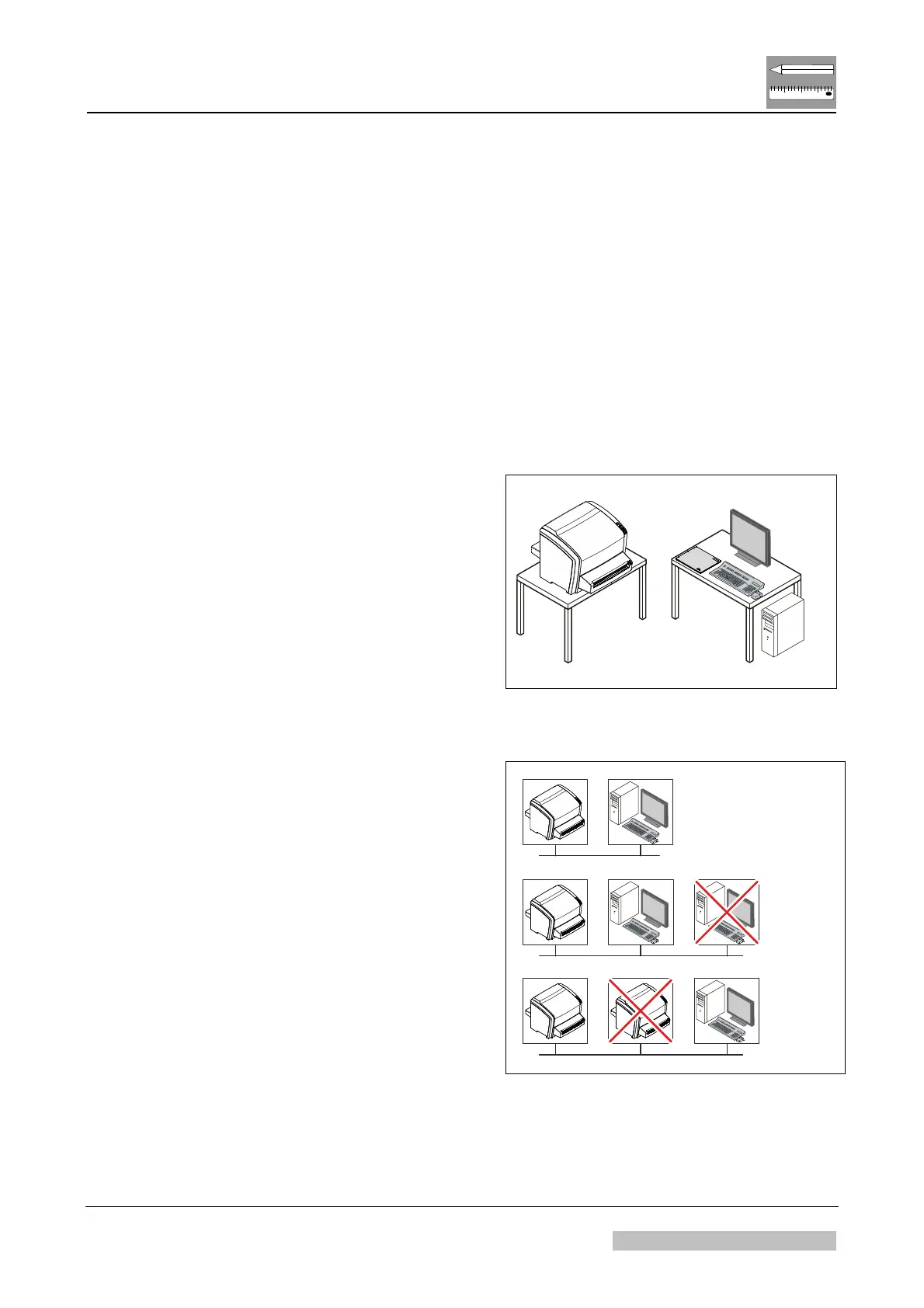

1.1 System Overview
515100ab.cdr
Digitizer
Cassette
NX Workstation
The digitizer is part of a CR system,
consisting of:
 Digitizer
 Cassette(s) with Image Plate,
CR MD 1.0 General,
format 35 x 43 cm
 NX Workstation as of software
version 2.0.8700 / 3.0.8700
(subtypes 100 and 110) or
2.0.8800 / 3.0.8800 (subtypes 200
and 210).
Figure 1
OK
NOT OK
NOT OK
515100af.cdr
 One Processing Station and one
digitizer always belong together.
Figure 2
Edition 1, Revision 1 CR 10-X / CR Reader / CR 12-X / CR Advanced Reader Chapter 11 / Page 6 of 24
03-2013 Type 5151 / 100 / 110 / 200 / 210 Agfa Company Confidential

AGFA CR Series Specifications

General

Type	Computed Radiography (CR) System
Resolution	Up to 10 pixels/mm (depending on model and image plate)
Connectivity	DICOM
Applications	General Radiography, Mammography
Laser Type	Solid-state laser
Power Requirements	100-240V AC, 50/60Hz
