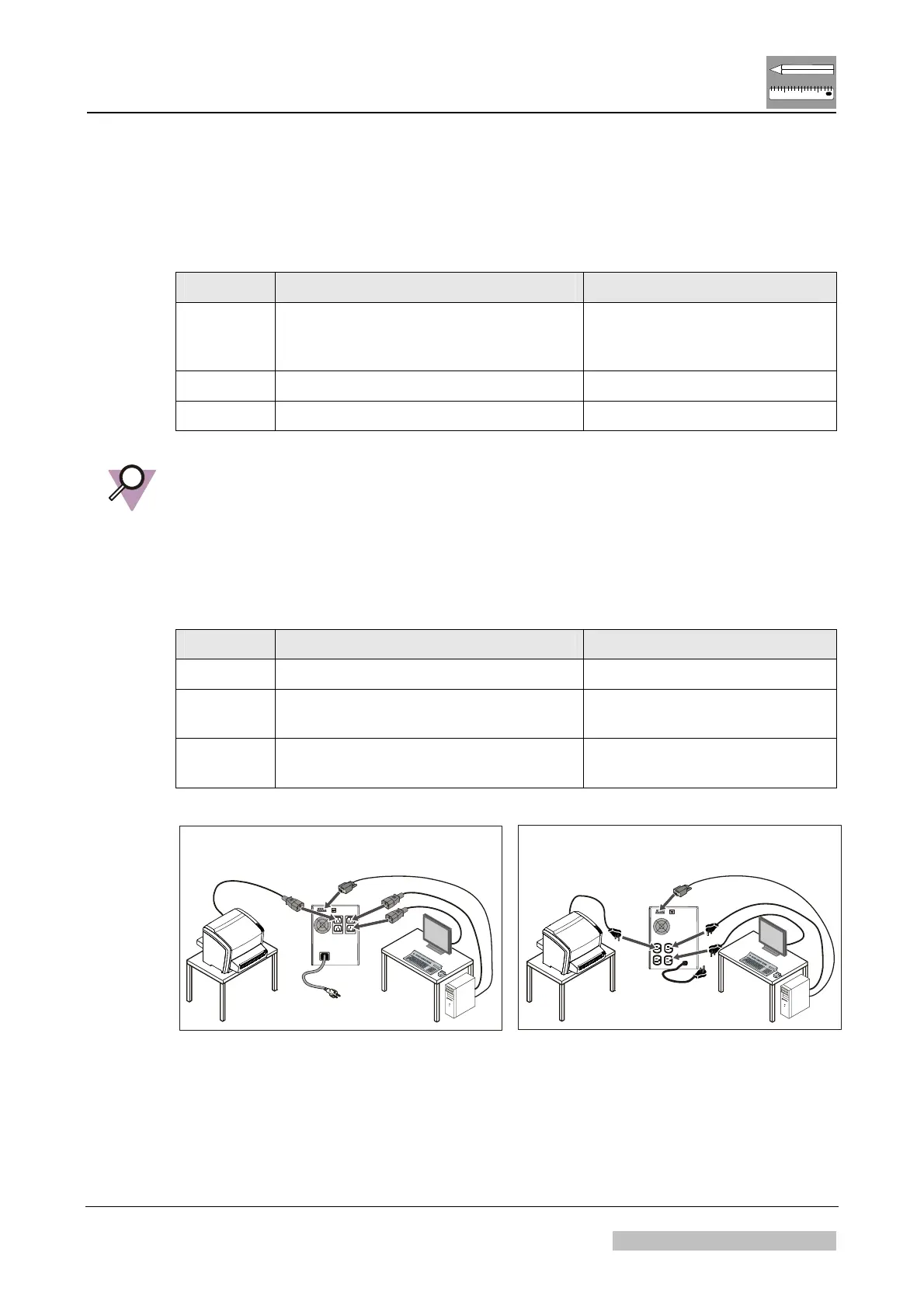

6.6 Electrical Connections of the optional UPS
Powerware Type 5115 - 750i (230 V Version)
Cable # Cable Comment
A Extension cable IEC C13 plug female,
IEC C14 plug male, 1.8 m
2 cables are part of UPS
delivery. See also
IMPORTANT note below.
B Serial cable Part of UPS delivery
C Mains cable Part of digitizer delivery
IMPORTANT:
If digitizer, monitor and NX shall be connected to the UPS, organize a third extension
cable (IEC C13 plug female, IEC C14 plug male, 1.8 m) locally.
Powerware Type 5115 - 750 (120 V Version)
Cable # Cable Comment
B Serial cable Part of UPS delivery
D Mains cable with with NEMA 5-15 P
plug
Part of delivery digitizer,
monitor, NX delivery
E SJT, 3 x AGW 18 with NEMA 5-15 P
plug, 1.8 m
Fixed cable connection
515111ac.cdr
230 V (220 - 240 V) Version
Type 5115 - 750i
A
A
A
B
C
120 V (110 - 120 V) Version
Type 5115 - 750
B
E
D
D
D
Figure 10
