DD+DIS155
.11E
Functional Description
DOCUMENT CONTROL NOTE:
The controlled version of this document is available from the Agfa HealthCare Library. Any printed copy of this document is uncontrolled.
1.5 Main Components of the Cassette with Image Plate
The complete cassette consists of:
ï‚· Cassette, 35 x 43 cm
ï‚· Image Plate "MD1.0" (MD = media definition; 1.0 = version)
Bar Code Label
(fluorescent)
Image Plate
Shape prevents
wrong insertion of IP
517502ea.cdr
Cassette
Cassette Tube Side (black)
Cassette Label
Shutter
closed
Lock
Shutter opened
Cassette Key
Image Plate Carrier
(0,3 mm Sheet Metal)
B
C
E
D
Upper Cover (black)
Fleece
Image Plate (Phosphor Layer)
Image Plate Carrier
Lower Cover (gray)

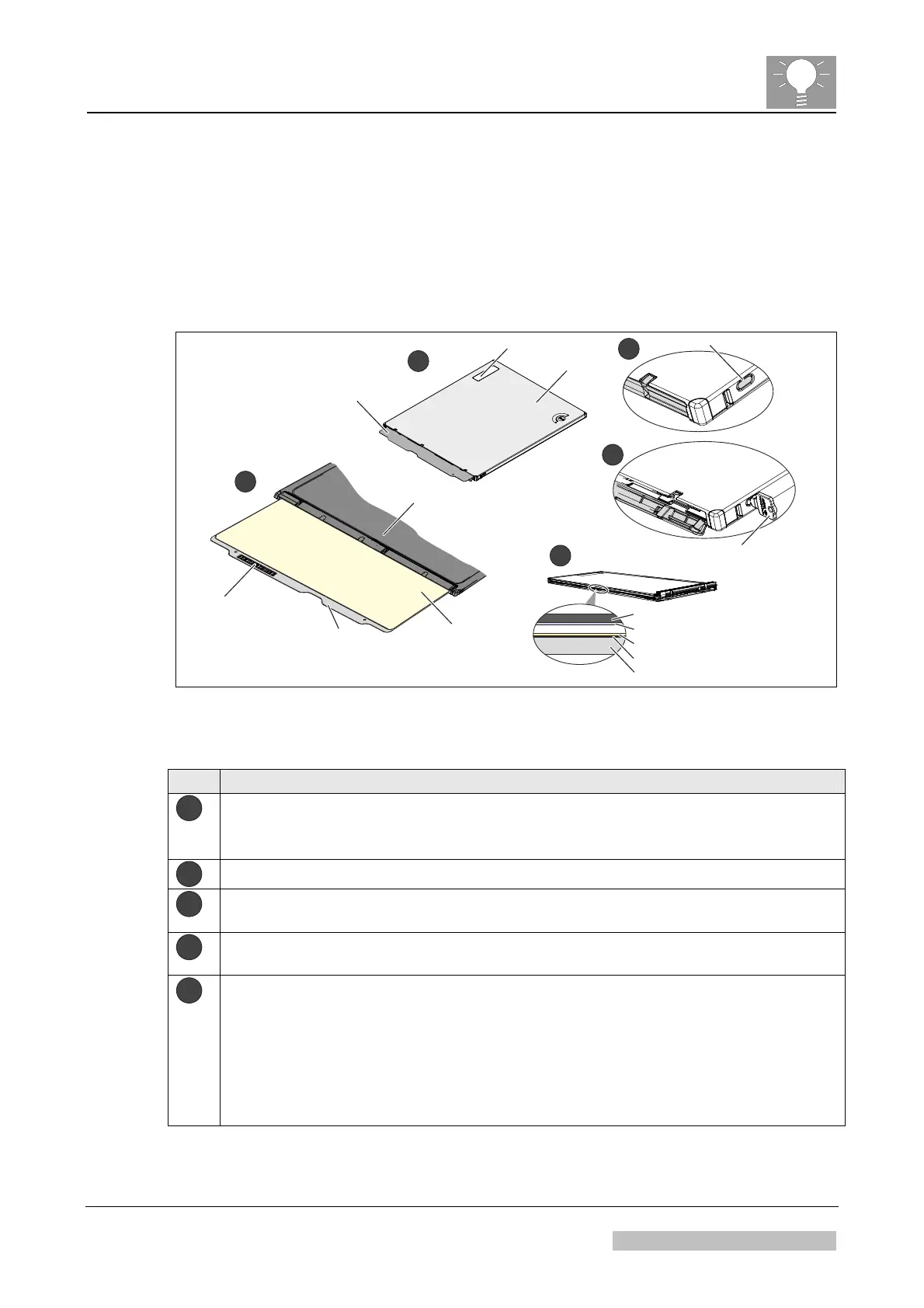

Figure 5
Cassette and image plate details:
# Description
A
The image plate is glued to a 0,3 mm sheet metal carrier.
The cassette has a cassette label attached allowing the user to label the
cassette.
B
The shutter is unlocked by pushing the cassette lock.
C
The cassette lock is either opened manually via cassette key (part of cassette
delivery) or by the cassette unit when inserting the cassette.
D
Backscatter protection is given by the IP carrier (sheet metal). This replaces the
lead layer used in other Agfa CR cassettes
E
Each image plate carrier has a fluorescent label attached. Functions of the label:
1. Indicate begin of scan (BOS) and begin of line (BOL) for scanning. This is
done via the fluorescent surface.
2. The barcode keeps image plate specific parameters which influence
scanning.
On the barcode label the expiration date of the image plate is written in human
readable letters.
Edition 1, Revision 1 CR 10-X / CR Reader / CR 12-X / CR Advanced Reader Chapter 2 / Page 7 of 19
03-2013 Type 5151 / 100 / 110 / 200 / 210 Agfa Company Confidential
