AGFA DR 100e - Page 18

2
7
9
8
6
1
4
3
5
1.

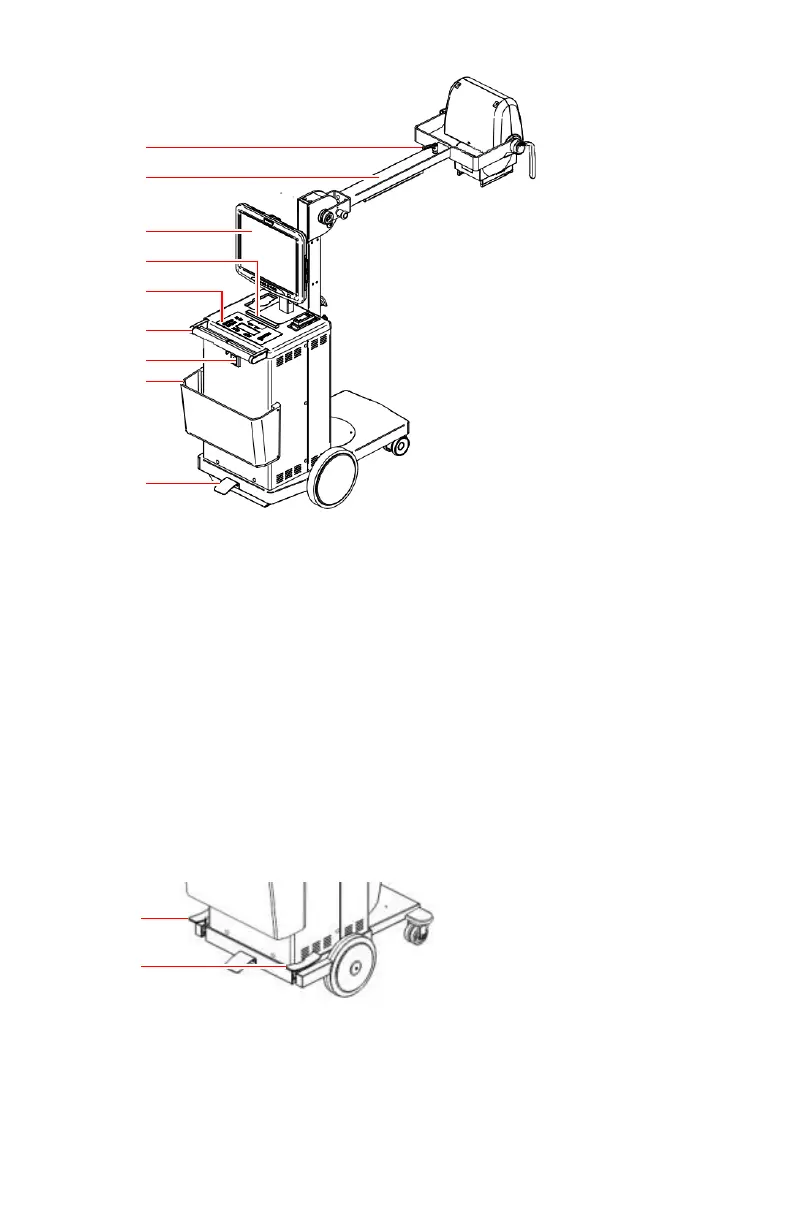

X-ray tube rotation movement lock
2.
Arm
3.
NX workstation with NX application and DR Detector Switch mounted on
a mounting bracket
4.
Led beacon light
5.
X-ray generator control panel
6.
Handlebar with brake lever
7.
Remote control receiver (optional)
8.
DR detector holder
9.
Tilting pedal
The operation controls on the system with fixed column are similar, apart
from the brake that is operated by pedals and not at the handlebar.
1
1
1.
Brake pedals
