AGFA DR 100e - Connectors for the Hospital Network and for Registering a DR Detector

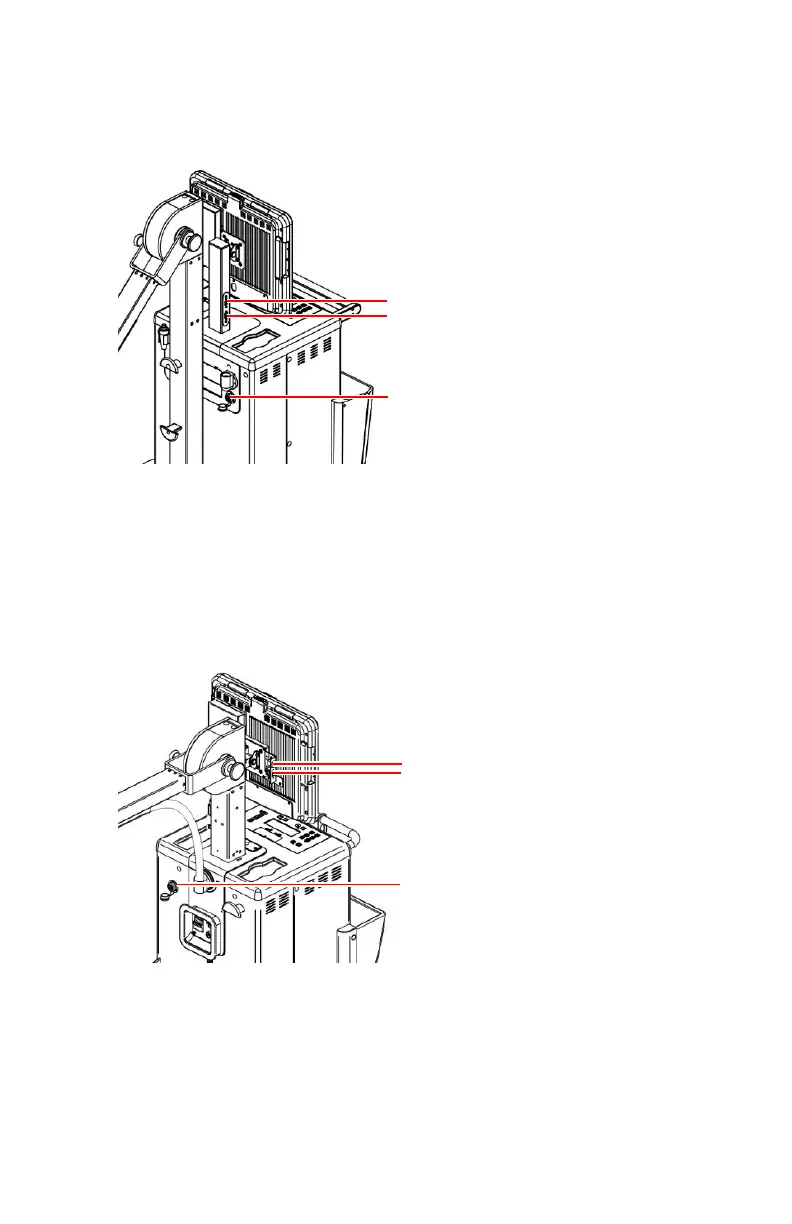

Connectors for the hospital network and for registering a DR
Detector
1
2
3
1.
USB port to connect the IR Data Communication Unit for registering a DR
Detector.
2.
Network connector to connect the NX workstation to the hospital network.
3.
Network connector to connect the Registration Cable for registering a DR
Detector.
Figure 10: System with rotating column
1
2
3
1.
Network connector to connect the NX workstation to the hospital network.
2.
USB port to connect the IR Data Communication Unit for registering a DR
Detector.
3.
Network connector to connect the Registration Cable for registering a DR
Detector.
Figure 11: System with fixed column
DR 100e (Digital Radiography) | Introduction | 29
0365B EN 20181015 0853
