AGFA DR 100e - Operation Controls

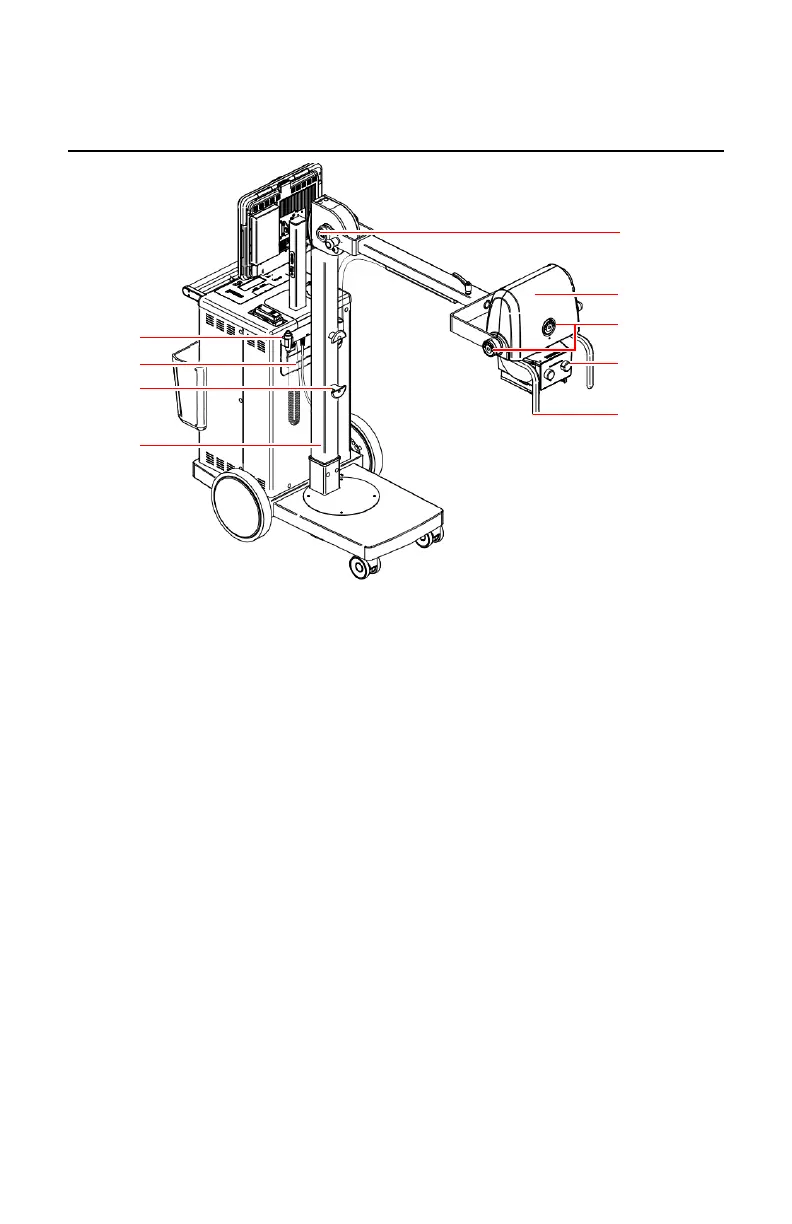

Operation Controls
6
7
8
9
5
4
3
2
1
1.
Exposure button
2.
Circuit breaker and equipotential node
3.
Power supply cable reel
4.
Rotating column
5.
Lock of the arm movement during transport
6.
X-ray generator and X-ray tube assembly
7.
Goniometer
8.
Collimator
9.
X-ray tube handle
