Positioning
WARNING:
Monitor the patient position (hands, feet, fingers, etc.) with
special care to avoid injury to the patient caused by unit
movements. Patient hands must be kept away from mobile
components of the unit. Intravenous tubing, catheters and other
patient connected lines should be routed away from moving
equipment.

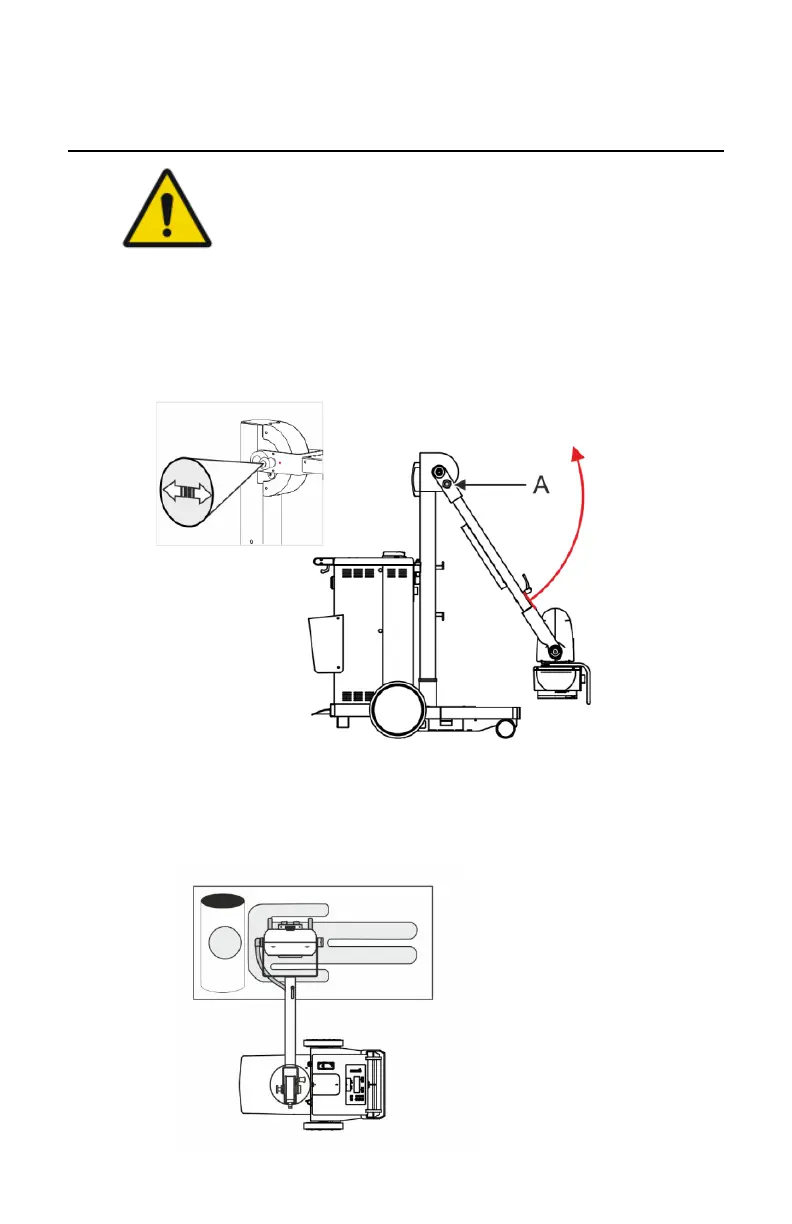

1. Pull and rotate the knob (A) with the arrow towards the green dot to
unlock the arm.
2. Lift the arm.
3. Position the X-ray tube relative to the region of interest.
a) Move the device.
b) Rotate the column.
