4. Point the X-ray tube towards the region of interest.

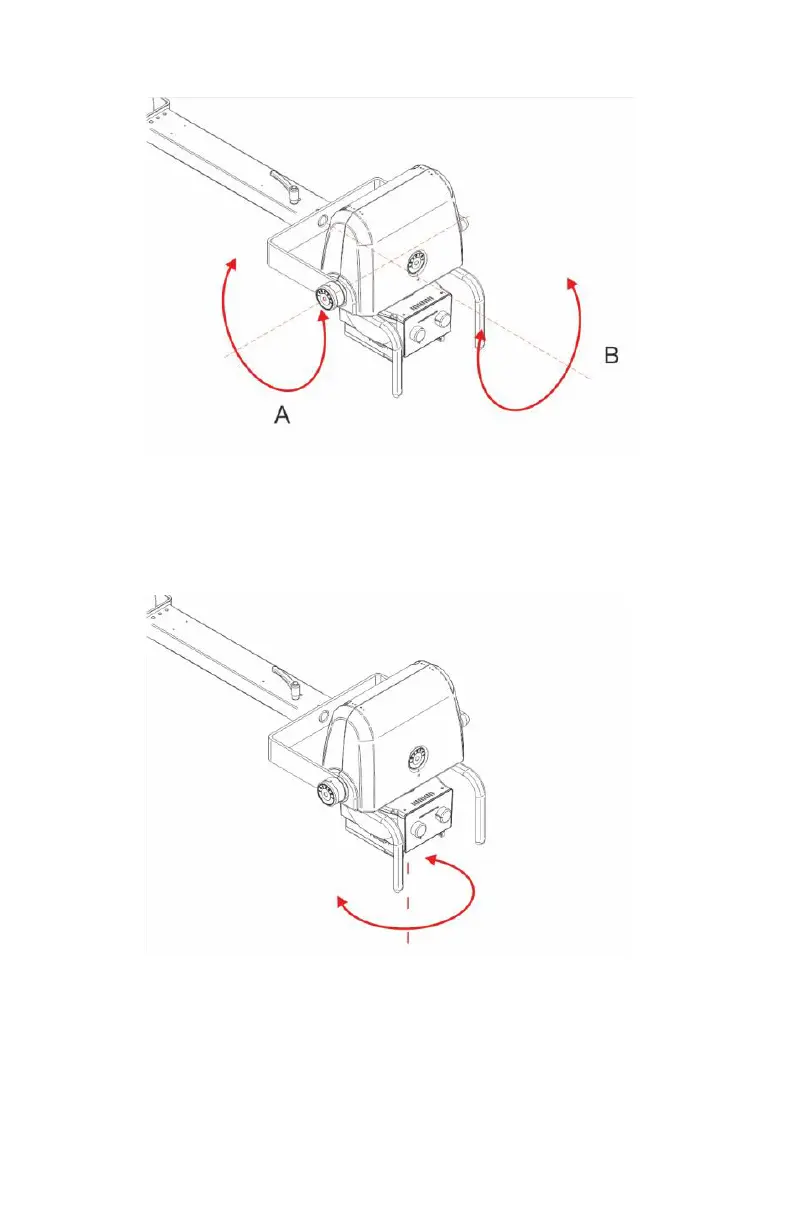

The X-ray tube can be tilted in all directions:
• Forward up to 102 degrees (A)
• Backward up to 49 degrees (A)
• To the side up to 180 degrees (B)
The collimator can be rotated on its vertical axis up to 120 degrees in each
direction. To rotate the collimator, grip it with both hands and rotate in
the desired direction.
70 | DR 100e (Digital Radiography) | Basic Workflow
0365B EN 20181015 0853
