58 Agilent 1200 Preparative Pump User Manual
4 Using the Preparative Pump
Setting Up the Pump
The parameters for setting up the preparative pump can be accessed through
the instrument menu or by clicking on the pump icon in the system diagram
(see Figure 15 on page 58).

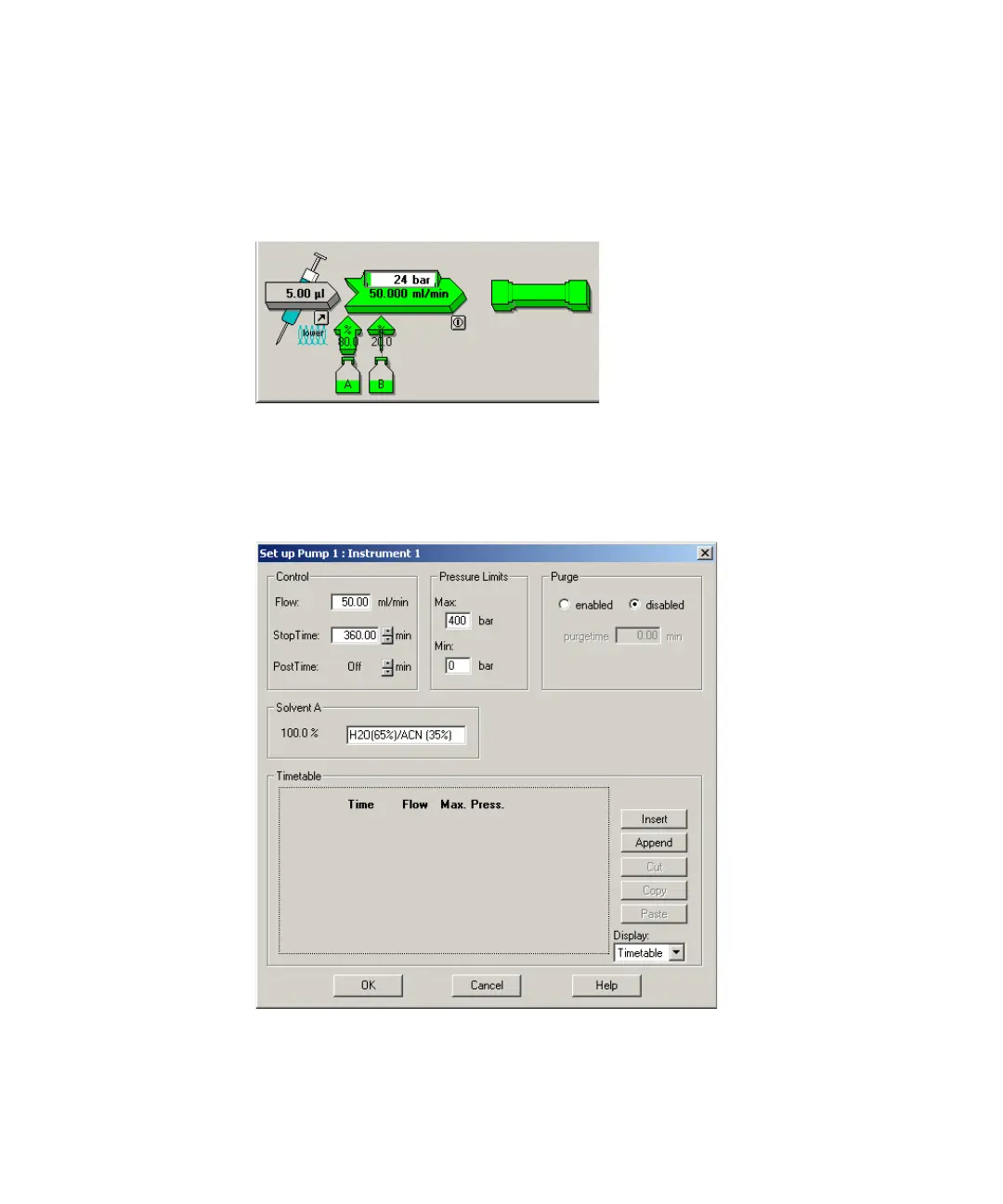

Figure 15 System Diagram
The Setup dialog box depends on the configuration of the pump. In Figure 16
on page 58 you see the dialog box for the isocratic pump and in Figure 17 on
page 59 you see the interface for the gradient pump.
Figure 16 Setup dialog box (isocratic pump)
