Agilent Technologies 54830 Series Service Guide

Chapter 6: Replacing Assemblies
To remove and replace the front panel assembly
6–16
5
Disco
nnect the cal cable W9 from J14 on the acquisition board.
6 Using a T10 driver, remove the Torx T10 screw from the front frame back plate.

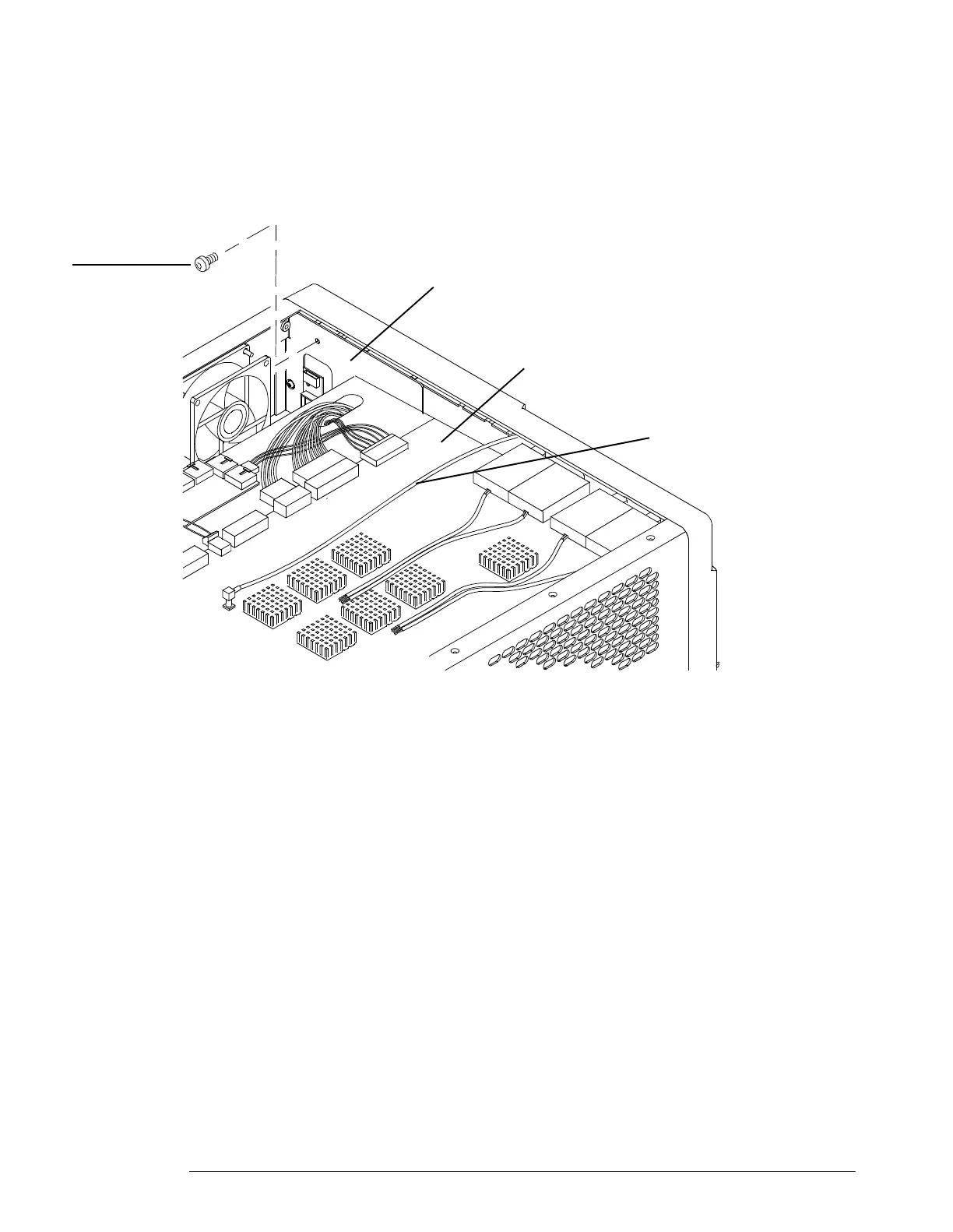

Figure 6-15
Cal Cable W9
T10 torx screw
Front Frame Back Plate
Acquisition Board
W9 Cal Cable
