Chapter 6: Replacing Assemblies
To remove and replace the bottom sleeve
6–6
To remove and replace the bottom sleeve
Use these steps to remove the bottom sleeve.
1 Disconnect the power cable.
2 Disconnect all oscilloscope probes and BNC input cables from the front panel.
3 Disconnect any other cables, such as mouse, keyboard, printer, or GPIB cables.
4 Place the unit so the bottom is facing up.
5 Remove the four Torx T20 screws that secure the rear feet (two in each foot).
6 Remove the eight Torx T10 screws that secure the bottom to the chassis.
7 Remove the four Torx T20 screws that secure the back panel to the chassis.

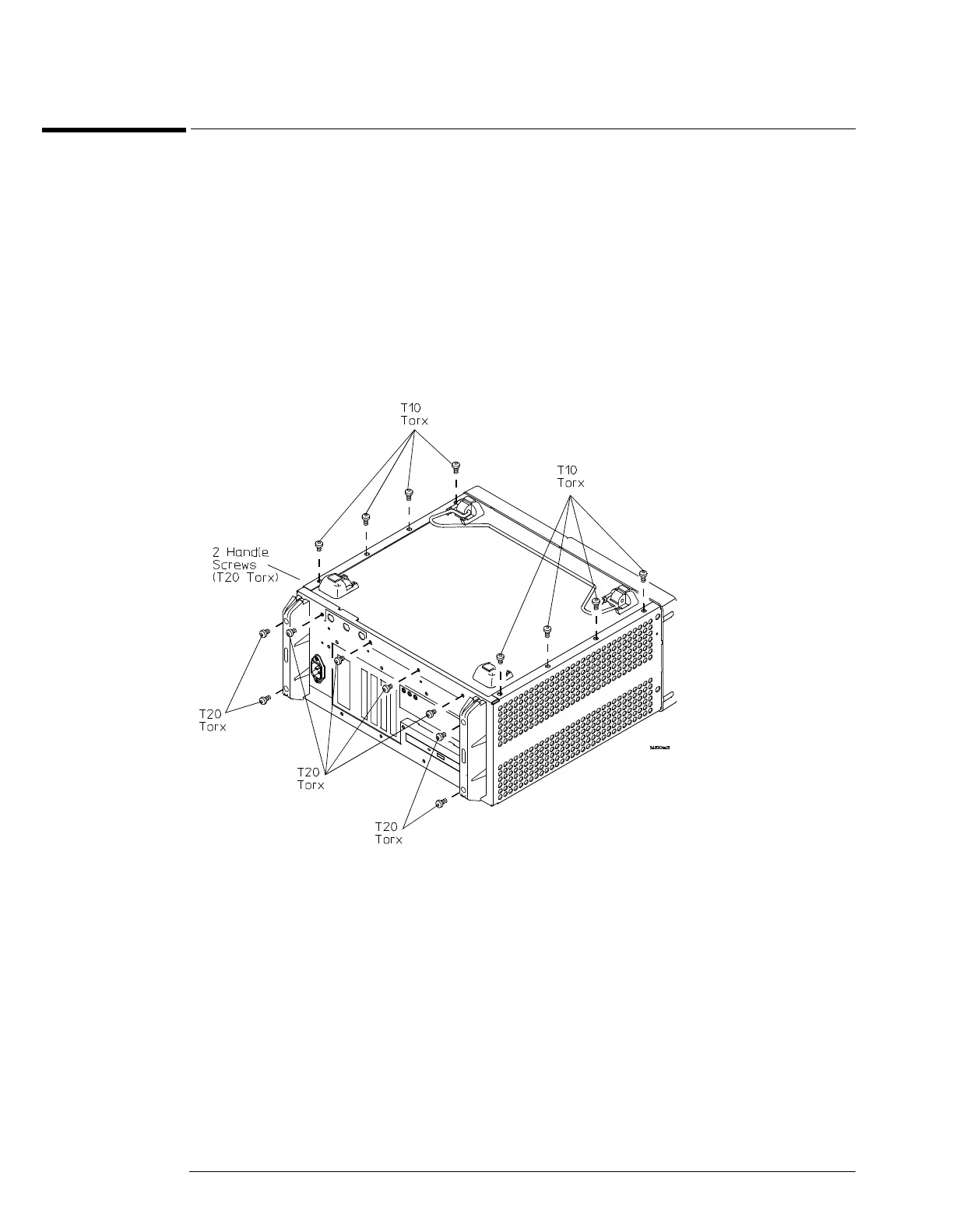

Figure 6-2
Bottom Sleeve Fasteners
8 Remove the two T20 handle screws to remove the handle.
