Agilent Technologies 54830 Series Service Guide

Chapter 6: Replacing Assemblies
To remove and replace the probe power and control assembly
6–33
To remove and replace the probe power and control assembly
Use this procedure to remove the probe power and control assembly. When necessary, refer to
other removal procedures.

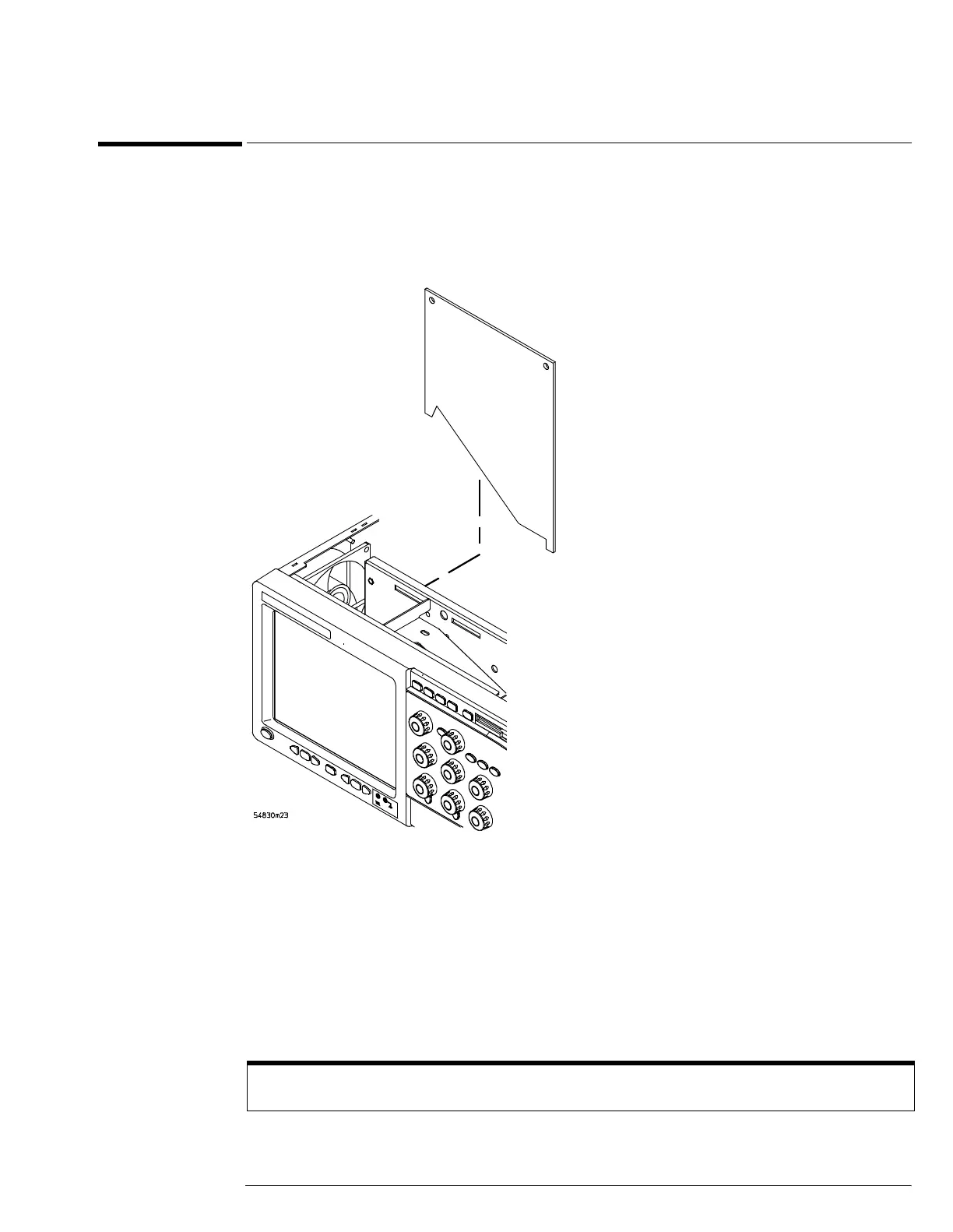

Figure 6-32
Probe Power and Control Assembly
1 Disconnect the power cable and remove the top cover.
2 Disconnect the mylar flex cable W8 that connects the probe power and control
assembly to the AutoProbe assembly.
The connector must be unlocked before you can remove the flex cable. See “To disconnect and
connect Mylar flex cables” in this chapter.
3 Disconnect the mylar flex cable W17 from the probe power and control assembly.
4 Remove the two Torx T10 screws securing the probe power and control assembly to
the chassis.
Avoid Interference with the Fan
You may need to use a Torx key or stubby Torx driver to avoid interference with the fan.
