Chapter 5: Troubleshooting
To install the fan safety shield
5–3
Default Set
up
A Default Setup is provided to assure the oscilloscope setup is in a known default state.
The default setup prevents previous setups from interfering with the next test. It also
simplifies the oscilloscope setup procedure. Use the default setup when a procedure
requires it.
• Press the Default Setup key to set the oscilloscope to the default state.
To install the fan safety shield
1 Disconnect the oscilloscope power cord and remove the cover.
If necessary, refer to the procedures in chapter 6 "Replacing Assemblies".
2 Clip the fan safety shield over the outside of the oscilloscope chassis next to the fans.

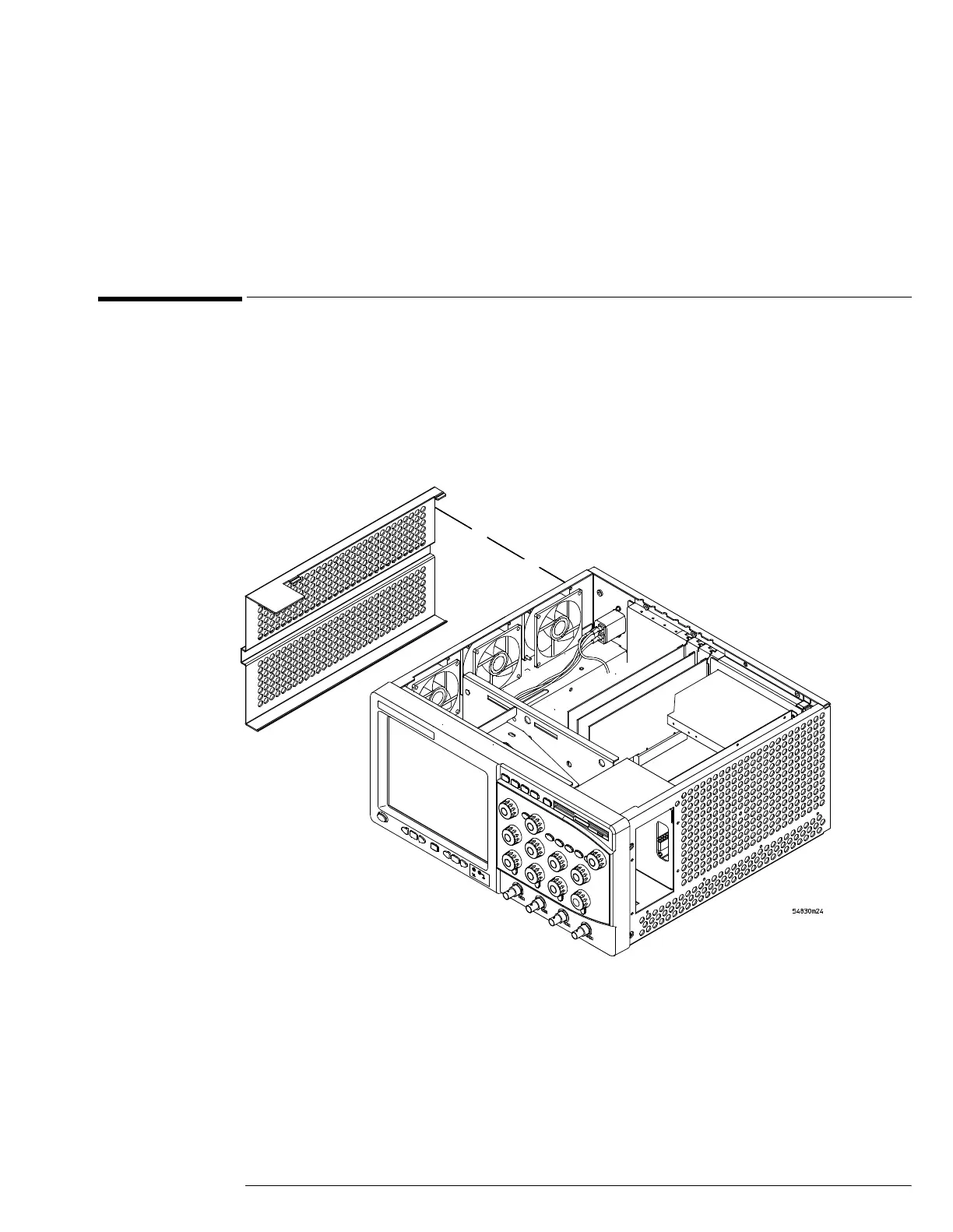

See Figure 5-1.
Figure 5-1
Installing the Fan Safety Shield
