Chapter 2: Preparing for Use
To connect oscilloscope probes
2–11
3
To disco
nnect the probe, push the small latch on top of the probe connector to the left,
then pull the connector body away from the front panel of the oscilloscope without
twisting it.

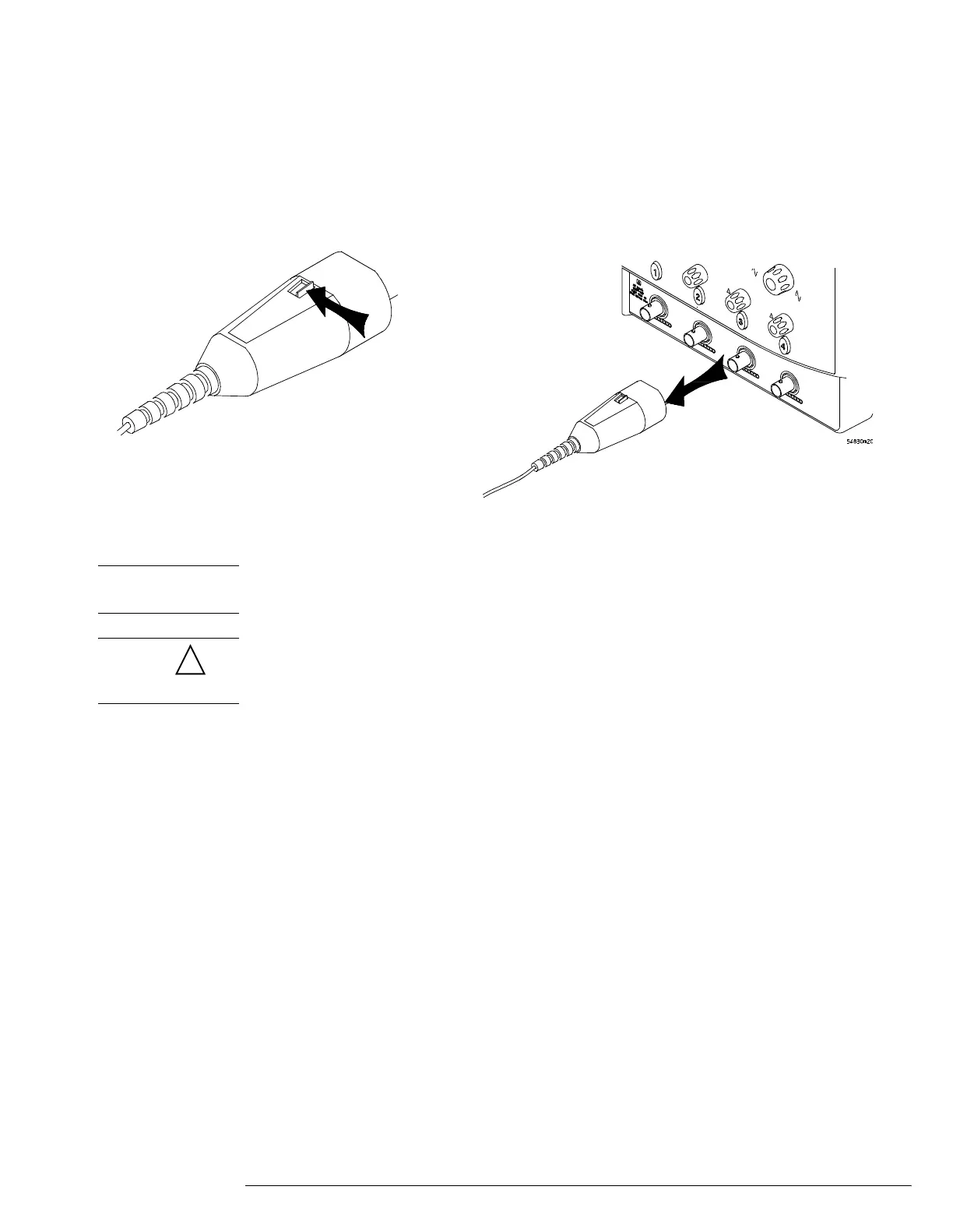

Figure 2-7
Disconnecting the Oscilloscope Probe
CAUTION Do not attempt to twist the snap-on probes on or off the oscilloscope’s BNC connector. Twisting
the probe connector body will damage it.
CAUTION For the 54830 series oscilloscopes do not exceed the maximum input voltage rating. The
maximum input voltage for 50 Ω inputs is 5 Vrms, CAT I. Maximum voltage at 1 MΩ impedance
is ±100 V (dc + ac) [ac < 10 kHz], CAT I.
!
To Next Page
