Agilent Technologies 54830 Series Service Guide

Chapter 3: Testing Performance
To verify threshold accuracy
3–28
5
To adj

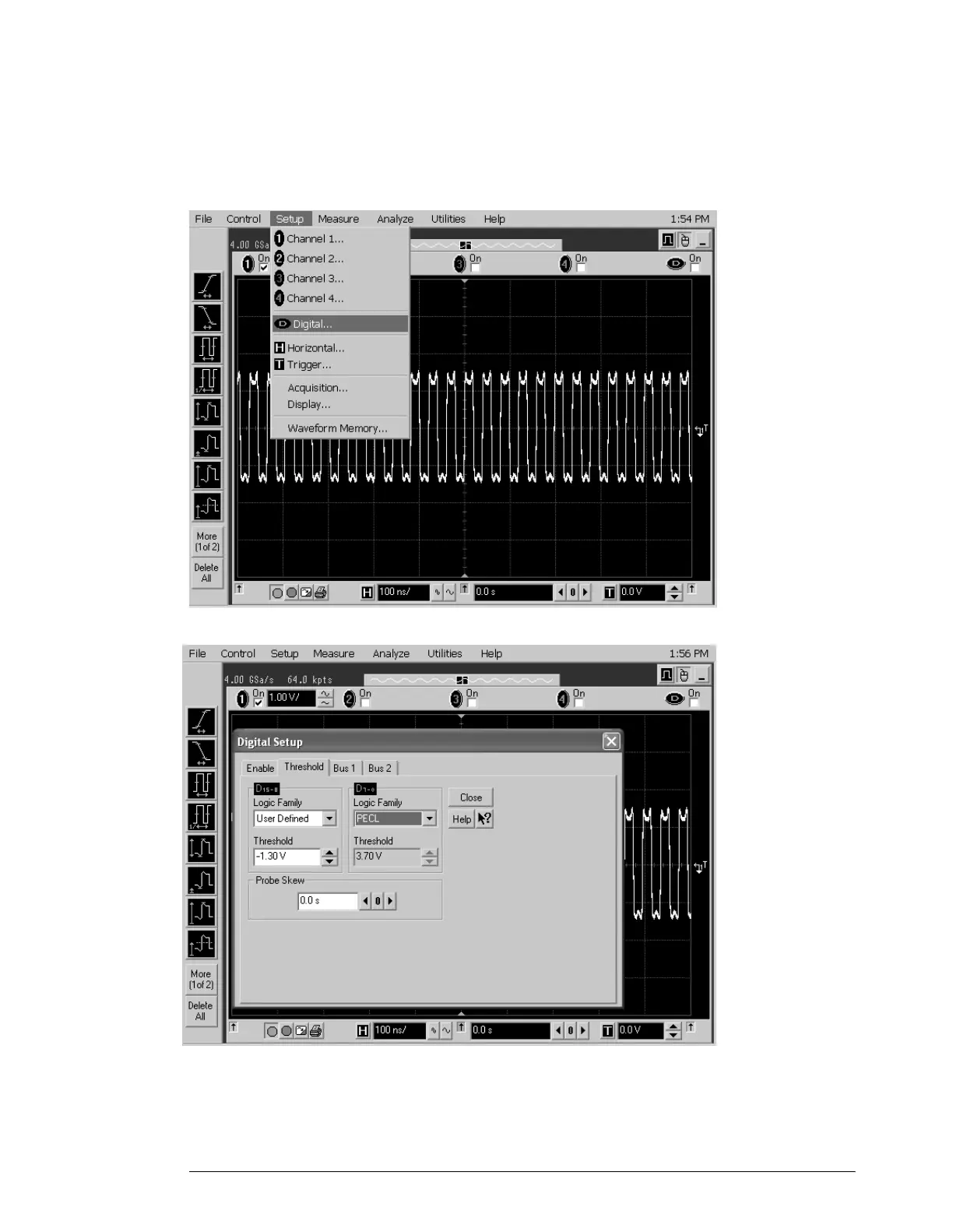

ust the threshold settings, open the Digital channels setup dialog box.
a Under the Setup menu, press the Digital selection. Select the threshold tab.
Figure 3-19
b Select user defined under the logic family selection.
Digital Channels Setup
