16 Troubleshooting
2 Hardware Symptoms
FID Ignitor Does Not Glow During Ignition Sequence
1 Remove the detector top cover.
2 Turn the FID flame On.
3 Observe the ignitor plug though the FID chimney. The small
hole should glow during ignition sequence.
If the test fails, check for the following possible causes:
• The ignitor may be bad; replace the ignitor.
• Detector temperature is set to < 150 °C. Agilent recommends
operating the FID at >
300 °C.
• The ignitor is not making a good connection to the ground:
• The ignitor must be tightly screwed into the FID castle
assembly.
• The three T-20 Torx screws that hold the collector
assembly in place must be tight.
• The brass knurled nut that holds the FID castle assembly
in place must be tight.
Perform FID maintenance if these parts are corroded or
oxidized.
WARNING
Keep body parts at a safe distance from the FID chimney while
performing this task. If using hydrogen, the FID flame will not be
visible.

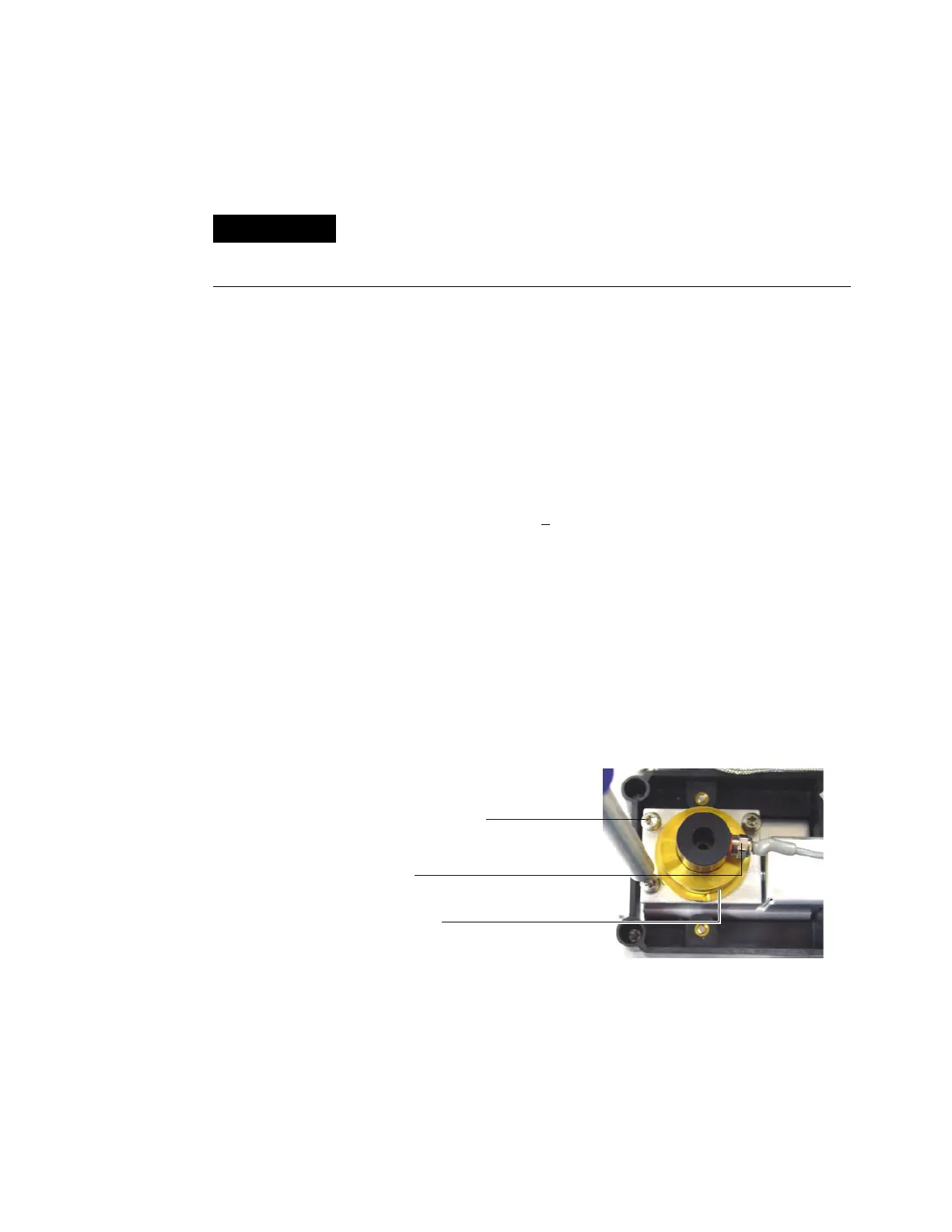

T-20 Torx screws (3)
Ignitor
Knurled nut
