7 General Maintenance
To Assemble the EI HES
180 7000/7010 Series TQ GC/MS Operating Manual

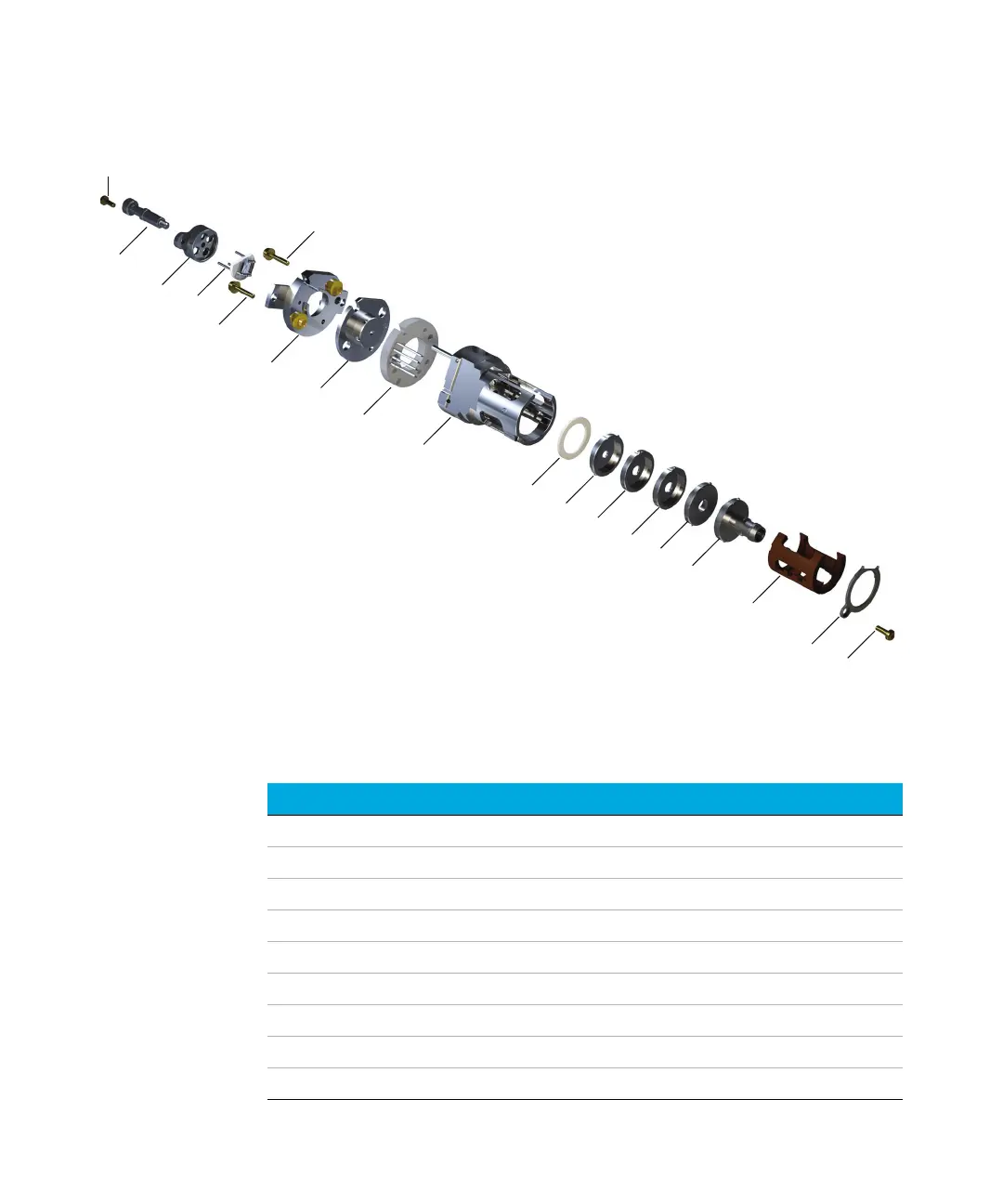

Figure 58. Assembling the EI HES
1
2
8
16
17
15
9
4
3
11
10
6
5
7
13
12
14
8
12
Table 17 Parts list for EI HES (Figure 58)
Item number Item description Part number
1 Source finger grip G7002-20008
2 Filament block G7002-20019
3 Extractor lens (5)*, with 3 mm opening G7004-20061
4 Ceramic insulator for extractor G7002-20064
5 Entrance lens assembly, Extended, HES (1)* G7004-20065
6 Ion focus lens (2)* G7004-20068
7 Lens insulator/holder G7002-20074
8 M2 × 0.4 screw × 12 mm long gold plated screw G7002-20083
9 Source body G7002-20084
