8CI Maintenance
To Assemble the CI Source
236 7000/7010 Series TQ GC/MS Operating Manual

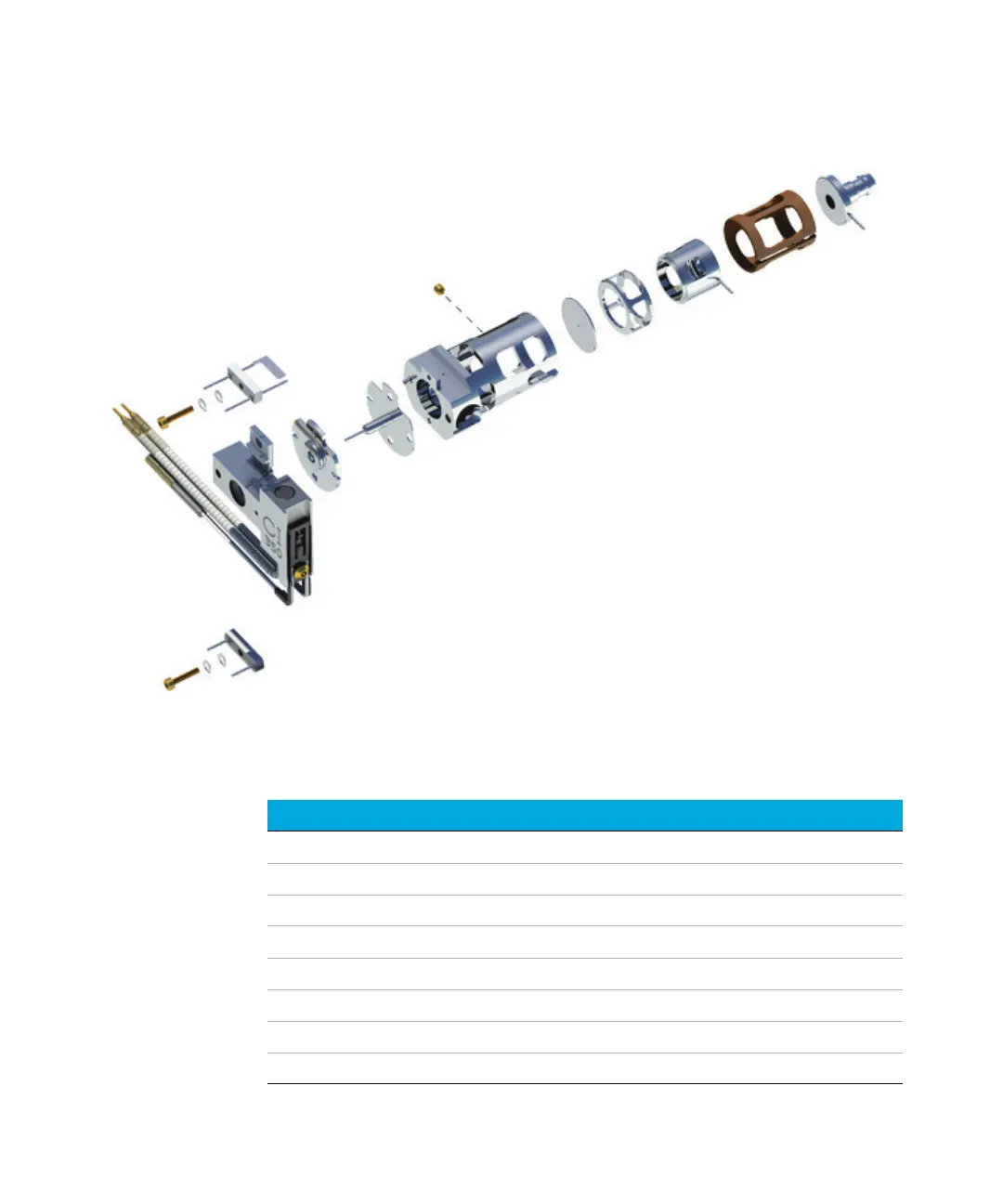

Figure 79. CI source exploded view
1
13
12
2
3
4
5
6
7
8
9
11
10
2
15
14
15
14
Table 20 Parts list for CI source (Figure 79)
Item Description Part number
1 Set screw G1999-20022
2 Filament screw G1999-20021
3 CI repeller insulator G1999-20433
4 CI lens insulator G3170-20540
5 CI drawout cylinder G1999-20444
6 CI drawout plate G1999-20446
7 CI source heater block assembly G3870-60415
8 Entrance lens G7000-20026
