18
Introducing the 81110A/81104A Pulse and Pattern Generators
T
TT
The
he he
he F
FF
Fr
rr
ro
oo
on
nn
nt
t t
t P
PP
Pa
aa
an
nn
ne
ee
el
ll
l

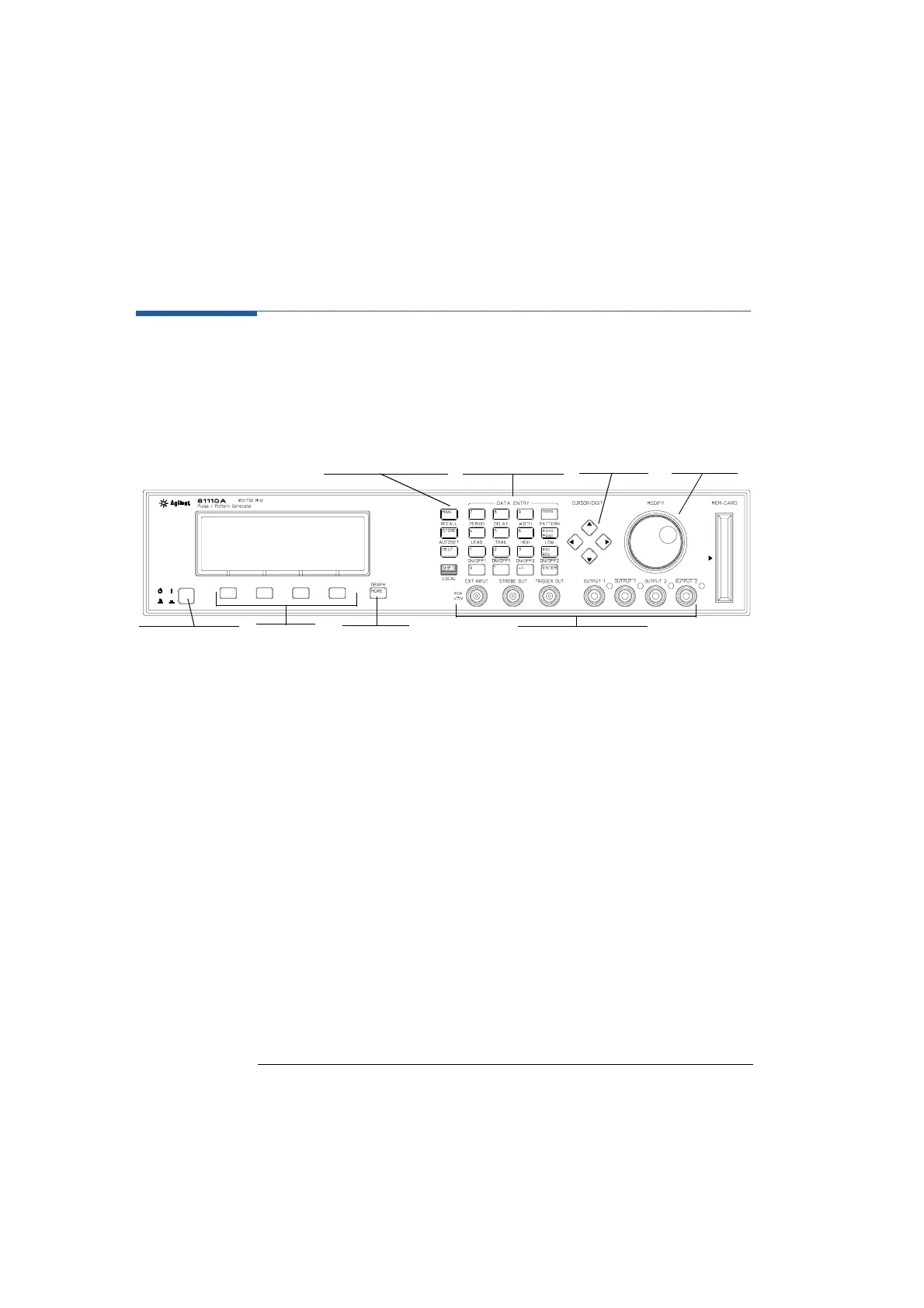

The Front Panel
When used for benchtop testing, the instrument is mainly operated from
the front panel.
The
front panel switch
is used to switch on and off the instrument.
N
NN
NO
OO
OTE
TETE
TE When the front panel switch is off, the instrument is in standby mode.
The instrument is disconnected from the AC line power only by
disconnecting the power cord.
The four keys below the display are the
softkeys
(software-controlled
keys). The current function of each softkey is indicated in the
corresponding box on the display.
Pressing the MORE key changes the softkey layout.
The other keys (
special function keys
,
data entry keys
,
cursor keys
)
and the
rotary knob
are used to select and modify parameters when
operating the instrument (see Operating the 81110A/81104A on
page 20).
Special Function
Keys
Data Entry
Keys
Cursor
Keys
Rotary
Knob
Front Panel
Switch
Softkeys
MORE Key
Inputs and Outputs
