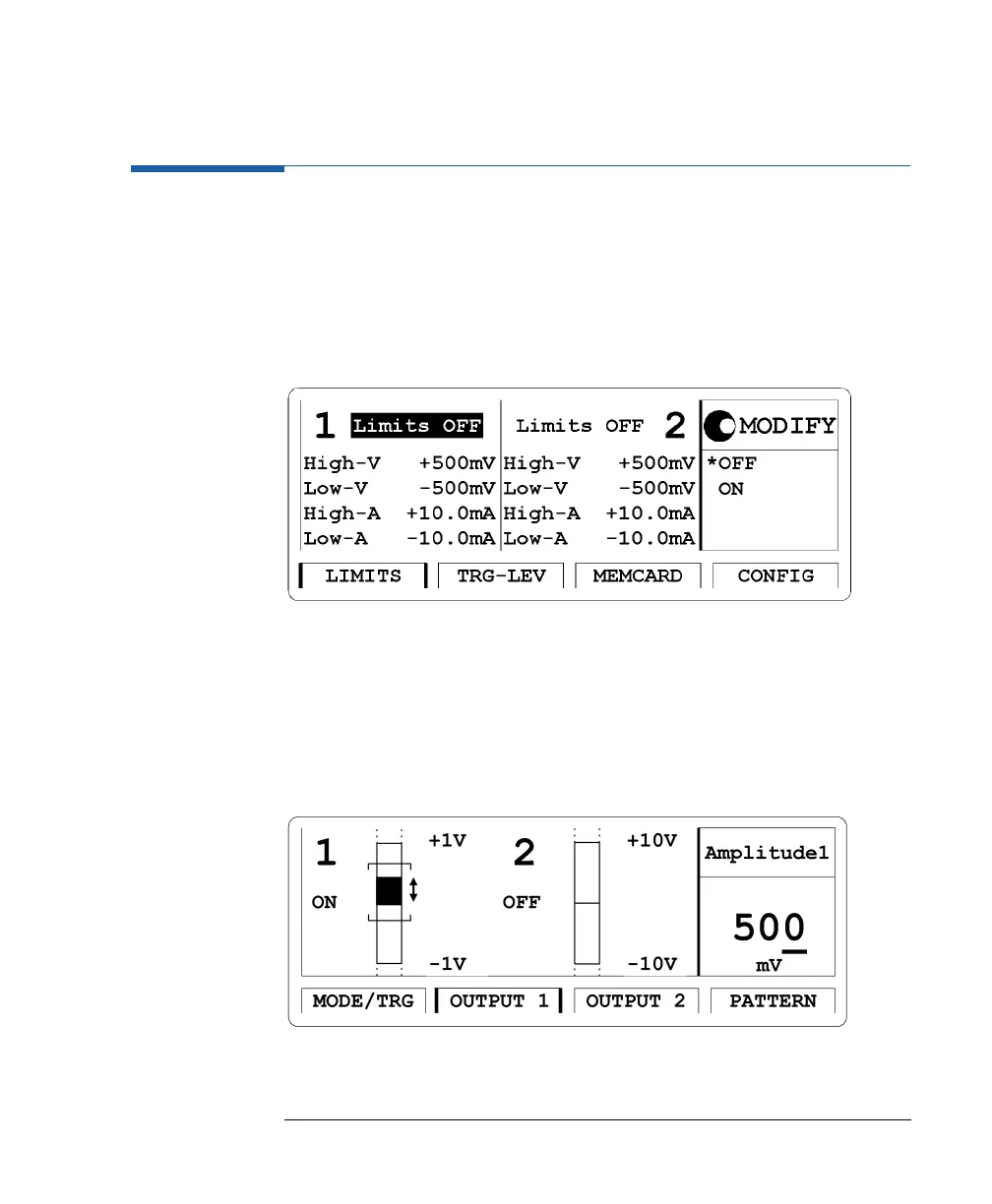

The Limits Screen
Use the Limits screen to set up voltage and current limits for the pulse
level parameters to prevent accidental damage of the device under test.
To access the Limits screen press the LIMITS softkey. If this softkey is
not displayed, press MORE.
After you switch on the limits, the pulse level parameters on the Levels/
Output screens cannot be adjusted outside the ranges specified on the
Limits screen if the output is switched on. Note that because current and
voltage limits apply, the available ranges of the impedance parameters
are also affected.
When output limits are on, the limits are indicated on the LEVELS/
OUTPUT pages in graphics mode. The level bar is scaled accordingly:
