Setting Up a Clock Signal
T
TT
Ta
aa
ask
sksk
sk Set up a continuous clock signal with 50 MHz frequency with PLL
accuracy, a duty cycle of 50 %, 3 ns transition times, a high level of 2.5 V
and a low level of 0 V.
I
II
In
nn
ns
ss
st
tt
tr
rr
ruc
ucuc
uct
tt
ti
ii
ion
onon
ons
ss
s To set the
operating mode and trigger mode
as required:
1
Reset all parameters and modes by pressing SHIFT + STORE (RECALL) + 0.
2

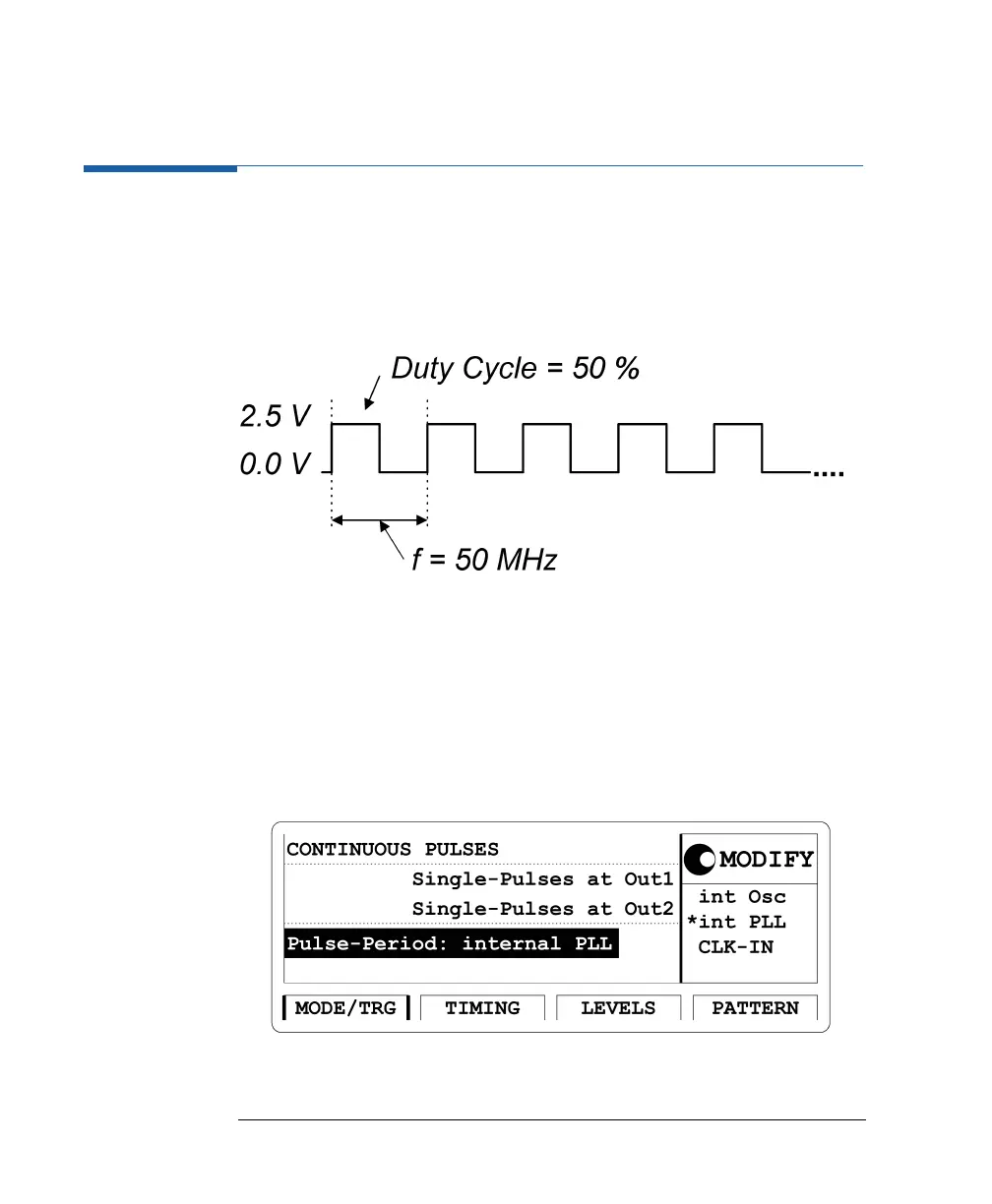

Press the MODE/TRG softkey to enter the Mode/Trigger screen.
Trigger mode CONTINUOUS and operating mode PULSES are
selected by default.
3
Move the entry focus down to select S
INGLE
-P
ULSES AT
O
UT
1 and then
P
ULSE
-P
ERIOD
:
INTERNAL
PLL.
