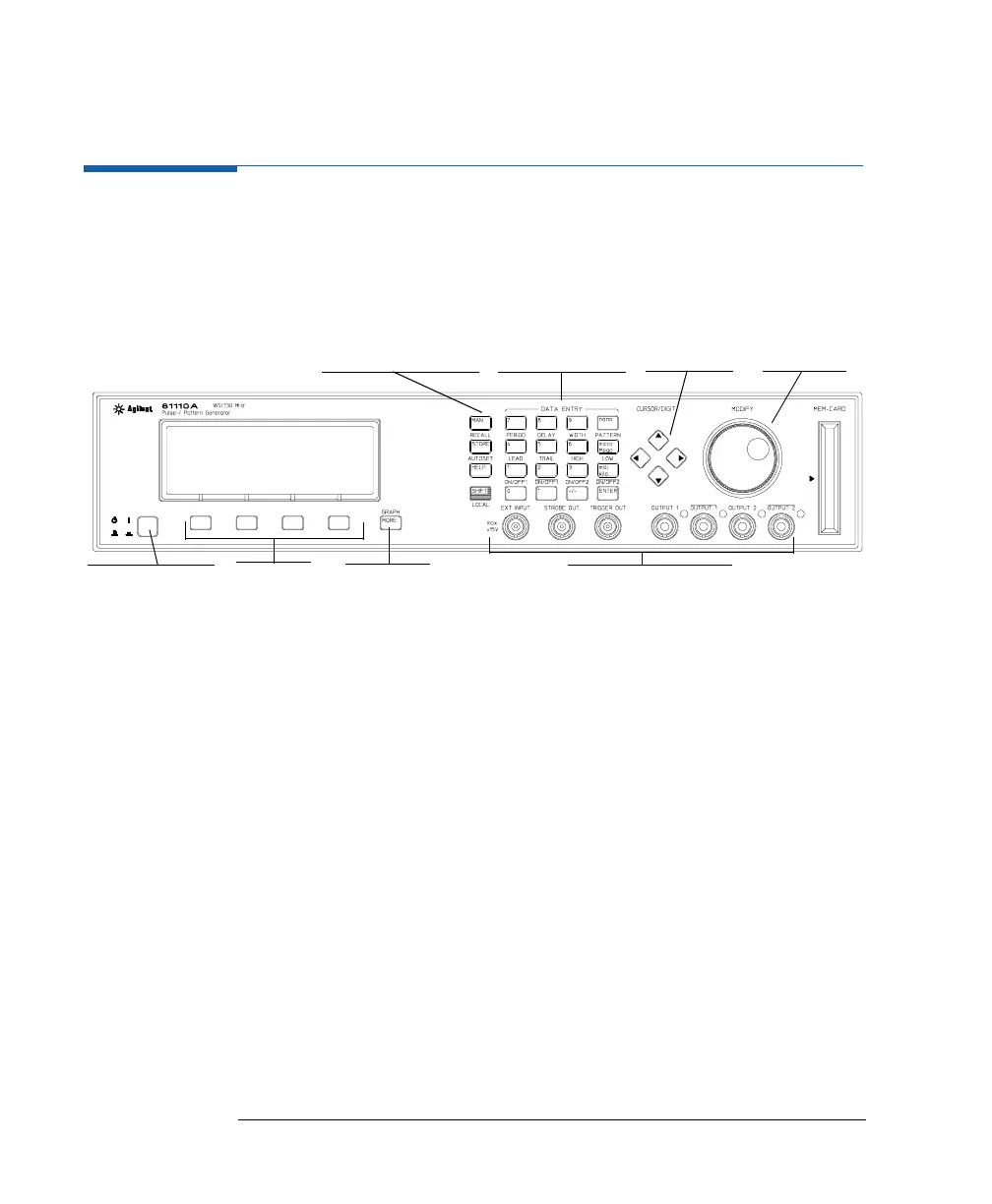

Introducing the 81110A/81104A Pulse and Pattern Generators
W
WW
Wha
haha
hat
t t
t y
yy
you c
ou cou c
ou ca
aa
an
n n
n d
dd
do
o o
o w
ww
wi
ii
it
tt
th
h h
h t
tt
the
he he
he 81110
8111081110
81110A
AA
A/
//
/81104
8110481104
81104A
AA
A
Automated Testing
The 81110A/81104A has the same SCPI conform command structure for
the feature sets identical to the Agilent 8110A. As with the Agilent 8110A,
the new product can be easily integrated into all phases of test system
development such as planning rack integration and test program
generation. These benefits along with the low cost of ownership make
the 81110A/81104A an invaluable instrument in a wide range of technical
applications. Programs designed for the Agilent 81104A can be used
without any changes for the Agilent 81110A with Agilent 81111A
10V/165 MHz outputs.
N
NN
NO
OO
OTE
TETE
TE For the command reference list, refer to the Reference Guide, part
number 81110-91021.
The Agilent 81110A compared to the Agilent 81104A has better accuracy,
up to 330 MHz clock rate, 800 ps typical edges at up to 3.8 V, and a timing
auto calibration.
Upgrade Capability
It is possible to upgrade the instruments with a second channel if only
one channel was originally ordered. There are two output channels
available for the Agilent 81110A. The second channel that is installed
must be the same as channel one.
N
NN
NO
OO
OTE
TETE
TE Do not mix the output channels for the Agilent 81110A.
Mainframe Module Description
Agilent 81104A Agilent 81105A 10V/ max. 80 MHz Output
Channel
Agilent 81110A Agilent 81111A
Agilent 81112A
10V/ max. 165 MHz Output
Channel
3.8V/ max. 330 MHz Output
Channel
