Agilent Technologies 81104A - Gated Pattern Mode

75
Using the 81110A/81104A
Th
ThTh
The
e e
e M
MM
Mod
odod
ode
ee
e/
//
/T
TT
Tr
rr
ri
ii
ig
gg
gg
gg
ge
ee
er
r r
r S
SS
Sc
cc
cr
rr
re
ee
ee
ee
en
nn
n

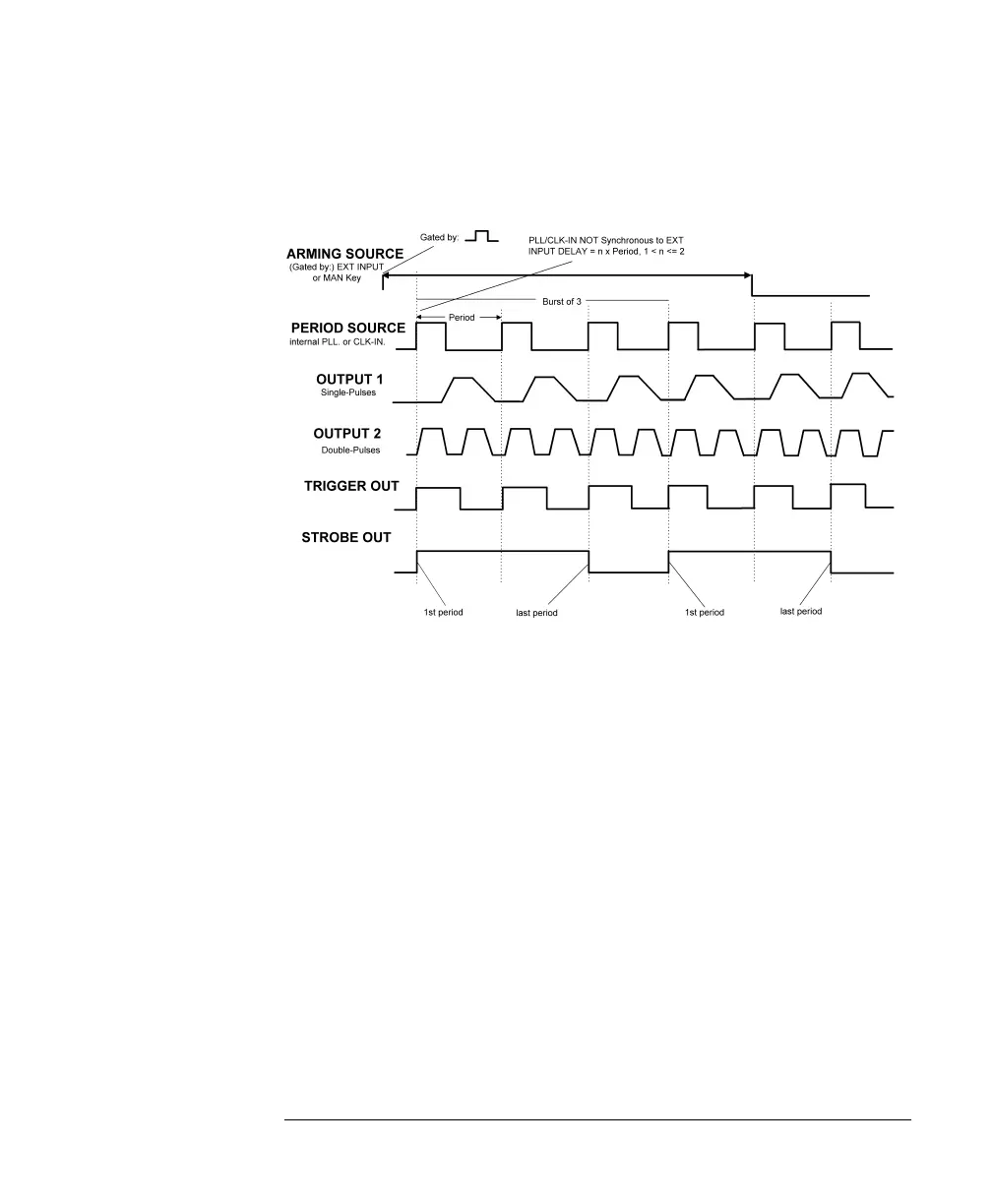

For the second example, either the internal PLL or an external CLK-IN
are used to source the periodboth cannot be triggered synchronously.
Gated Pattern Mode
With trigger mode GATED and pulse mode BURST the instrument shows
the following characteristics:

A pattern of pulses is enabled by (G
ATED BY
) an active level at the
selected arming source.

MAN key on front panel, gated while pressed, released or both.

EXT INPUT (External signal) gated while high or low or both.

On the Pattern screen you can set the pattern length in the range of 2
16384 and program the data values for each output.

TRIGGER OUT marks each pulse period.

STROBE OUT is bit-programmable on the Pattern screen (NRZ
format only).
