Agilent Technologies 81104A - Bit-Editing Window; RZ;NRZ Data Format; Outputs (CH1,CH2) and Strobe Out (STRB)

90
Using the 81110A/81104A
T
TT
The
he he
he P
PP
Pa
aa
att
tttt
tte
ee
er
rr
rn
n n
n S
SS
Sc
cc
cr
rr
re
ee
een
enen
en

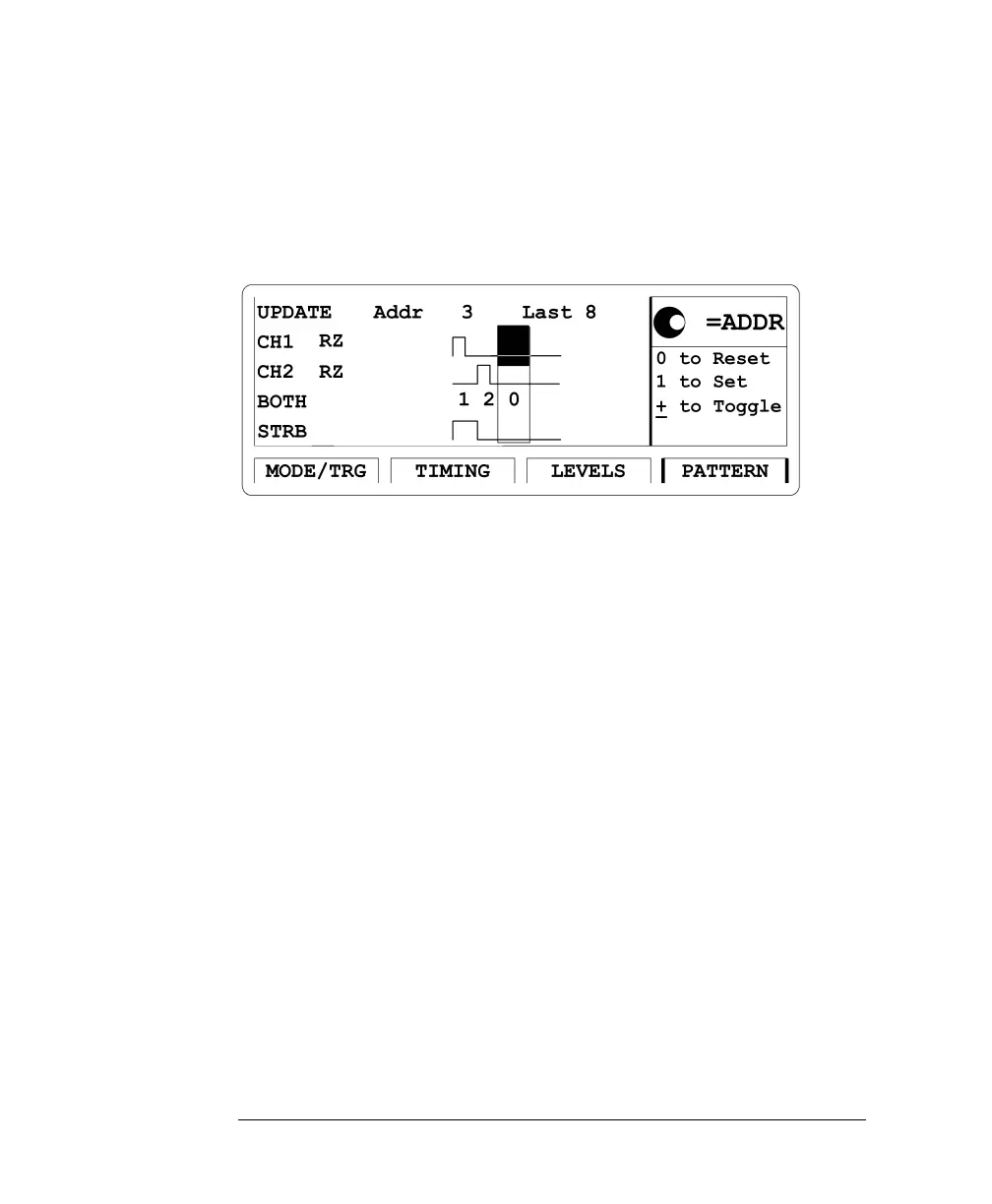

Bit-Editing Window
Move the entry focus into the bit-editing window to edit individual data
bits. The bit-editing window moves automatically one location to the
right for each pattern entered.
While the entry focus is in the bit-edit window you can use the knob to
scroll through the data.
RZ/NRZ Data Format
The data output format RZ or NRZ can be selected for the channels if not
already done in the Mode/Trigger screen
Outputs (CH1,CH2) and Strobe Out (STRB)
Use the data entry keys to edit the data bit at the cursor:

0 set bit to 0, and move the bit-editing window to the next bit.

1 set bit to 1, and move the bit-editing window to the next bit.

+ / toggle bit without moving the bit-editing window.
