Agilent Technologies 81104A - The Trigger-Level Screen; EXT-IN Parameter

96
Using the 81110A/81104A
T
TT
The
he he
he T
TT
Tr
rr
ri
ii
ig
gg
gg
gg
ge
ee
er
rr
r-
--
-L
LL
Le
ee
ev
vv
ve
ee
el
l l
l S
SS
Sc
cc
cr
rr
re
ee
een
enen
en

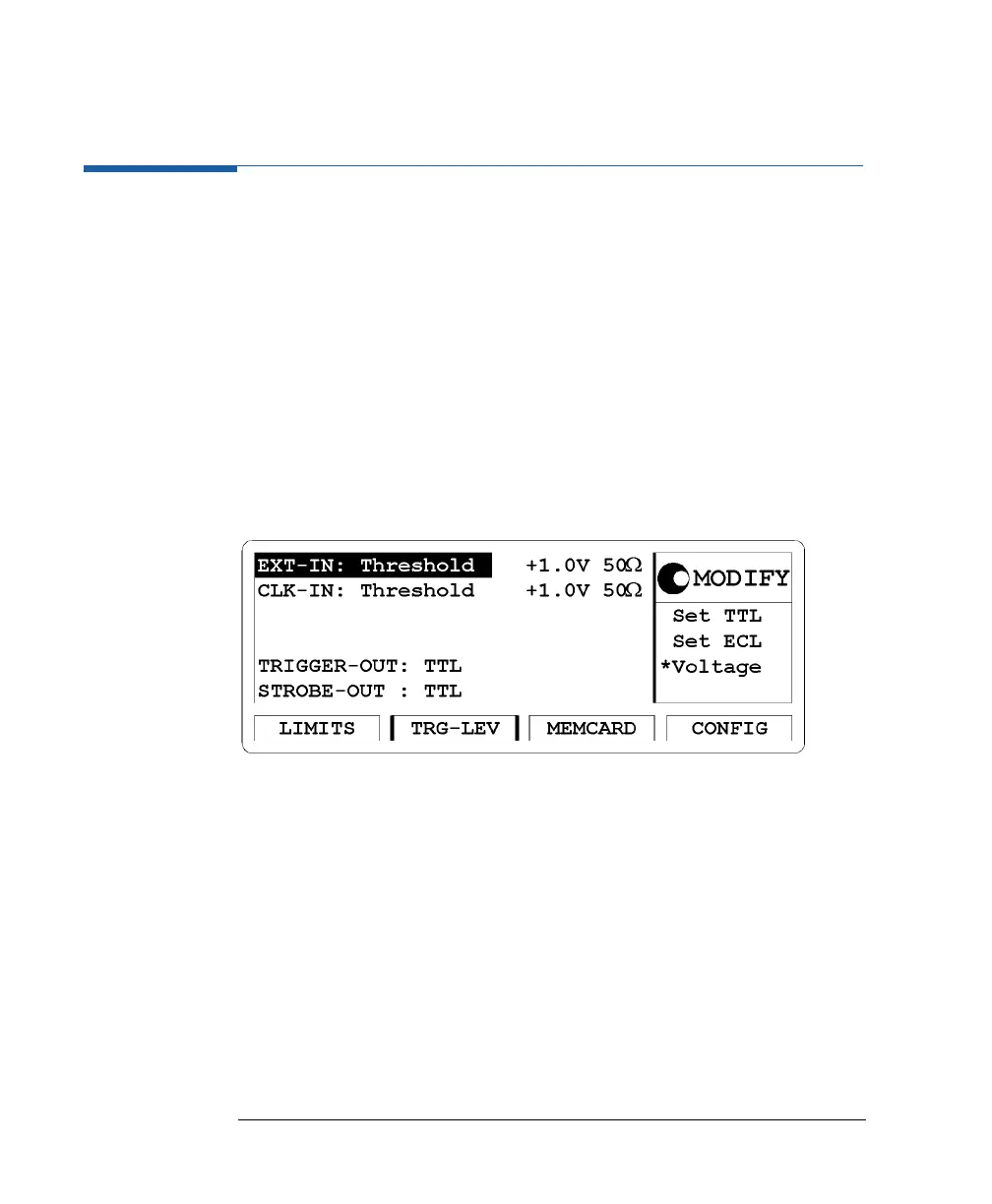

The Trigger-Level Screen
Use the Trigger-Level screen to:

Set the triggering threshold and input impedance for the EXT INPUT
connector.

Set the triggering threshold and input impedance for the CLK IN
connector.

Set the output levels for the STROBE OUT and TRIGGER OUT
connectors.
To access the Trigger-Level screen, press the TRG-LEV softkey. If the
softkey is not displayed, press MORE.
EXT-IN Parameter
Move the entry focus to EXT-IN to quickly set the triggering threshold of
the external input connector (EXT INPUT) to a TTL or ECL compatible
level.

S
ET
TTL
Set the EXT INPUT threshold to +2.5V.
To adjust the threshold, you can move the entry focus to the value.

S
ET
ECL
Set the EXT INPUT threshold to 1.3V.
To adjust the threshold, you can move the entry focus to the value.
