Agilent Technologies 81104A - Normal;Complement Parameter; Separate;Added Outputs Parameter

84
Using the 81110A/81104A
T
TT
The
he he
he L
LL
Le
ee
ev
vv
ve
ee
el
ll
ls
s s
s S
SS
Sc
cc
cr
rr
re
ee
ee
ee
en
nn
n
Normal/Complement Parameter
Switch the OUTPUT between N
ORMAL
and C
OMPLEMENT
modes (in text
mode only).
Separate/Added Outputs Parameter
N
NN
NO
OO
OTE
TETE
TE The channel add option is not available for the Agilent 81110A with
Agilent 81112A 3.8 V 330 MHz outputs installed. This parameter is only
available in text mode, and if you have two output channels fitted.
Switch A
DDED
output mode on and off.

S
EPARATE
O
UTPUTS
Output 1 and output 2 operate as entirely separate output channels.

A
DDED AT
O
UTPUT
1

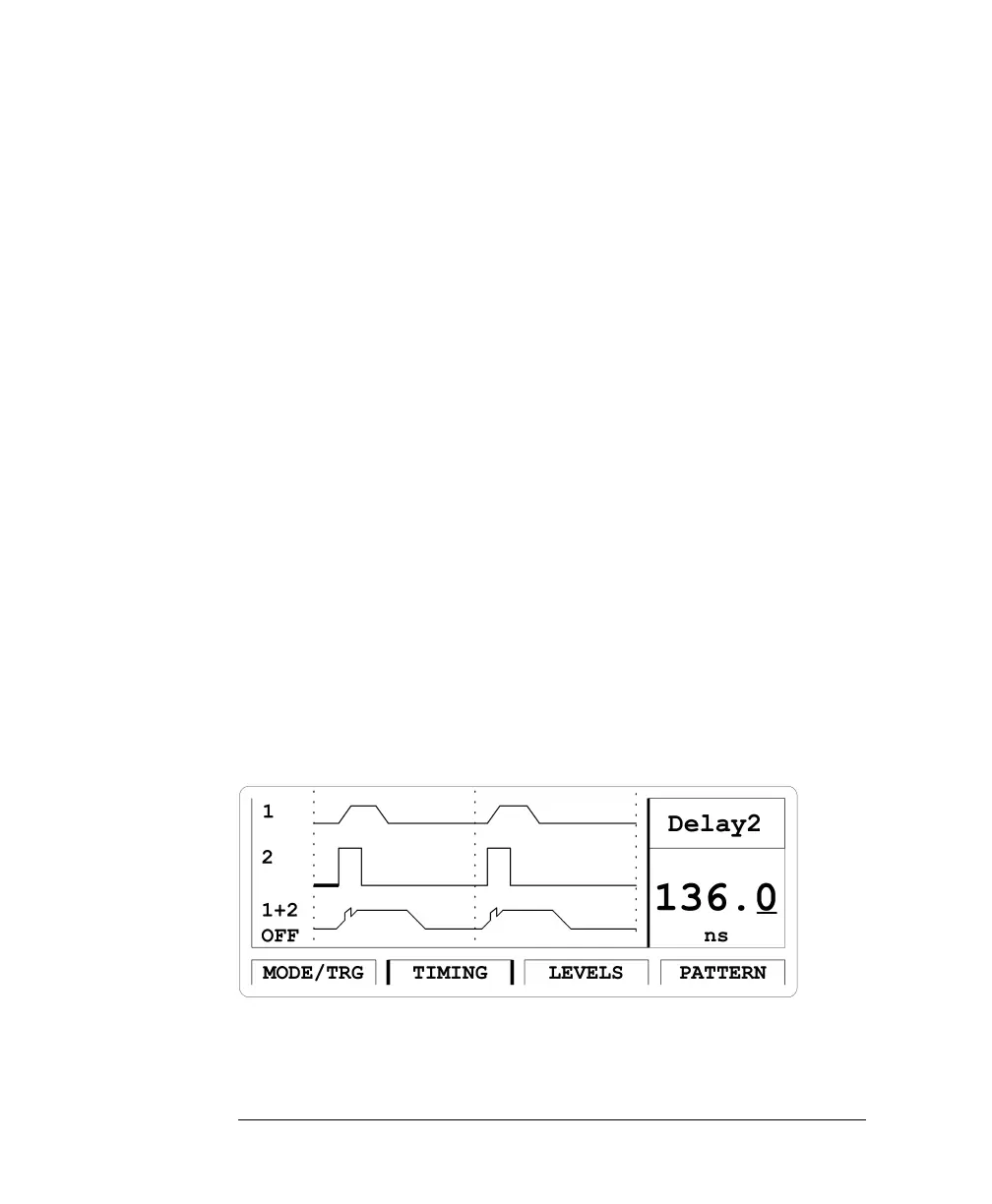

Output 1 and output 2 signals are added together at the output 1
connector. The output 2 connector is no longer used. You can use this
mode to create complex pulse waveforms as shown in the figure
below.
N
NN
NO
OO
OTE
TETE
TE By using the pattern mode you can code 3 or 4-level codes, or place spike
pulses from output 2 on particular data pulses on output 1, for example.
N
ORMAL
Pulse leading edge rises from low to high level, trail-
ing edge falls from high to low level.
C
OMPLMNT
Pulse leading edge falls from high to low level, trailing
edge rises from low to high level
