You can edit both output channels together in the BOTH pattern. This
makes it easy to enter data for 3 or 4-level codes.
The following table shows the coding to be used when editing both
output channels together.

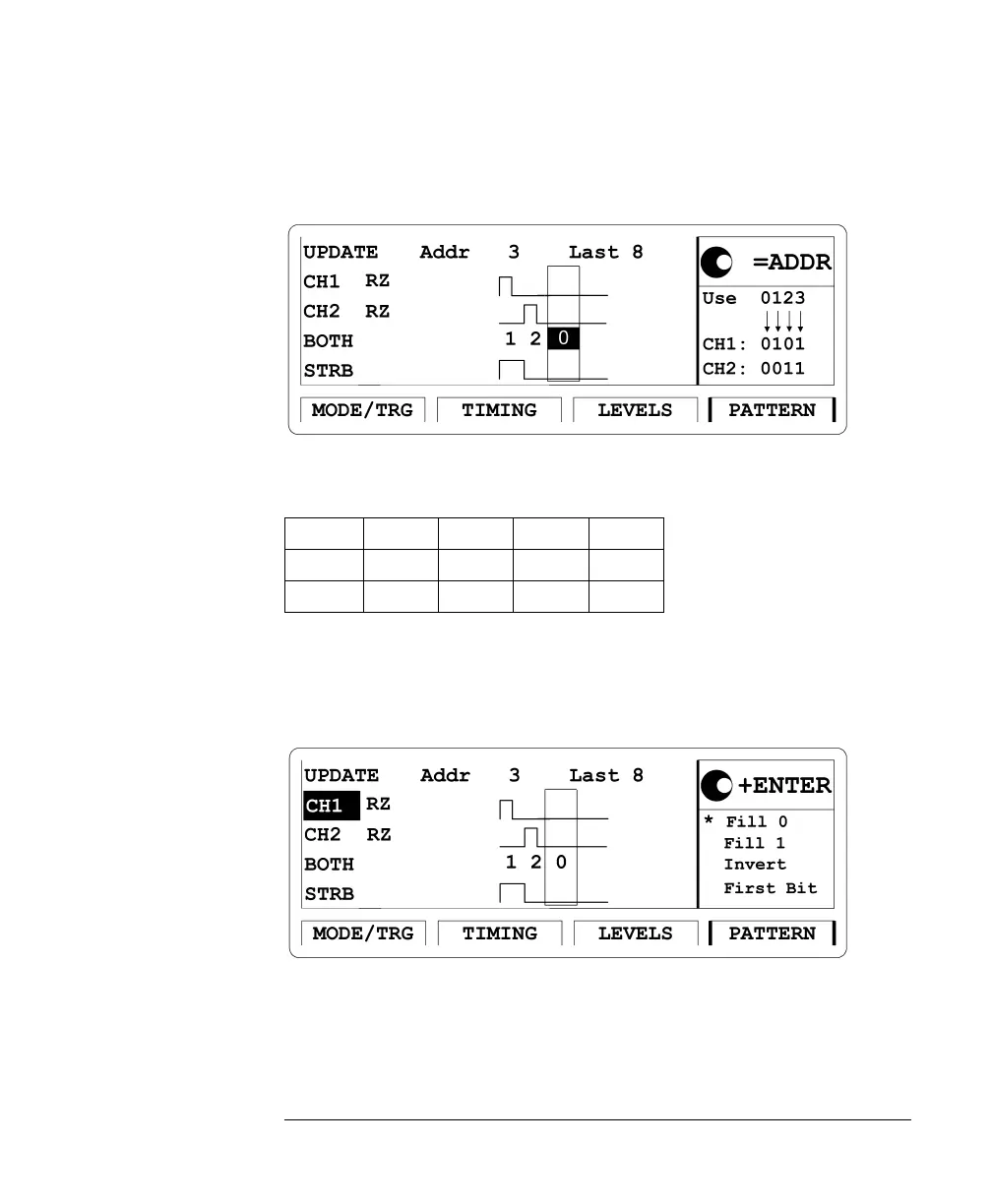

Block Editing Functions (CH1/CH2/BOTH/STRB)
Move the entry focus onto the CH1, CH2, BOTH or STRB at the left hand
side of the screen to use the block editing functions.
Select the function using the MODIFY knob. Press ENTER confirm your
selection.
CH1
0101
CH2
0011
B
OTH
0123
