Triggered Pulses Mode

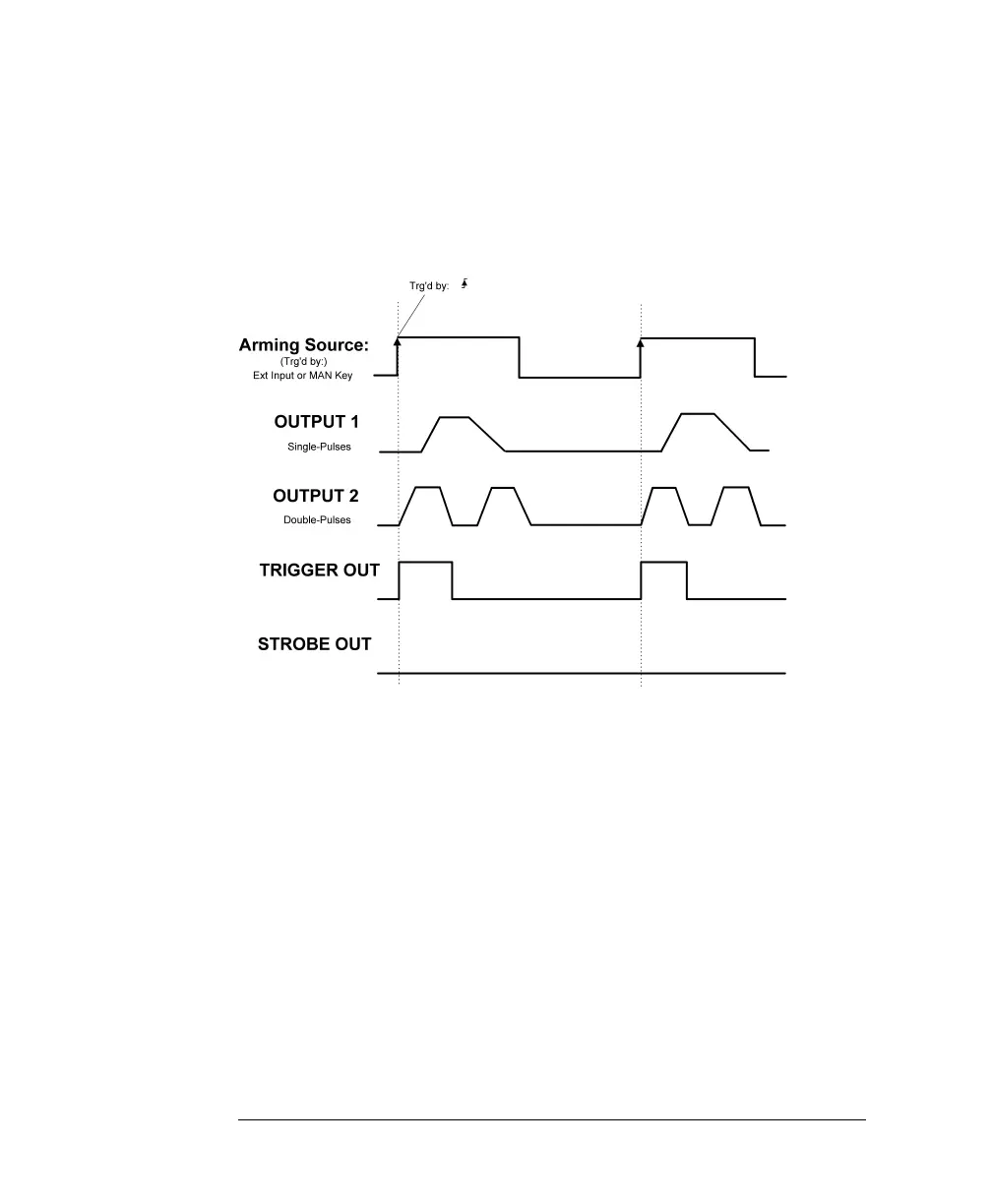

The following figure shows typical timings for trigger mode T
RG
'
D BY
and
pulse mode PULSES.
C
CC
Ch
hh
ha
aa
ar
rr
ra
aa
ac
cc
ct
tt
te
ee
er
rr
ri
ii
is
ss
st
tt
ti
ii
ic
cc
cs
ss
s

Single pulse periods are triggered by an active edge at the selected
arming source

MAN key on front panel, triggered by press or release or both.

EXT INPUT (External signal) triggered by rising or falling or both
edges.

TRIGGER OUT marks each pulse period.
