52
Getting Started
S
SS
Se
ee
ett
tttt
tti
ii
in
nn
ng
g g
g U
UU
Up a
p a p a
p a D
DD
Dua
uaua
ual
l l
l C
CC
Cl
ll
loc
ococ
ock
k k
k S
SS
Si
ii
ig
gg
gn
nn
na
aa
al
ll
ls
ss
s

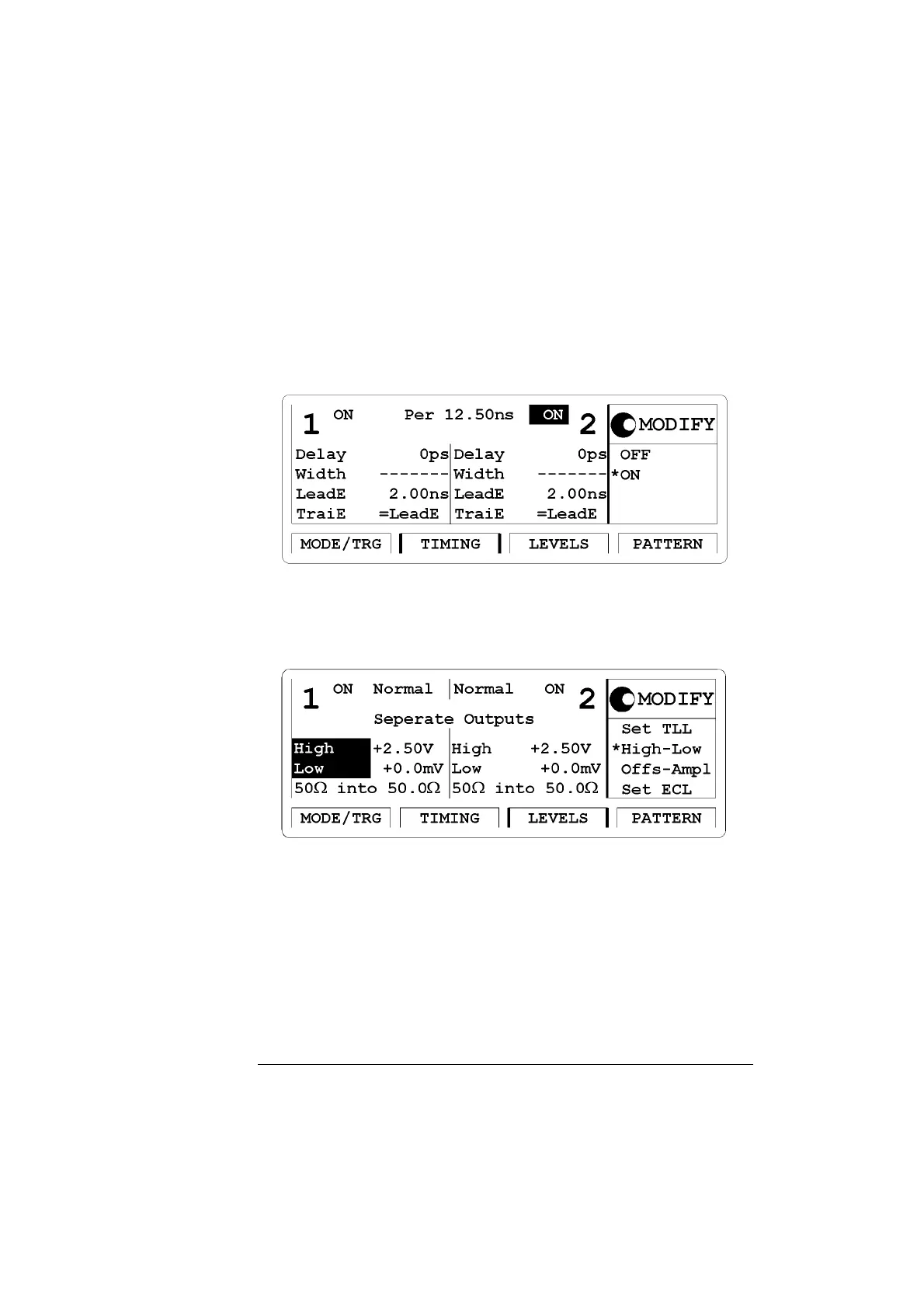

To set the timing parameters as required:
1 Press the TIMING softkey.
2 Switch ON both outputs.
Set the period to 12.5
NS
.
To set the levels parameters as required:
1 Press the LEVELS softkey.
2 Set high levels of 2.50 V and low levels of 0.0
M
V for both outputs.
N
NN
NO
OO
OTE
TETE
TE The TIMING and LEVELS screens for Agilent 81110A with
Agilent 81112A 3.8V/330 MHz outputs look different to the screens shown
here. This instrument has no channel addition, fixed source impedance
of 50 Ω, assumes 50 load impedance and has differential outputs.
