6 Move down and select T
RG

D BY
: PLL → P
ER
and set the burst
repetition to 5.000 µs.

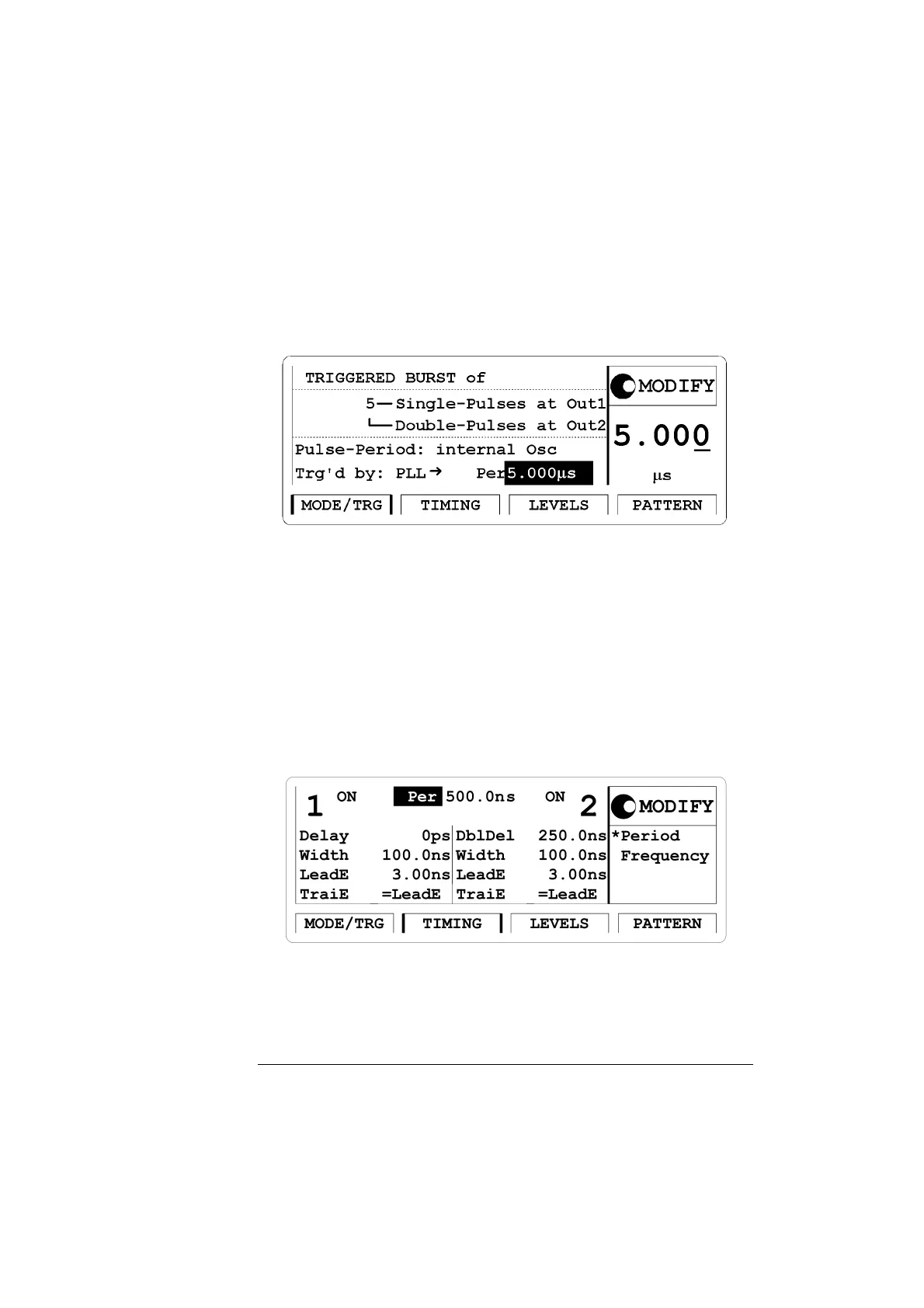

To set the timing parameters as required:
1 Press the TIMING softkey.
2 Switch the output 1 and the output 2 ON.
3 Enter a pulse period of 500 ns. F
4 For output 1 enter a width of 100
NS
, a leading edge of 3 ns and set
the trailing edge to T
RAIL
E = L
EAD
E.
5 For output 2 enter a double pulse delay of 250
NS
, a width of 100
NS
, a
leading edge of 3
NS
and set trailing edge to T
RAIL
E=L
EAD
E.
